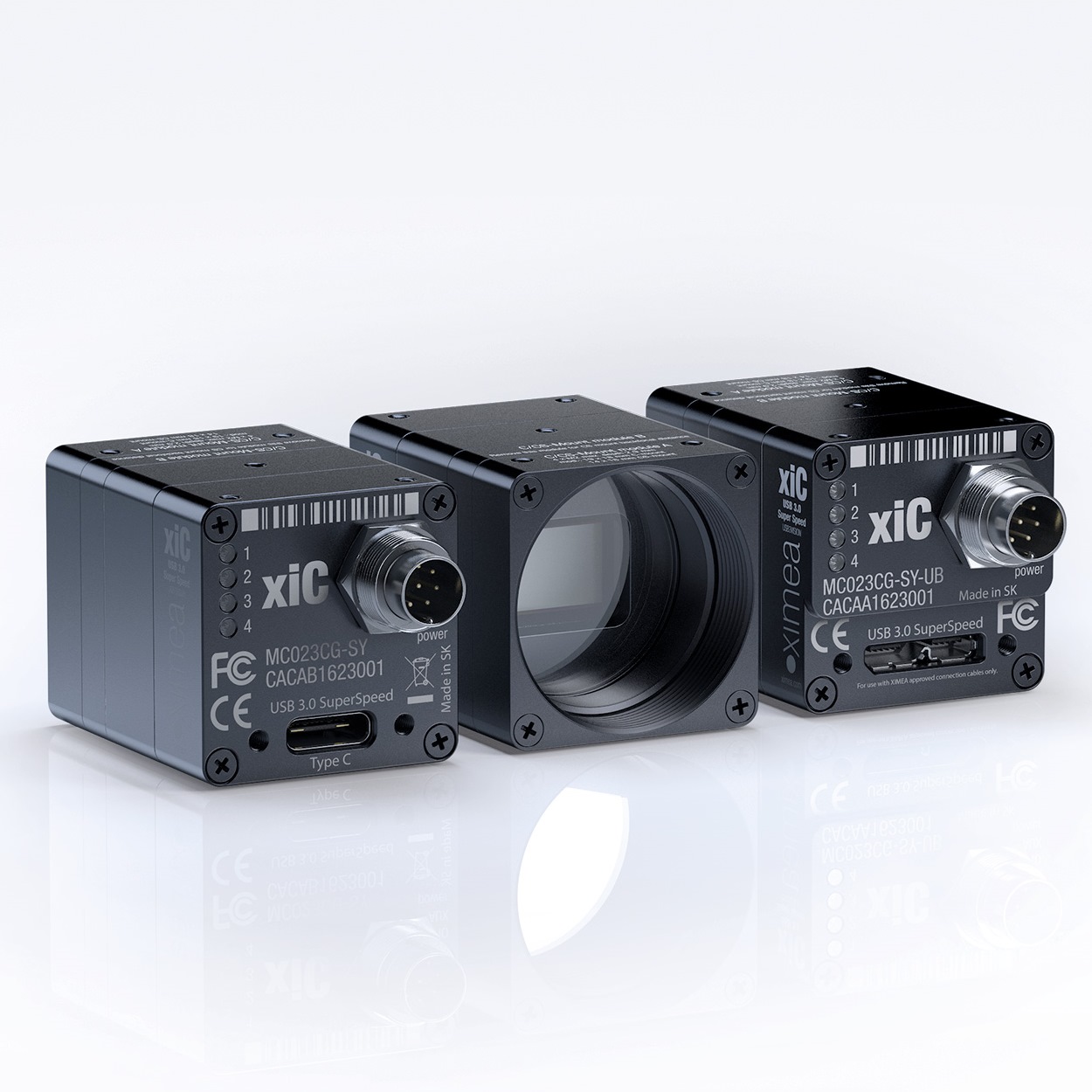

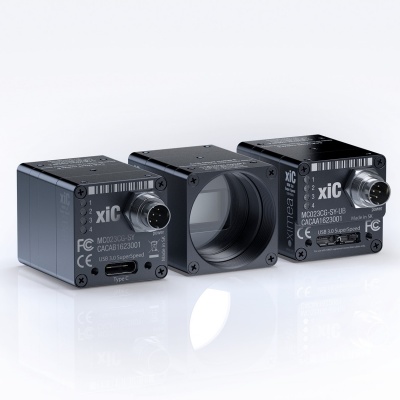

Sony IMX255 USB3 mono industrial camera

Sony IMX255 USB3 mono industrial camera
  • Small dimensions: 26 x 26 x 33 mm, 38 grams
  • 8.9 Mpix at 43 fps (up to 95 Fps with xiX)
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant



4K camera Applications: In-situ optical inspection camera, fast process capturing, e.g. Golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Automotive crash testingOCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics



8.9 MP Monochrome CMOS Camera with USB 3.1 Gen 1 Interface.

Check conditions for the model version with Sony IMX267 sensor.

Brochure



USB3 Zone



Manual



CONTACT SALES


Specifications:
Part Number MC089MG-SY
Resolution 8.9 MP 4112 x 2176
Frame rates 43 fps
Sensor type CMOS Matrix B/W
Sensor model Sony IMX255
Sensor size 1"
Sensor active area 14.2 x 7.5 (Diagonal mm) 16.1
Readout Method Global shutter
Pixel size 3.45 µm
ADC -Bits per pixel 8, 10, 12
Data interface USB 3.1 Gen 1
Dynamic range 70.5 dB
Full Well Capacity 9800 e-
On-chip binning 1x2, 2x2 (and Skipping)
Signal to noise ratio 40.3 dB
Exposure range 1µs to 30sec, in steps of 10.54µs
Data I/O GPIO IN, OUT
Power consumption 3.25 Watt
Lens mount C or CS Mount
Weight 38 grams
Dimensions WxHxD 26 x 26 x 33 mm
Operating temperature 50 °C
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
