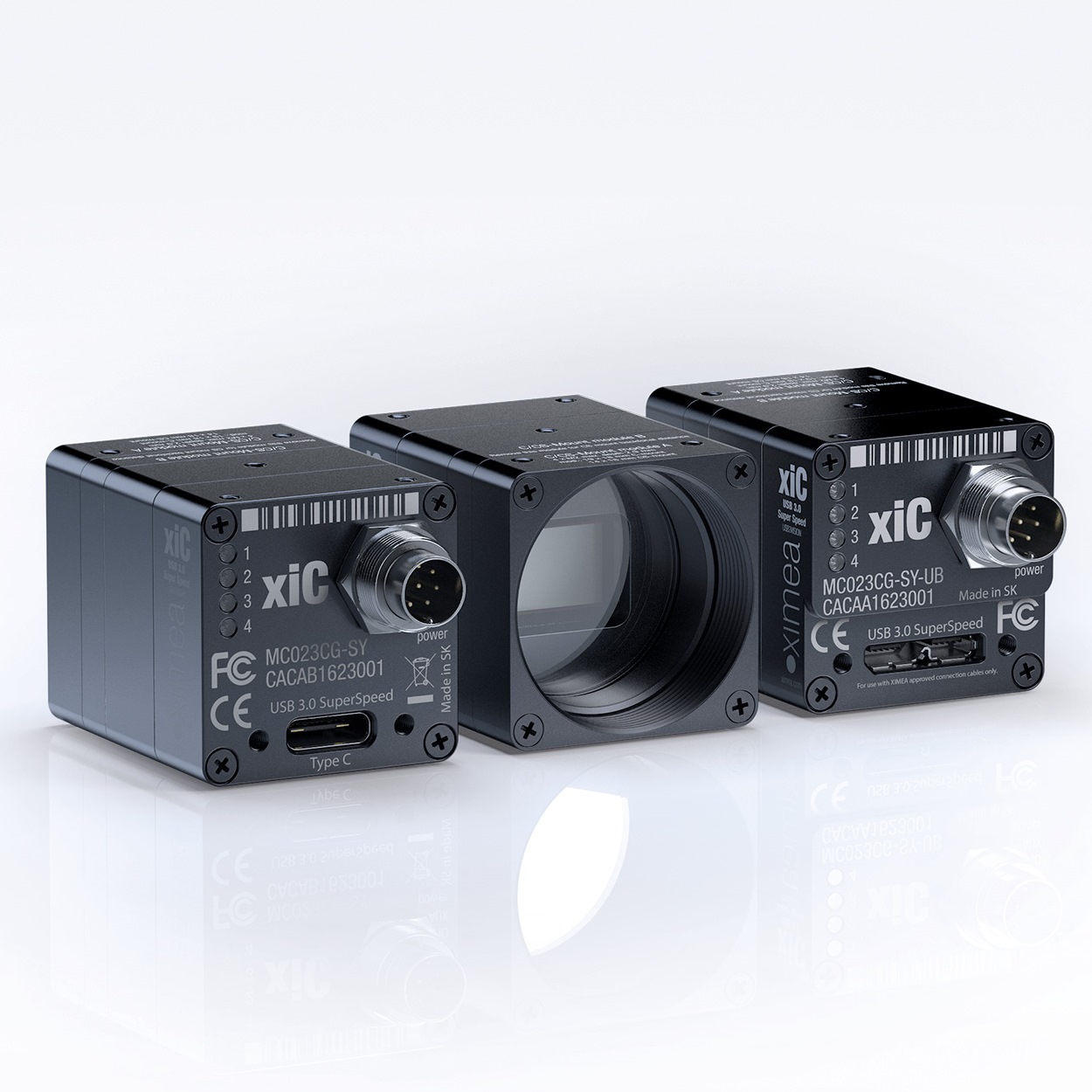

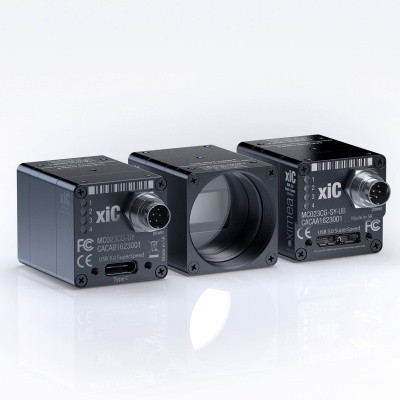

MC023CG-SY

MC023CG-SY
  • Small dimensions: 26 x 26 x 33 mm, 38 grams
  • 2.3 Mpix at 165 fps @8bit
  • With flat ribbon flex cable (xiX) ideal for Embedded vision systems
  • USB3 Vision Compliant



2.3 MP Color CMOS Camera with USB 3.1 Gen 1 Interface



Full HD camera Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, hockey, tennis, basketball, baseball, ping pong, Intelligent Transportation Systems (ITS), OCR/ OCV, Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Automotive crash testing3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel and PCB inspection, Dental, Kiosks, Security, Biometrics, VR and AR (virtual or augmented reality), Autonomous drones - UAV (Unmanned Aerial Vehicles), ROV (Remotely Operated Vehicles)



NOTE: Please check MOQ and conditions for the version with Sony IMX249

Brochure



Accessories



USB3 Zone



Manual



CONTACT SALES


Specifications:
Part Number MC023CG-SY
Resolution 2.3 MP 1936 x 1216 pixels
Frame rates 165 fps
Sensor type CMOS RGB Bayer Matrix
Sensor model Sony IMX174 LQJ-C
Sensor size 1/1.2"
Sensor active area 11.3 x 7.1 (Diagonal 13.4 mm)
Readout Method Global shutter
Pixel size 5.86 µm
ADC -Bits per pixel 10, 12
Data interface USB 3.1 Gen 1
Dynamic range 71.7 dB
Full Well Capacity 30 500 e-
Signal to noise ratio 45 dB
Exposure range 19µs to 30sec, in steps of 4.96µs
Data I/O GPIO IN, OUT
Power consumption 2.4 Watt
Lens mount C or CS Mount
Weight 38 grams
Dimensions WxHxD 26 x 26 x 33 mm
Operating temperature 50 °C
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
Last Updated: 20 August 2019, 08:29
