X-ray camera with 15.1 Mpix Gpixel GSENSE5130 sCMOS 21 x 12 mm sensor and USB3 interface - 1

X-ray camera with 15.1 Mpix Gpixel GSENSE5130 sCMOS 21 x 12 mm sensor and USB3 interface - 2

Discontinued

MJ150XR-GP-FA-GO

X-ray camera with 15.1 Mpix Gpixel GSENSE5130 sCMOS 21 x 12 mm sensor and USB3 interface

Name: GPIXEL GSENSE5130 USB3 x-ray gadox xiray sCMOS camera
SKU: 3854

Product statusEnd of Life

Sensor vendorGpixel

Sensor modelGSENSE5130

Sensor technologysCMOS

Shutter typeRolling shutter, Global reset release

Frame rate17 FPS

Overview Variants Accessories Links and downloads Contact

Overview

Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.

PRECISE

High resolution sCMOS and CMOS sensors up to 151 Mpix with large FOV (field of view) and 16 bits readout

ADAPTABLE

Various modes for best results in FWC, dynamic range, noise and speed.

RELIABLE

Radiation energy range from 5 keV up to 150 keV (model dependent) with beryllium entrance window. Radiation hardened with the option to increase the range up to 250 keV.

CUSTOMIZABLE

Modify the Scintillator material, Phosphor thickness or other parameters according to your needs for x-ray energy, resolution, field of view, pixel size and more

Sensor properties
Resolution	15.1 MPix
Sensor resolution	5120 x 2968
Sensor vendor	Gpixel
Sensor model	GSENSE5130
Sensor type	X-RAY
Sensor technology	sCMOS
Sensor size	APS-C
Sensor active area	21 x 12 mm
Sensor diagonal	25.2 mm
Pixel size	4.25 µm
Shutter type	Rolling shutter, Global reset release

Camera properties
Frame rate	17 FPS
Bits	12, 2 x 12 bits
On-chip downsampling	16x8
Interface	USB3
Data interface speed	5 Gbit/s
Data connector type	USB3 Type-C
GPIO count	Inputs: 1, Outputs: 1
Exposure minimum	24 µs
Exposure maximum	30 s
Power consumption	4.2 Watt
Heat dissipation	Optional Heatsink, Fan air cooling
Sensor cooling	Yes
Special features	HDR, Dual ADC

EMVA 1288 results
Dynamic range	77 dB
Full well Capacity	16500 e-
Readout noise	1.18 e-
Signal to noise ratio	42 dB
Gain analog max	19 dB

Mechanical properties
Lens mount	No mount
Enclosure type	Standard housing

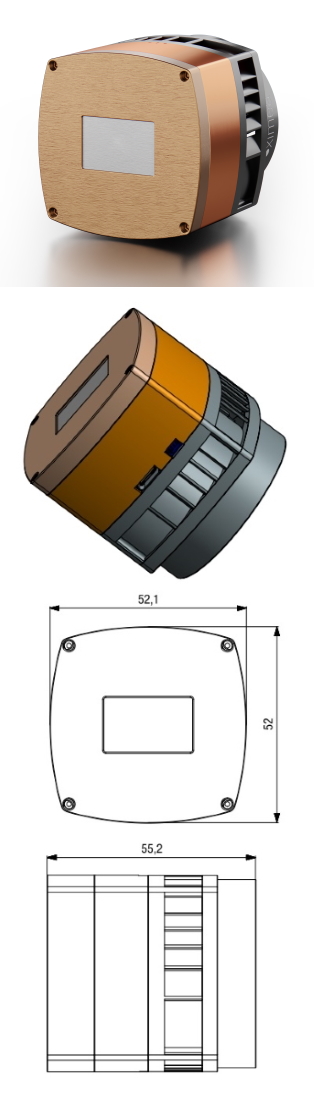

Physical dimensions (WHD)	52.1 x 52.1 x 54 mm
Mass - weight	405 gram
Ambient operating temperature	0 - 50 °C
Storage Temperature	-25 - 60 °C

Feature set for xiRay family

Technology
Sensor technology	CCD, sCMOS and CMOS
Acquisition modes	Global shutter and Rolling shutter
Sensor version	Taped glass - sensor without cover glass
Magnification options	1:1 and 2:1 or higher possible with Taper
Digital Output	12, 14, 16 bit RAW pixel data digitization
Scintillator material	Phosphor composition P43, Gd2O2S:Tb, Thickness 22 μm or GadOx:Eu with 10 μm or CsI with 150 μm
Fiber optic plate	FOP thickness 8 mm; 10 mm; 35 mm
Default Interface	USB 3.1 Gen1 standard Type-C
Optional interface	Thunderbolt 3 and PCI Express standard cable connector
General purpose I/O	1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable
Synchronization	Hardware and software trigger input, exposure strobe output, busy output
Power requirements	Bus powered via USB3 interface with PD - Power delivery for Cooling
Cooling	Thermoelectric Peltier cooling and fan or water module
Rad-hard	Radiation hardened fiber optic to avoid browning effect
Support of Energy levels	X-ray tube range from 7 to 250 keV - may vary based on model

Processing
Partial image readout	ROI / AOI (region / area of interest); Skipping and Binning modes supported
Image processing	Host based sharpening; lookup table (LUT); saturation; white balance
Hot pixel correction	On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments	Auto white balance; auto gain; auto exposure; HDR mode (High Dynamic range)
Flat field corrections	Host assisted pixel level shading and lens corrections
Signal conditioning	Programmable debouncing time

Software
SDK / API	Programmable with C++ and C#, Python
Software support	one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs	CamTool viewer
Firmware updates	Field firmware update through xiCOP tool

Computer
Operating systems	Windows 10 (x86 and x64), Windows 7 SP1 (x86 and x64), Linux Ubuntu, MacOS
Minimum host hardware	Intel i3 3.0GHz, +2GB RAM memory, NVIDIA or Radeon 128MB, PCIe x4 Gen 3 slot, USB3 with PD

Regulations
Environment side	Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity	CE, FCC, RoHS, WEEE, GenICam/GenTL, USB 3.0 SuperSpeed

Utilization of xiRay cameras for X-ray imaging Applications

Life science

Micro and Nano CT (Computed tomography), Radiography, Medical and Biology research, Light sheet microscopy (LSFM), Small animal and Cell structure

Material analysis

Scanning and Transmission electron microscopy, Small molecule and protein Crystallography, Spectroscopy, Archeology, Minerology, Neutron imaging

Industrial

Solar panel and cell inspection, industrial PCB analysis (BGA - Ball grid array), Energy research, Phase contrast imaging, Structural engineering, Fluid dynamics

Diffraction and scattering

Small and wide angle X-ray scattering (SAXS, WAXS), X-ray diffraction and Fluorescence (XRD, XRF), Powder diffraction, Coherent diffraction
