SMALL

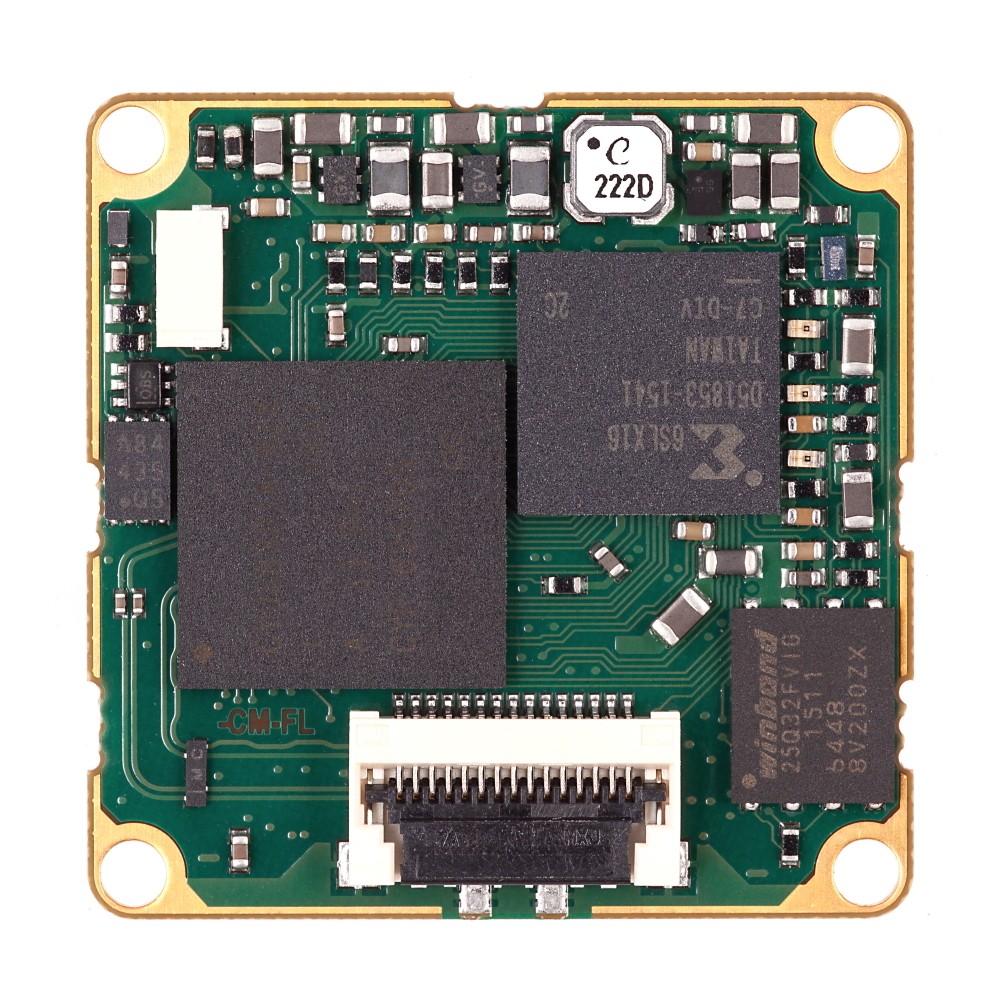

Only 26 x 26 mm small, single PC board electronics. Fits into places where other cameras can’t
Discontinued
MQ003CG-CM-BRD
Industrial camera with 0.3 Mpix Color CMOSIS CMV300 Global shutter sensor and USB3 interface
Specifications
Product statusEnd of Life
Sensor vendorCMOSIS
Sensor modelCMV300
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate500 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
FAST
SuperSpeed USB3. High speed, high frame rate: around 1000 FPS at VGA and 90 FPS at 4 Mpix resolutions
WIDE CHOICE

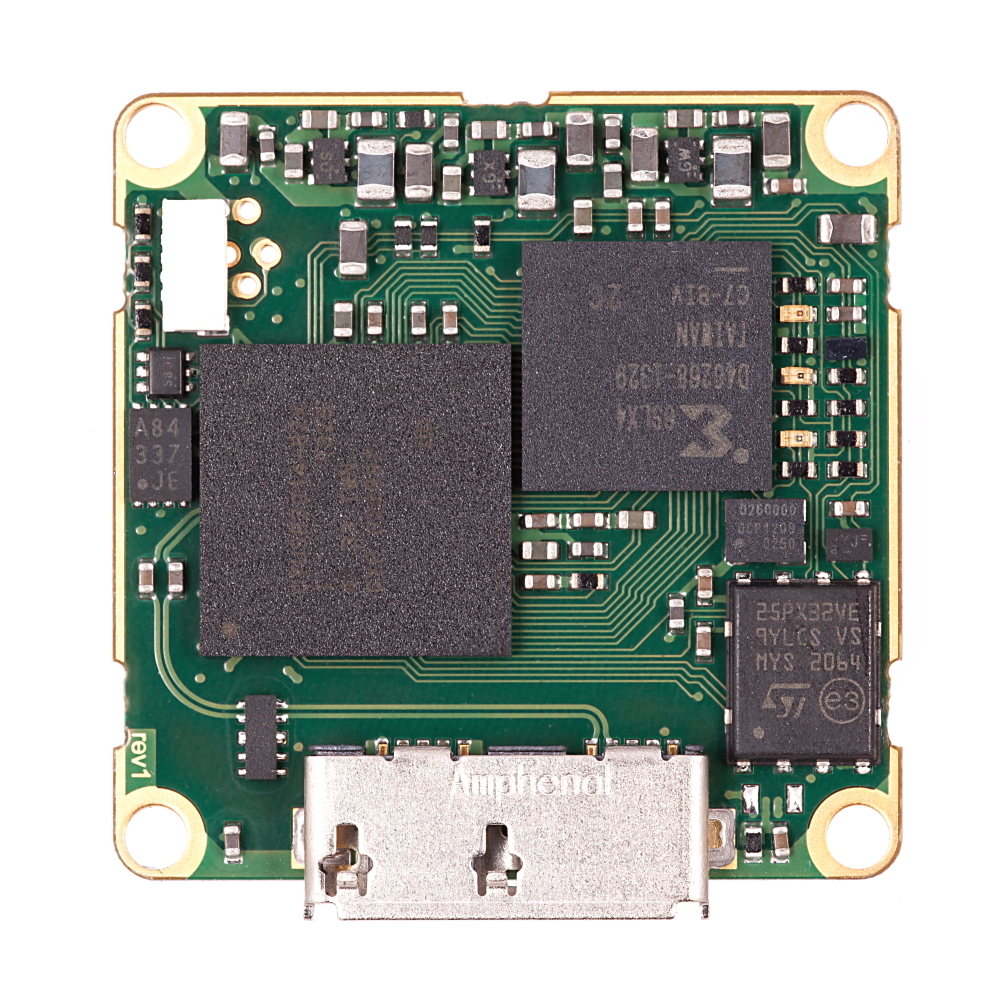

Global shutter CMOS sensors, up to 4.2 Mpix resolution, b/w, color and NIR extended. Available as Board level and with different connector types
RELIABLE
Designed for 24/7, 365 days operations throughout multiple years. Low TCO and fast ROI, easy integration into OEM solutions
|

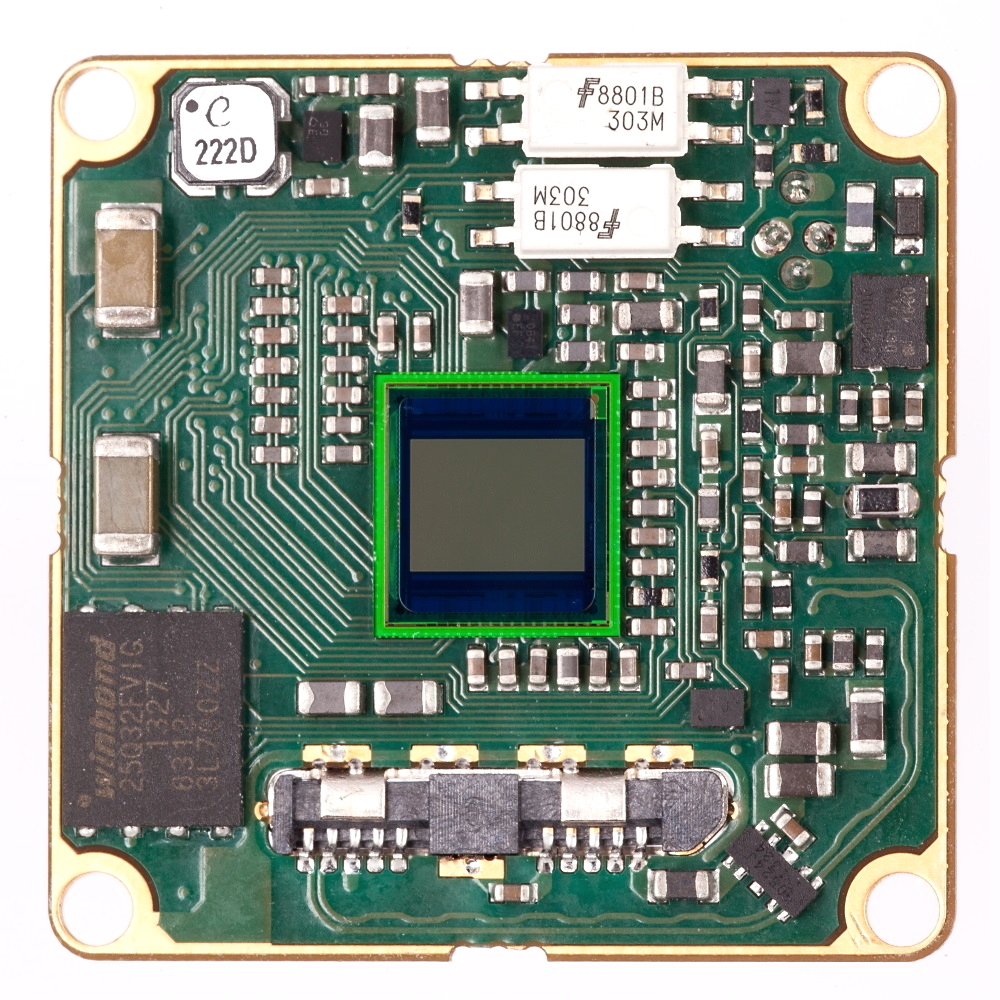

Sensor properties
|
||
| Resolution | 0.3 MPix | |
| Sensor resolution | 648 x 488 | |
| Sensor vendor | CMOSIS | |
| Sensor model | CMV300 | |
| Sensor type | Color | |
| Sensor technology | CMOS | |
| Sensor size | 1/3" | |
| Sensor active area | 4.8 x 3.6 mm | |
| Sensor diagonal | 6 mm | |
| Pixel size | 7.4 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 500 FPS | |
| Bits | 12 bits | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |

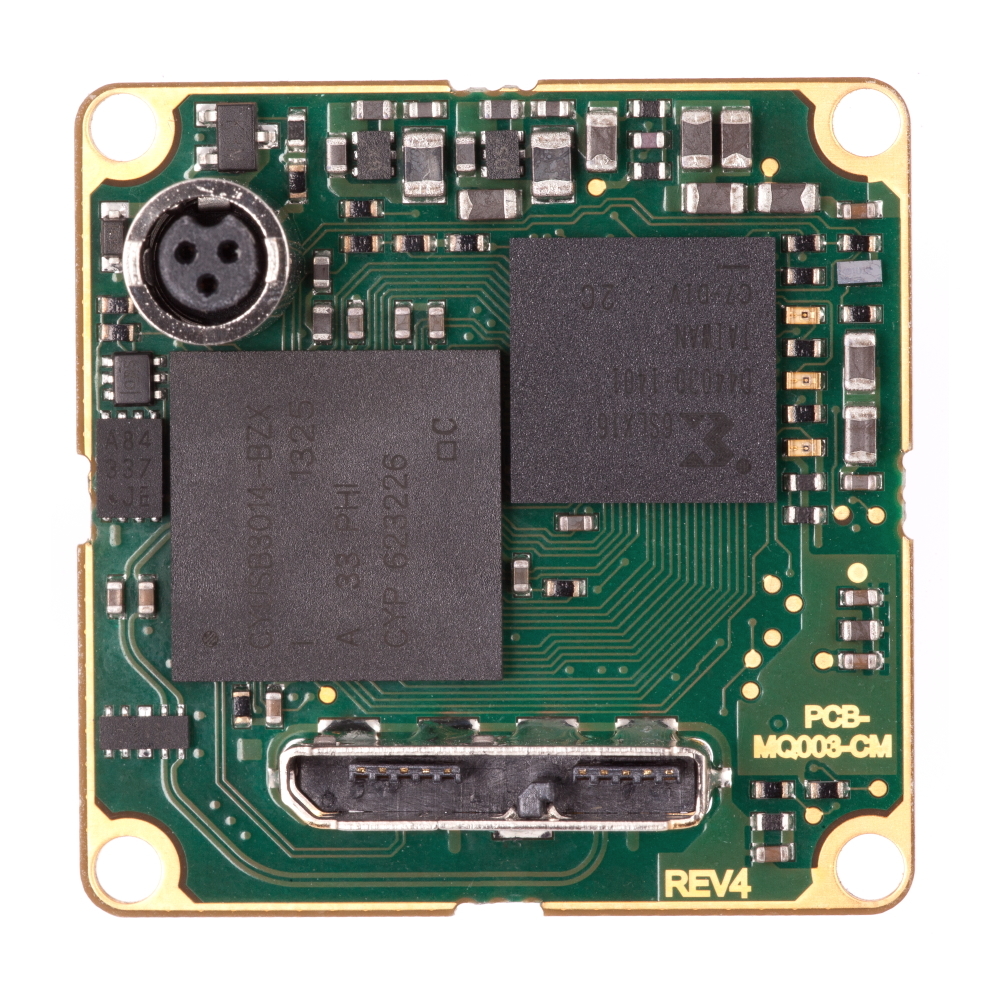

| Data connector type | USB3 Micro-B | |
| GPIO count | Inputs: 1, Outputs: 1 | |
| Exposure minimum | 52 µs | |
| Exposure maximum | 10 s | |
| Power consumption | 1.5 Watt | |
| Heat dissipation | Optional Heatsink | |
| Sensor cooling | No | |
| Special features | HDR, Single board | |
|
EMVA 1288 results
|
||
| Dynamic range | 60 dB | |
| Full well Capacity | 20000 e- | |
| Readout noise | 20 e- | |
| Signal to noise ratio | 40 dB | |

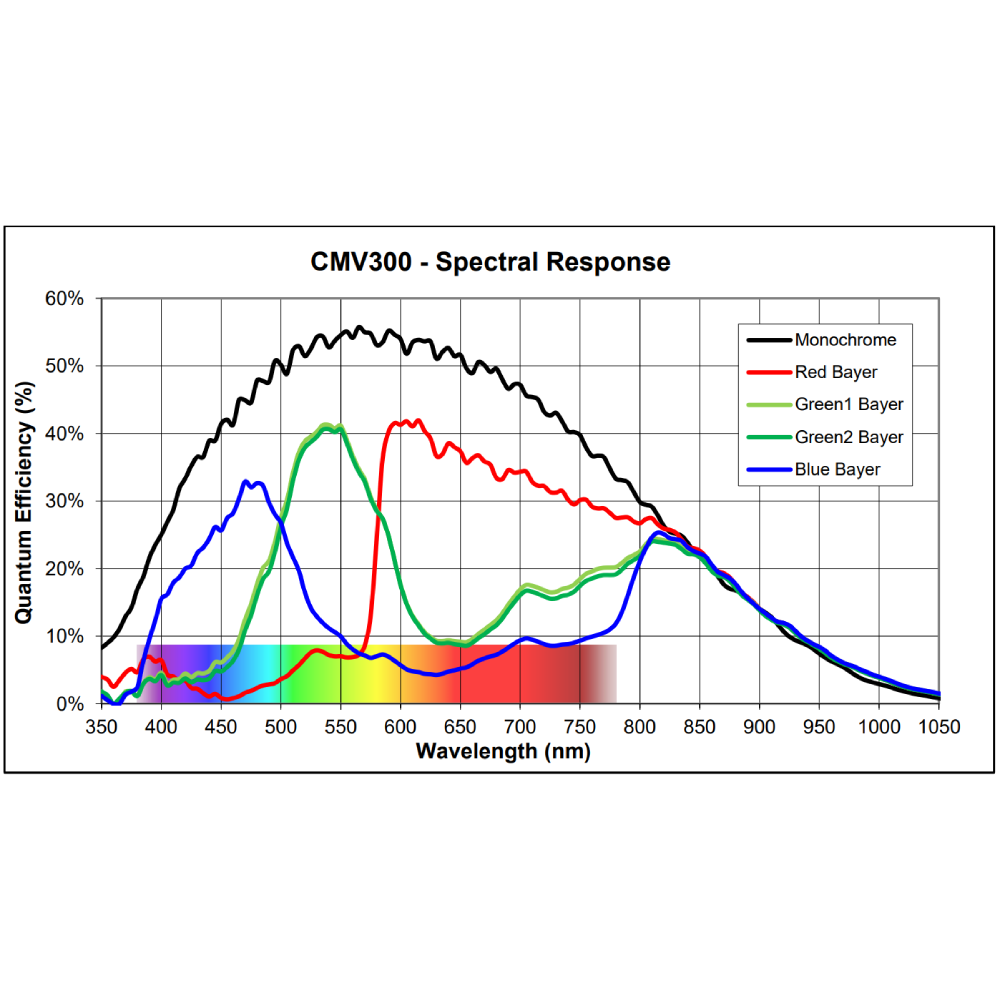

| Peak QE red | 42% 600nm | |
| Peak QE green | 41% 550nm | |
| Peak QE blue | 33% 470nm | |
| Gain analog max | 7.35 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | No mount | |
| Enclosure type | Board level | |

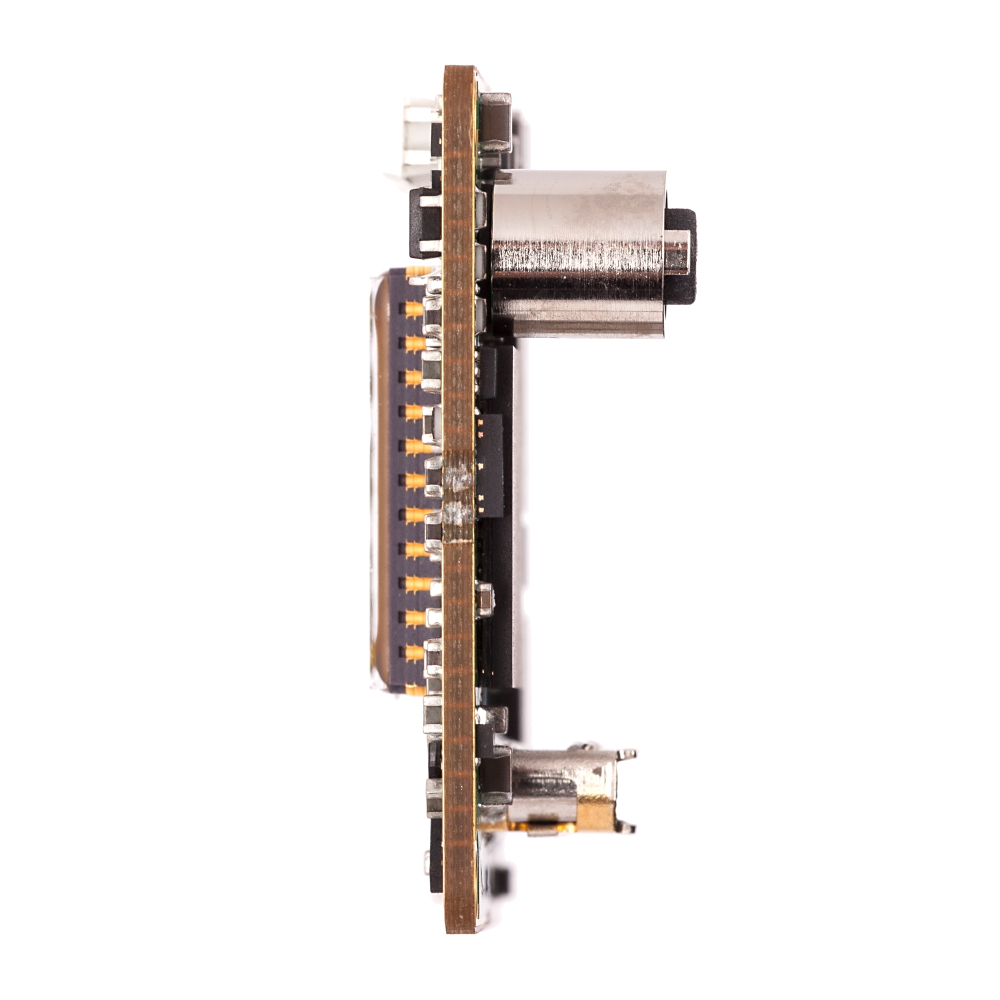

| Physical dimensions (WHD) | 25.4 x 25.4 x 9.4 mm | |
| Mass - weight | 3.4 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
