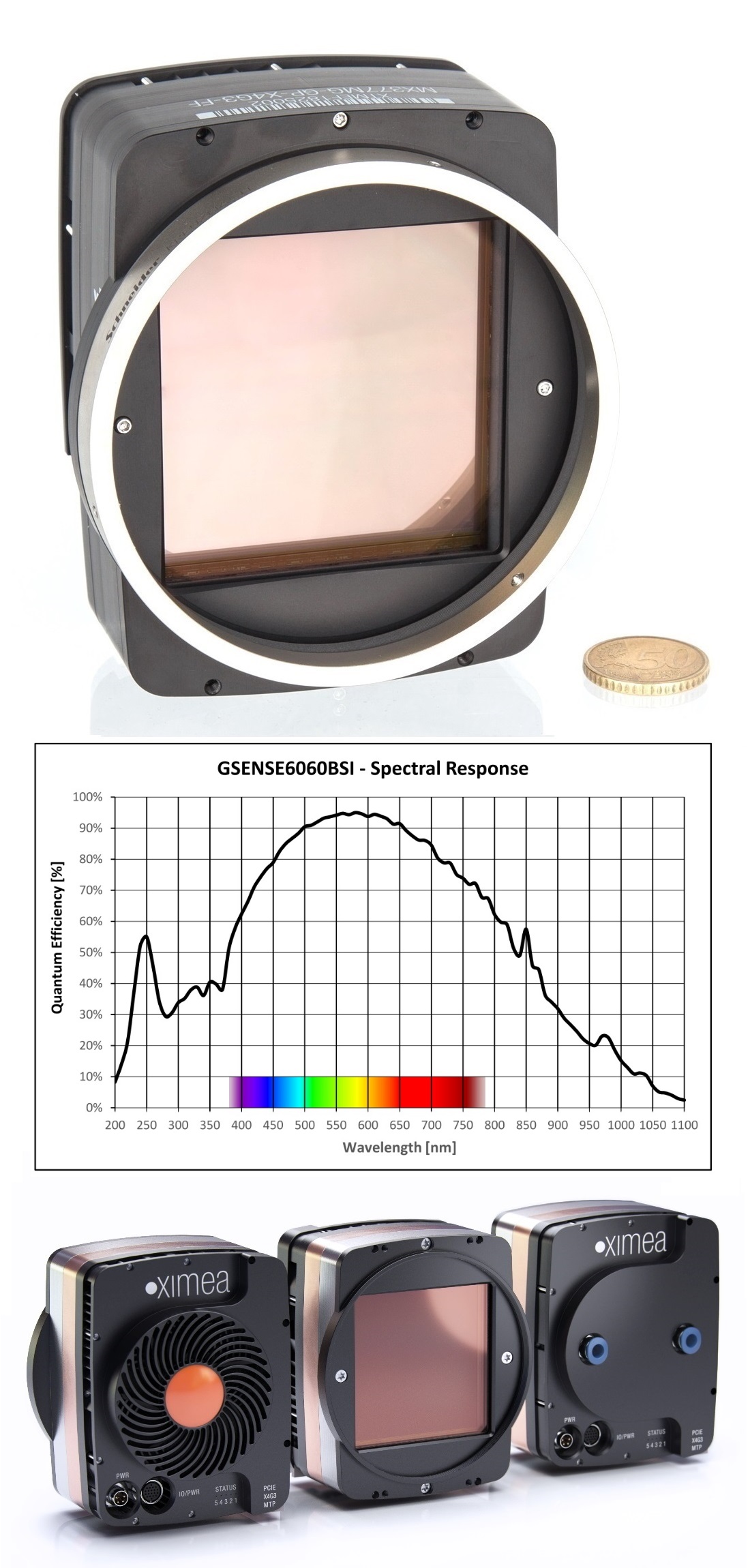

Large sCMOS sensor Gpixel GSENSE6060BSI camera

MTO - Made to order

37.7 Mpix
Available with Multiple sensor Grades of Gpixel GSENSE6060 BSI
Large sensor and large pixel camera ideal for Astronomy
Backside illuminated sensors
Dynamic range 90 dB in HDR mode
Enormous Full well capacity 110ke-
Quantum efficiency - up to 95%
Low dark current and readout noise
Fiber optic bonding to the sensor with scintillator possible
Thermoelectric Peltier module with additional water or air cooling
Able to reach 46 Fps at 12 Bits

Specifications are preliminary and subject to change

The MX377 camera model was primarily designed for Astronomy applications.

However, the extraordinary performance of this camera makes it a perfect fit for other fields of Material and Life Science like High energy physics, Medical, Biological, TEM and others.

XIMEA is working with multiple companies on applications for astronomical and Space Situational Awareness (SSA).

US partners: DFM Engineering

Brochure

Models page

Accessories

Support page

CONTACT SALES

Specifications:
Part Number	MX377MR-GP-Bx-X4G3-MTP
Resolution	37.7 MP 6144 x 6144 pixels
Frame rates	46 FPS (12 bit STD)
Sensor model	Gpixel GSENSE6060BSI
Sensor type	Scientific CMOS (sCMOS) Backside illuminated
Sensor size	Medium format
Sensor active area	61.4 x 61.4 (diagonal 86.8 mm)
Readout method	Rolling shutter
Pixel size	10 μm
Digitization	12, 14 Bit
Data interface	PCIe X4 Gen3, 32Gb/s through MTP-connector
Dynamic range	91 dB (in HDR mode)
Full Well Capacity	113 000 e-
On-chip binning	x2, x4 (Averaging type)
Readout noise typ.	3 e-
Signal to noise ratio	50.8 dB
Exposure range	5 μs to 2147 s (depends on readout mode)
I/O Ports	GPIO 2IN, 2OUT
Power consumption	40 Watt (up to 60W, depending on the sensor cooling)
Lens mount	M95 thread
Weight	1270 gram
Dimensions WxHxD	110 x 98 x 67 mm
Cooling	Up to -25°C (with Water cooling)
