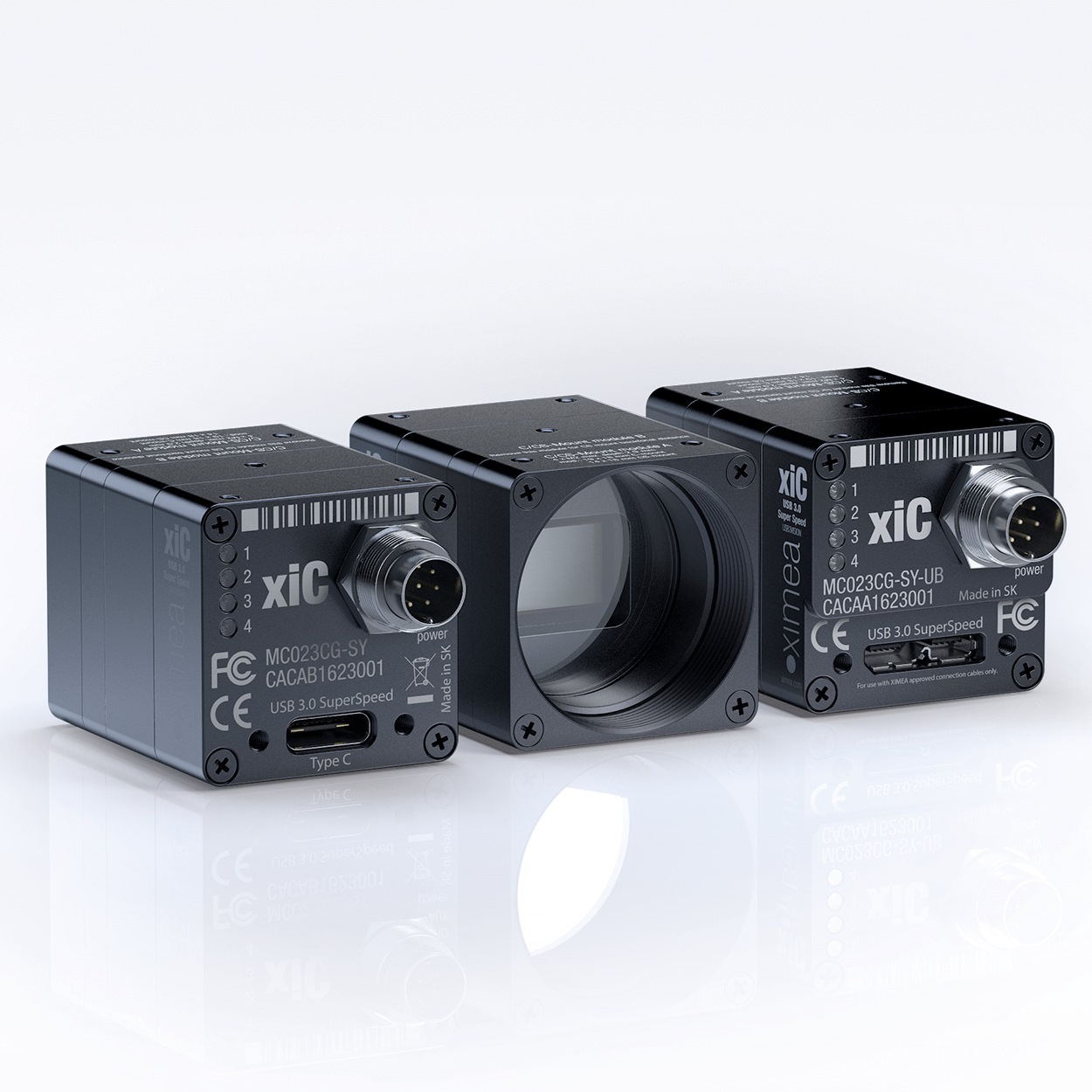

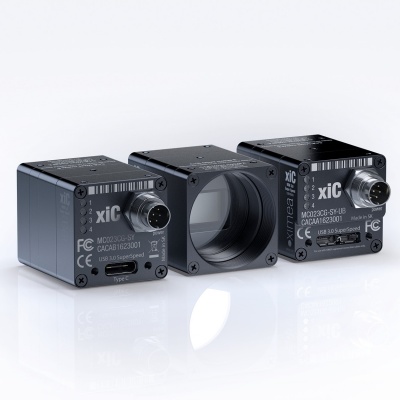

Sony IMX541 USB3 mono industrial camera

Sony IMX541 USB3 mono industrial camera
MTO - Made to order


  • Small dimensions: 26 x 26 x 33 mm
  • 20.3 Mpix Monochrome
  • 18 fps (up to 109 Fps with xiX-Xtreme)
  • Sony IMX541 CMOS Pregius S™ BSI - backside illuminated sensor
  • With flat ribbon flex cable ideal for Embedded vision systems
  • Camera with USB 3.1 Interface - USB3 Vision Compliant


Available with Sony IMX531 and HDR functionality


High resolution camera Applications:

VR an AR, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Dental, Security, Biometrics and more






USB3 Zone


3D / 2D files






Part Number MC203MG-SY
Resolution 20.3 MP 4504 x 4504 pixels
Frame rates 18 Fps (8 bit), 15 Fps (10 bit), 12 Fps (12 bit)
Sensor model Sony Pregius-S IMX541 AAMJ-C
Chroma Monochrome, B/W
Sensor type CMOS, BSI - Backside illuminated
Sensor size 1.1"
Sensor active area 12.34 x 12.34 mm
Readout method Global Shutter
Pixel size 2.74 μm
Digitization 8, 10, 12 bit
Data interface USB 3.1 Gen 1
Dynamic range 70 dB
Full Well Capacity 10 000 e-
On-chip binning 2x2
Readout noise typ. 2.5 e-
Signal to noise ratio 40 dB
Gain range 24 dB
Exposure range 14 μs to 30 s, step 11.57 μs
Power consumption 3.2 Watt
Lens mount C-Mount or CS-mount
Weight 38 gram
Dimensions WxHxD 26 x 26 x 31 mm
