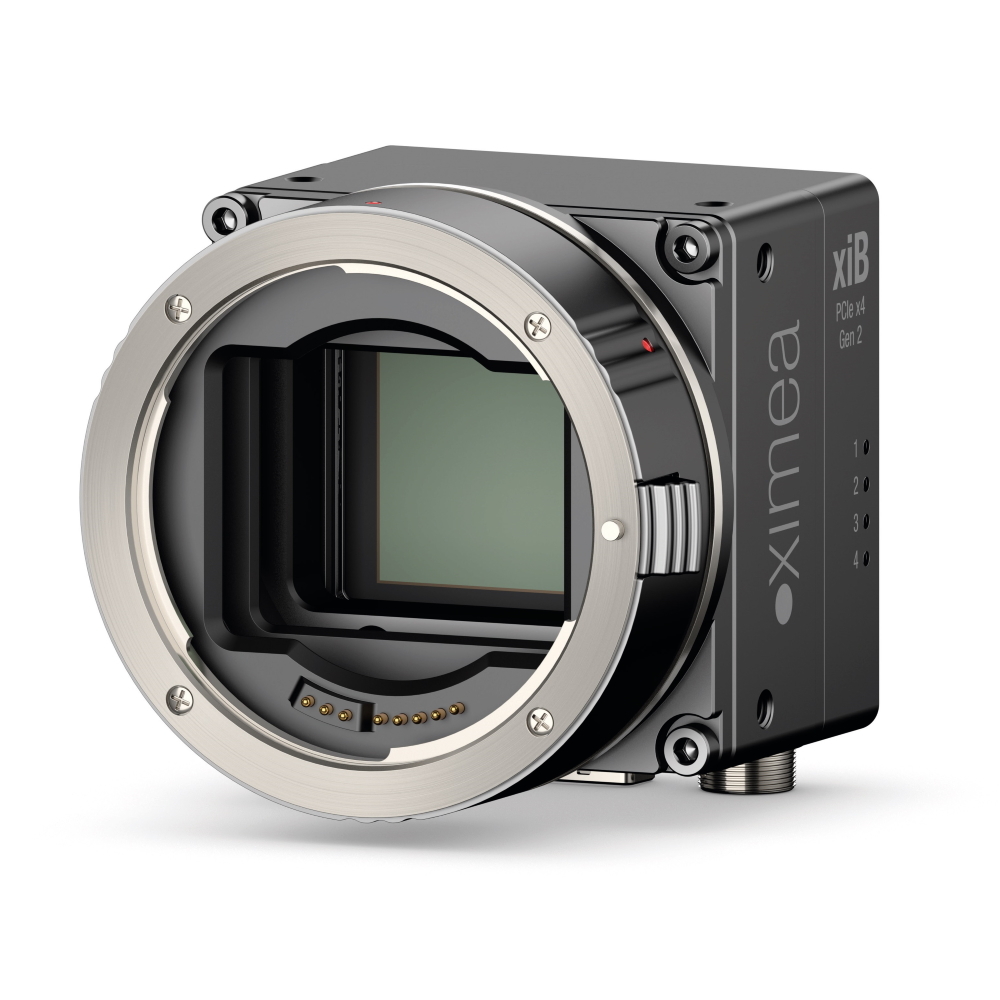

Name: CMOSIS CMV12000 PCIe b/w NIR xib high resolution camera
SKU: 2129

Discontinued

CB120RG-CM

Product statusEnd of Life

Sensor vendorCMOSIS

Sensor modelCMV12000

Sensor technologyCMOS

Shutter typeGlobal shutter

Frame rate138 FPS

Overview Variants Accessories Links and downloads Contact

Overview

Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.

Sensor properties
Resolution	12.5 MPix
Sensor resolution	4096 x 3072
Sensor vendor	CMOSIS
Sensor model	CMV12000
Sensor type	NIR
Sensor technology	CMOS
Sensor size	APS-C
Sensor active area	22 x 16 mm
Sensor diagonal	28.2 mm
Pixel size	5.5 µm
Shutter type	Global shutter

Camera properties
Frame rate	138 FPS
Bits	8, 10, 12 bits
On-chip downsampling	1x1, 2x2
On-chip decimation	1x1, 2x2
Interface	PCIe X4 Gen 2
Data interface speed	16 Gbit/s
Data connector type	PCIe-iPass-X4G2
GPIO count	Inputs: 6, Outputs: 6
Exposure minimum	22 µs
Exposure maximum	117 s
Power consumption	7.4 Watt
Heat dissipation	Optional Heatsink
Sensor cooling	No
Special features	NIR

EMVA 1288 results
Dynamic range	57.5 dB
Full well Capacity	13500 e-
Saturation Capacity	11073.1 e-
Readout noise	14.1 e-
Signal to noise ratio	40.7 dB
Peak QE	50%
Gain analog max	63 dB
Spectral Range	400 - 1000 nm

Mechanical properties
Lens mount	EF-mount option
Enclosure type	Standard housing

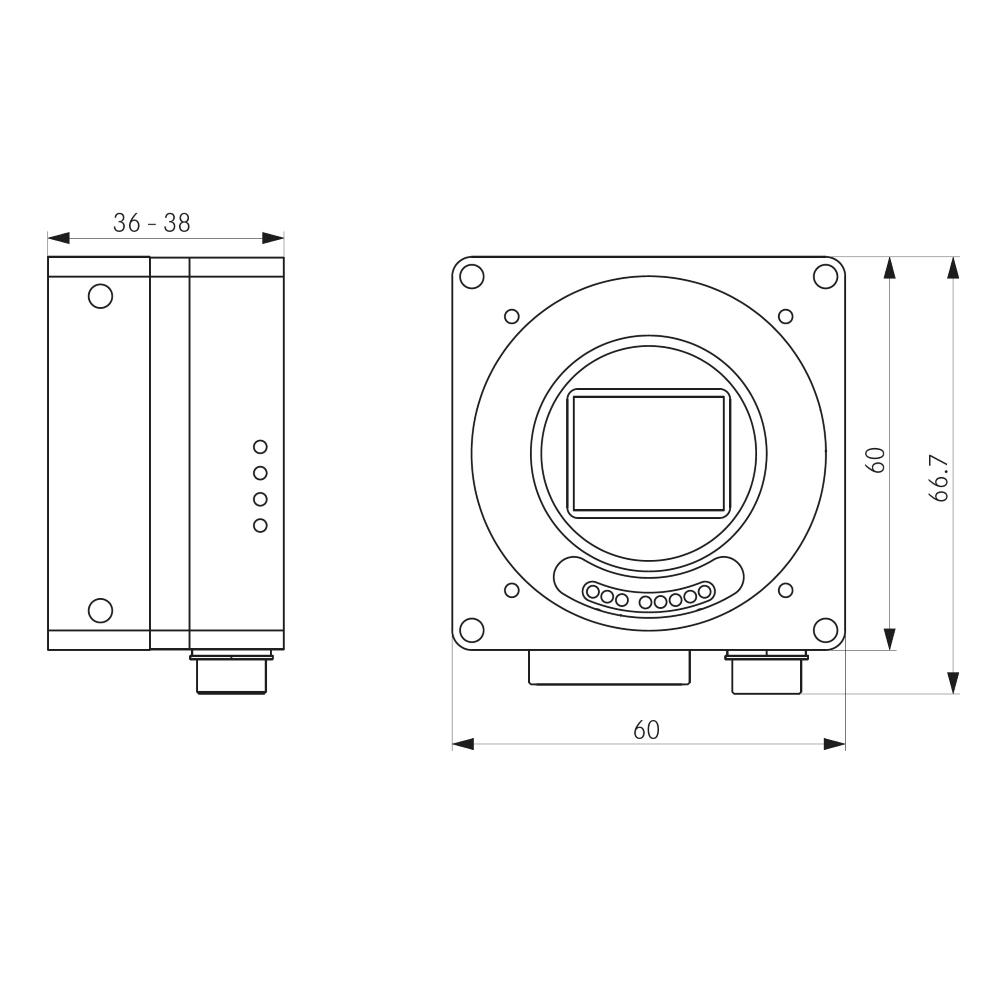

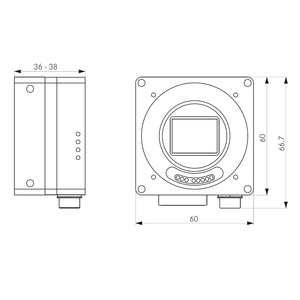

Physical dimensions (WHD)	60 x 60 x 36 mm
Mass - weight	159 gram
Ambient operating temperature	0 - 50 °C
Storage Temperature	-25 - 60 °C
