COMPACT
Compact (26 x 26 mm) camera fitting into places where no other equivalent camera can fit.

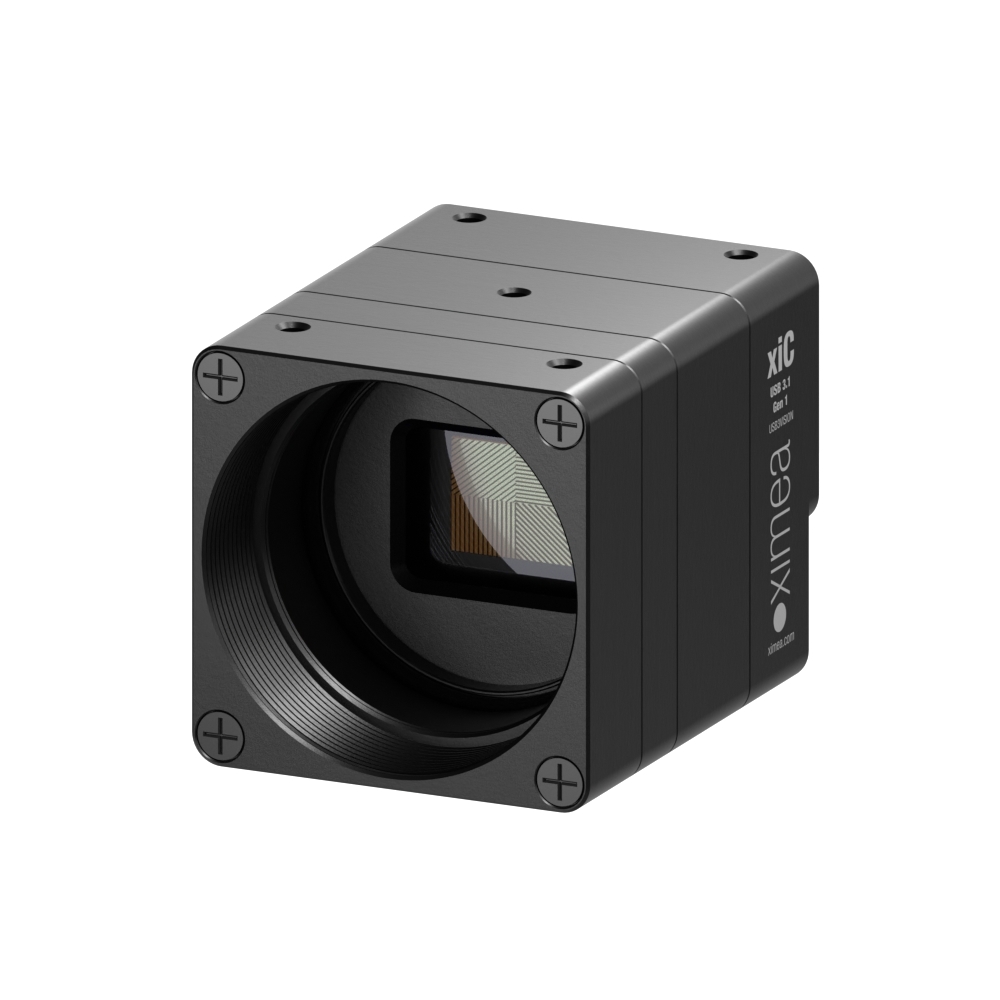

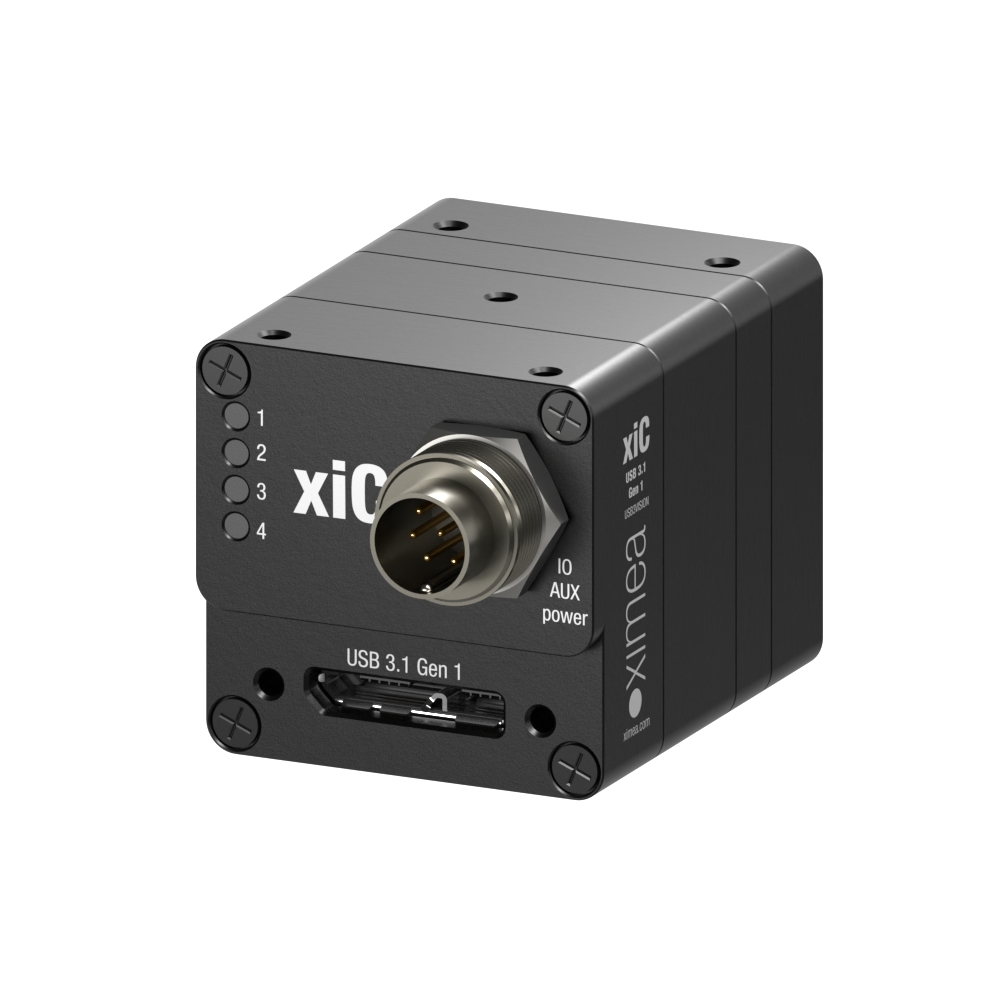

MC124YG-SY-UB
Industrial camera with 12.3 Mpix Color - Polarized SONY IMX253 Polarsens Global shutter sensor and USB3 interface
Specifications
Product statusPrototype
Sensor vendorSONY
Sensor modelIMX253 Polarsens
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate31 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
PRECISE
Global Shutter Pregius™ sensors deliver outstanding imaging quality.
FAST
4x faster than GigE, 5x than Firewire and 10x USB 2.0.
CUSTOMIZABLE
Various options for connectors, housing and OEM adjustments.
|
Sensor properties
|
||
| Resolution | 12.3 MPix | |
| Sensor resolution | 4112 x 3008 | |
| Sensor vendor | SONY | |
| Sensor model | IMX253 Polarsens | |
| Sensor type | Color - Polarized | |
| Sensor technology | CMOS | |
| Sensor size | 1.1" | |
| Sensor active area | 14 x 10 mm | |
| Sensor diagonal | 17.6 mm | |
| Pixel size | 3.45 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 31 FPS | |
| Bits | 8, 10, 12 bits | |
| On-chip decimation | 2x2 | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |
| Data connector type | USB3 Micro-B | |
| GPIO count | Inputs: 3, Outputs: 3 | |
| Exposure minimum | 19 µs | |
| Exposure maximum | 30 s | |
| Power consumption | 3.4 Watt | |
| Heat dissipation | Natural convection, Optional Heatsink | |
| Sensor cooling | No | |
| Special features | Polarsens | |
|
EMVA 1288 results
|
||
| Dynamic range | 70.9 dB | |
| Full well Capacity | 9900 e- | |
| Saturation Capacity | 10521.0 e- | |
| Readout noise | 2.4 e- | |
| Signal to noise ratio | 40.8 dB | |
| Gain analog max | 24 dB | |
|
Mechanical properties
|
||
| Lens mount | C-mount | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 26.4 x 26.4 x 42.0 mm | |
| Mass - weight | 37.5 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Ultra-fast scanning
3D and FACS scanning. Face recognition, Eye Tracking, Body scanner, People counting. Wide area motion imaging and surveillance.
VR and AR
Virtual and augmented reality. High definition Motion capture, 360 Panorama, HMC - head mounted camera. Cinematography and Entertainment.
Scientific
Material and Life science microscopy, Infrared Differential Interference Contrast Microscopy (IR-DIC), Biometrics, Full-Field OCT (FF-OCT) and Optical Coherence Microscopy (OCM), 3D Profilometry and Fiber Optic Connector Surface Metrology, Cell Biology Research, Digital Holographic Microscopy (DHM), Fringe Tracking and Analysis in Laser Interferometry, Ultrasonic-Stimulated Digital Speckle Pattern Interferometry (DSPI) for Non-Destructive Testing (NDT), Intrinsic Optical Signal Imaging (IOSI) in Non-Human Primates (NHP), Nonlinear microscopy Second Harmonic Generation (SHG) imaging.
Medical
Ophthalmology, Histology (Digital Pathology, Histopathology), Retinal Imaging, Optical Coherence Tomography (OCT), Epi-fluorescence for Biomedical Research, Live Cell Analysis, Hematology Analyzer (CBC - Complete Blood Count system), LumEDA (Luminance-based Electrodermal Activity) Monitoring and Psychophysiological Assessment, Radiotherapy Planning and Treatment Verification.
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor mapping with UAV / UAS and other types of drones or autonomous vehicles. Even LEO (Low Earth Orbit) satellites.
Broadcasting
Instant replays and rapid process capturing, e.g. golf club swings, ping pong, baseball, tennis, football, hockey, basketball and more.
Quality inspection
Flat panel display (FPD), Photovoltaics, Photolithography, Particle image velocimetry (PIV) for particle size distribution (PSD), Semiconductor wafer scanning, AOI (Automated Optical Inspection) of PCB, Metrology, QC (Quality Control) application, Electronics measurement and assemblies.
Portable
Miniature and accurate robotic arms. Industrial and Factory Automation, Machine Vision, Precision Moldings, Robotic Welding.
LoLa
Ideal for Low Latency audio and visual streaming systems used in educational or presentation purposes around the globe.
