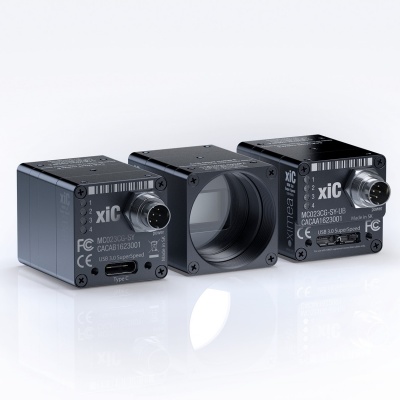

Sony IMX253 USB3 color industrial camera

Sony IMX253 USB3 color industrial camera
  • Small dimensions: 26 x 26 x 33 mm, 38 grams
  • 12.4 Mpix at 31 fps (up to 69 Fps with xiX)
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant



12.4 MP Color Sony CMOS Pregius™ Camera with USB 3.1 Interface.



4K camera Applications: In-situ optical inspection camera, fast process capturing, e.g. Golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Automotive crash testingOCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics



Check conditions for the model version with Sony IMX304 sensor.

Brochure



Accessories



USB3 Zone



Manual



CONTACT SALES


Specifications:
Part Number MC124CG-SY
Resolution 12.4 MP 4112 x 3008
Frame rates 31 fps
Sensor model Sony IMX253
Sensor type CMOS RGB Bayer Matrix
Sensor size 1.1"
Sensor active area 14.2 x 10.4 (Diagonal 17.6 mm)
Readout method Global shutter
Pixel size 3.45 µm
Digitization 8, 10, 12
Data interface USB 3.1 Gen 1
Dynamic range 70.4 dB
Full Well Capacity 9900 e-
On-chip binning 1x2, 2x2 (and Skipping)
Dark current 3.9 e-
Readout noise typ. 2.4 e-
Signal to noise ratio 40.45 dB
Exposure range 1µs to 30sec, in steps of 10.54µs
I/O Ports GPIO IN, OUT
Power consumption 3.25 Watt
Lens mount C or CS Mount
Weight 38 grams
Dimensions WxHxD 26 x 26 x 33 mm
Operating temperature 50 °C
Last Updated: 28 March 2024, 10:20
