- Small dimensions: 26 x 26 x 33 mm, 38 grams
- 12.4 Mpix at 31 fps (up to 69 Fps with xiX)
- With flat ribbon flex cable ideal for Embedded vision systems
- USB3 Vision Compliant

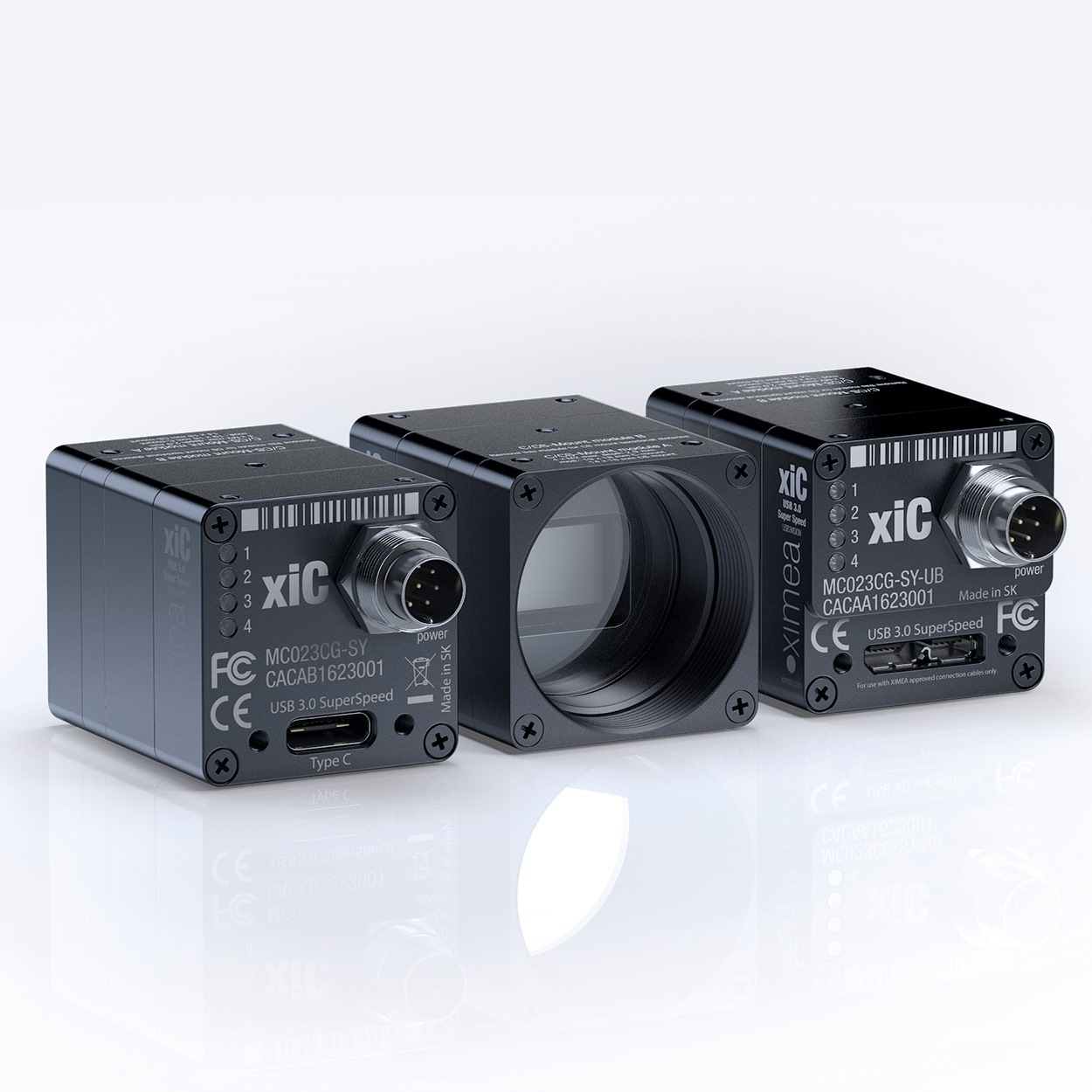

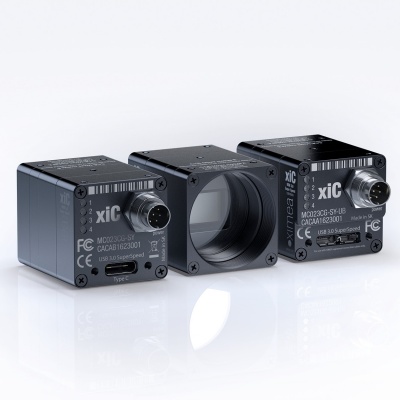

12.4 MP Monochrome Sony CMOS Pregius™ Camera with USB 3.1 Interface.
4K camera Applications: In-situ optical inspection camera, fast process capturing, e.g. Golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Automotive crash testing, OCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics
Check conditions for the model version with Sony IMX304 sensor.
Brochure
Accessories
USB3 Zone
Manual
CONTACT SALES
Specifications: | |
| Part Number | MC124MG-SY |
| Resolution | 12.4 MP 4112 x 3008 |
| Frame rates | 31 fps |
| Sensor model | Sony IMX253 |
| Sensor type | CMOS Matrix B/W |
| Sensor size | 1.1" |
| Sensor active area | 14.2 x 10.4 (Diagonal 17.6 mm) |
| Readout method | Global shutter |
| Pixel size | 3.45 µm |
| Digitization | 8, 10, 12 |
| Data interface | USB 3.1 Gen 1 |
| Dynamic range | 70.4 dB |
| Full Well Capacity | 9900 e- |
| On-chip binning | 1x2, 2x2 (and Skipping) |
| Dark current | 3.9 e- |
| Readout noise typ. | 2.4 e- |
| Signal to noise ratio | 40.45 dB |
| Exposure range | 1µs to 30sec, in steps of 10.54µs |
| I/O Ports | GPIO IN, OUT |
| Power consumption | 3.25 Watt |
| Lens mount | C or CS Mount |
| Weight | 38 grams |
| Dimensions WxHxD | 26 x 26 x 33 mm |
| Operating temperature | 50 °C |
