COMPACT

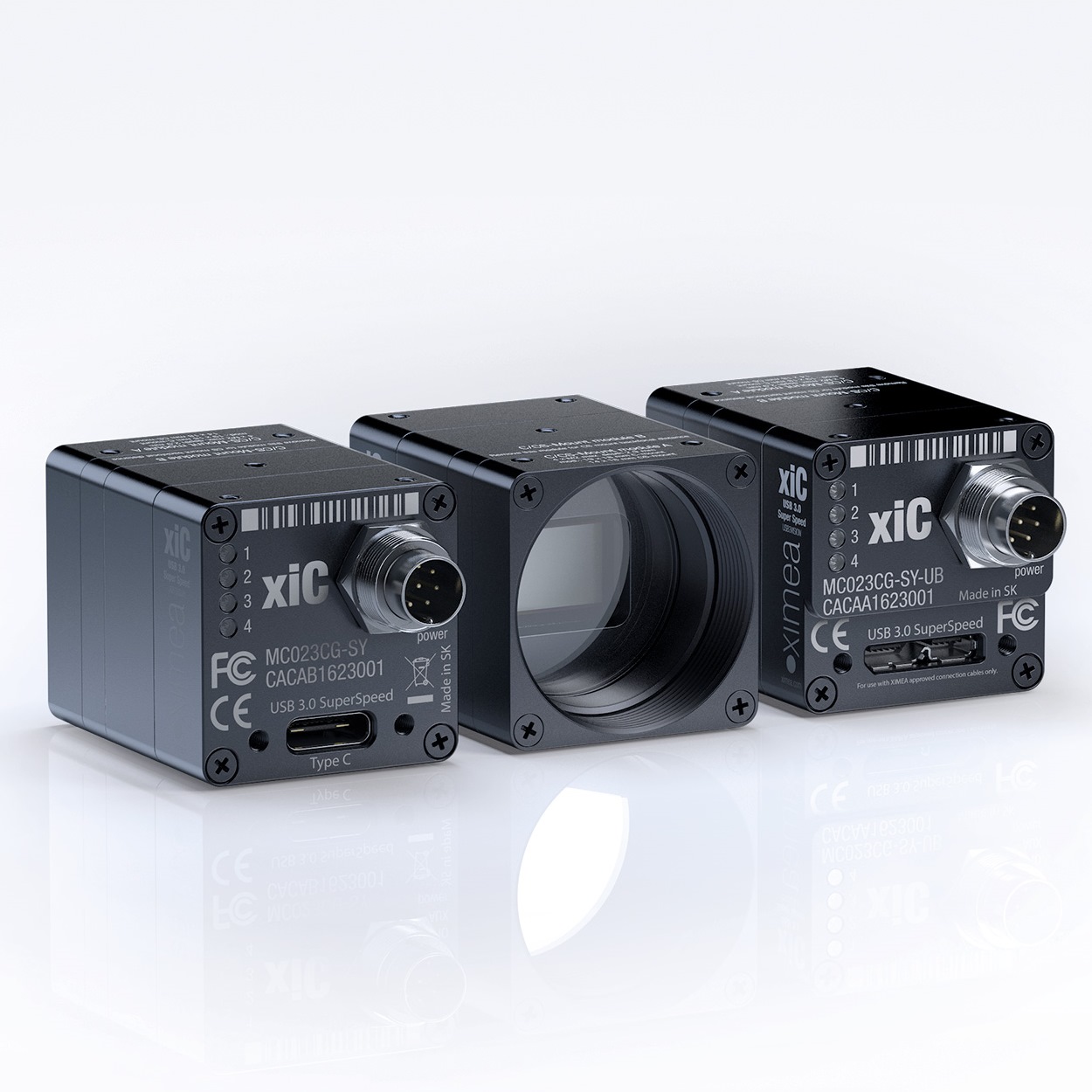

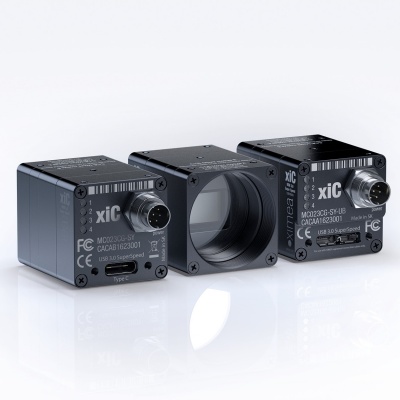

Compact (26 x 26 mm) camera fitting into places where no other equivalent camera can fit.
MC031CG-SY
Industrial camera with 3.1 Mpix Color SONY IMX252 Global shutter sensor and USB3 interface
Specifications
Product statusActive
Sensor vendorSONY
Sensor modelIMX252
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate121 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
PRECISE
Global Shutter Pregius™ sensors deliver outstanding imaging quality.
FAST
4x faster than GigE, 5x than Firewire and 10x USB 2.0.
CUSTOMIZABLE
Various options for connectors, housing and OEM adjustments.
|
Sensor properties
|
||
| Resolution | 3.1 MPix | |
| Sensor resolution | 2064 x 1544 | |
| Sensor vendor | SONY | |
| Sensor model | IMX252 | |
| Sensor type | Color | |
| Sensor technology | CMOS | |
| Sensor size | 1/1.8" | |
| Sensor active area | 7.1 x 5.3 mm | |
| Sensor diagonal | 8.9 mm | |
| Pixel size | 3.45 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 121 FPS | |
| Bits | 8, 10, 12 bits | |
| On-chip decimation | 2x2 | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |
| Data connector type | USB3 Micro-B | |
| GPIO count | Inputs: 3, Outputs: 3 | |
| Exposure minimum | 1 µs | |
| Exposure maximum | 30 s | |
| Power consumption | 3.1 Watt | |
| Heat dissipation | Natural convection, Optional Heatsink | |
| Sensor cooling | No | |
|
EMVA 1288 results
|
||
| Dynamic range | 71.1 dB | |
| Full well Capacity | 9900 e- | |
| Saturation Capacity | 10310.5 e- | |
| Readout noise | 2.3 e- | |
| Signal to noise ratio | 40.5 dB | |
| Peak QE red | 58% 600nm | |
| Peak QE green | 61% 520nm | |
| Peak QE blue | 50% 450nm | |
| Gain analog max | 24 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | C-mount | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 26.4 x 26.4 x 41.9 mm | |
| Mass - weight | 37.5 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Ultra-fast scanning
3D and FACS scanning. Face recognition, Eye Tracking, Body scanner, People counting. Wide area motion imaging and surveillance.
VR and AR
Virtual and augmented reality. High definition Motion capture, 360 Panorama, HMC - head mounted camera. Cinematography and Entertainment.
Medical and Scientific
Medical imaging, Ophthalmology, Histology and Retinal imaging, Material and Life science microscopy (IR-DIC), Biometrics and Cell biology.
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor mapping with UAV / UAS and other types of drones or autonomous vehicles.
Broadcasting
Instant replays and rapid process capturing, e.g. golf club swings, ping pong, baseball, tennis, football, hockey, basketball and more.
Quality inspection
Flat panel display (FPD), Photovoltaics, Photolithography, Semiconductor wafer scanning, Metrology, Electronics measurement and assemblies.
Portable
Miniature and accurate robotic arms. Industrial and Factory Automation, Machine Vision, Precision Moldings, Robotic Welding.
LoLa
Ideal for Low Latency audio and visual streaming systems used in educational or presentation purposes around the globe.
