Products USB 3.1 Gen1 cameras with Sony CMOS - xiC Sony IMX541 USB3 color industrial camera

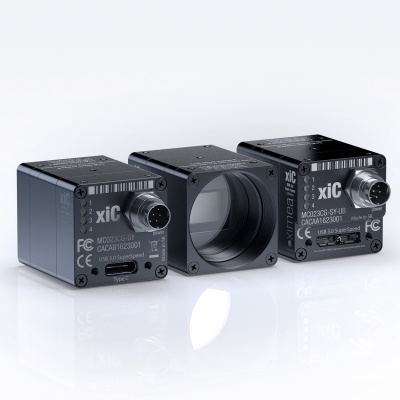

Sony IMX541 USB3 color industrial camera

Sony IMX541 USB3 color industrial camera
MTO - Made to order
  • Small dimensions: 26 x 26 x 31 mm
  • 20.3 Mpix at 18 fps
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant


20.3 MP Color BSI Sony CMOS Pregius S Camera with USB 3.1 Gen 1

Available with Sony IMX531 and HDR functionality


High resolution camera Applications: VR an AR, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Dental, Security, Biometrics and more


Specifications are preliminary and subject to change





USB3 Zone





Part Number MC203CG-SY
Resolution 20.3 MP 4504 x 4504
Frame rates 18 Fps (8 bit), 15 Fps (10 bit), 12 Fps (12 bit)
Sensor model Sony Pregius-S IMX541-AAQJ-C
Chroma Color
Sensor type CMOS, BSI - Backside illuminated
Sensor size 1.1"
Sensor active area 12.34 x 12.34 mm
Readout method Global Shutter
Pixel size 2.74 μm
Digitization 8, 10, 12
Data interface USB 3.1 Gen 1
Dynamic range 70 dB
Full Well Capacity 9500 e-
Readout noise typ. 2.1 e-
Exposure range 9µs to 30s, step 7µs
Lens mount C-Mount or CS-mount
Dimensions WxHxD 26 x 26 x 31 mm
