Products xiLab - Application specific custom OEM Gpixel GMAX3265 mono 8K embedded camera

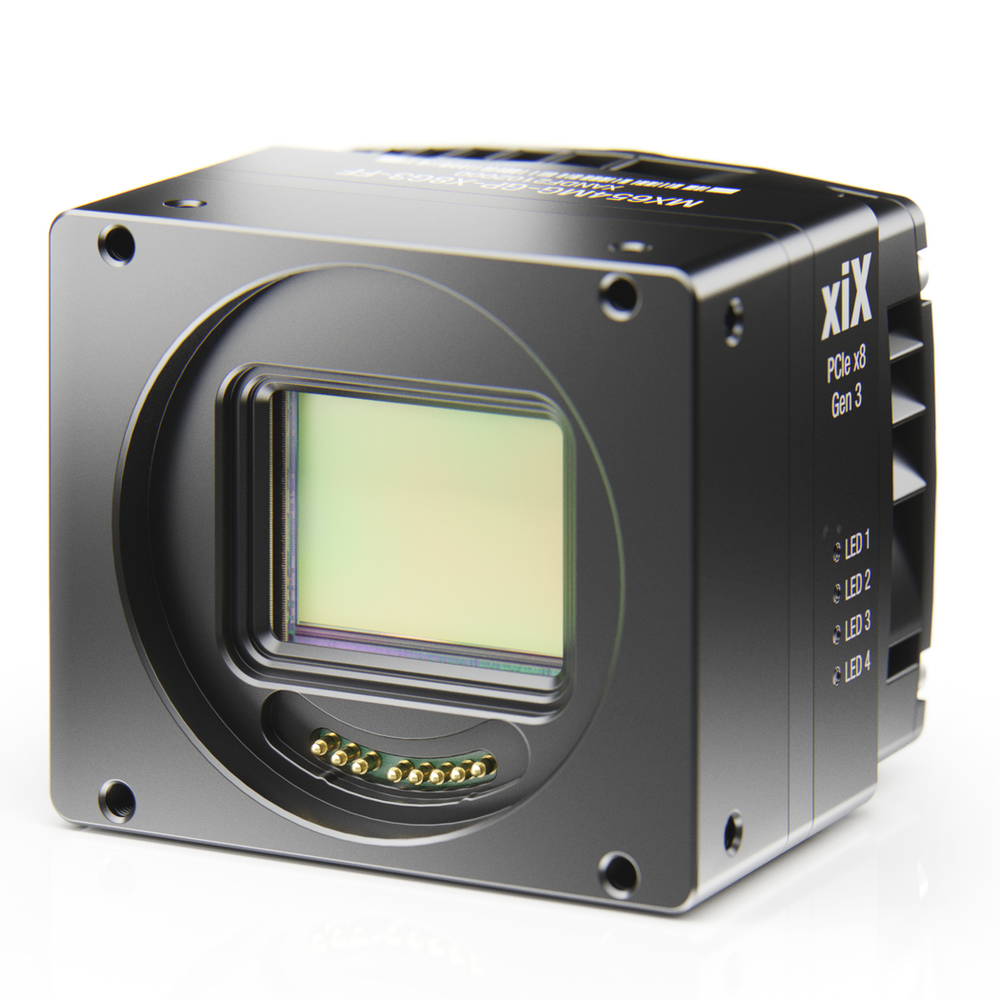

Gpixel GMAX3265 mono 8K embedded camera

Gpixel GMAX3265 mono 8K embedded camera
MTO - Made to order
  • 65 Mpix, monochrome
  • 71 FPS @ 10bit
  • World's highest resolution Global shutter sensor
  • 2.3" CMOS, Gpixel GMAX3265
  • High resolution and fast speed industrial camera
  • No Frame grabber needed with PCIe interface and 64 Gbps bandwidth
  • High Dynamic range, Low noise, minimal latency, DMA
  • With flat ribbon flex cable ideal for Embedded vision systems


More than 8K, compact, high speed camera for:

Flat panel inspection (FPD), printed circuit board (PCB) examination, Pill sorting (laser 3D method),  solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports broadcast and entertainment, UAV and Autonomous, Unmanned vehicles, Photogrammetry, surveying, aerial or city mapping, 360 panorama and more.


Note: Check conditions for model with Taped Cover Glass sensor version








Camera family


Embedded pages




Part Number MX654MG-GP-X8G3
Resolution 65 MP 9344 x 7000 pixels
Frame rates 71 fps (8bit), 71 fps (10bit), 31 fps (12bit)
Sensor model GPixel GMAX3265 CM
Chroma Monochrome B/W
Sensor type CMOS
Sensor size APS-C Format
Sensor active area 29.9 x 22.4 (Diagonal 37.4 mm)
Spectral range 400 - 1000 nm
Readout method Global shutter
Pixel size 3.2 µm
Digitization 10 and 12 bits
Data interface PCIe Gen3 x8 (64 Gbits)
Dynamic range 64 dB (at 12bits)
Full Well Capacity 9200 e-
Dark current 2.2 e-
Readout noise typ. 5.2 e- (at 12bits)
Signal to noise ratio 40 dB
Exposure range 17 µs to 1.05 s, step 5 µs
I/O Ports GPIO 2IN, 2OUT, Serial Port
Power consumption 17 Watt
Lens mount Optional accessory: Active EF-mount
Weight 290 grams
Dimensions WxHxD 60 x 70 x 42 mm
Cooling Fan or Water module
Last Updated: 20 July 2024, 03:01
