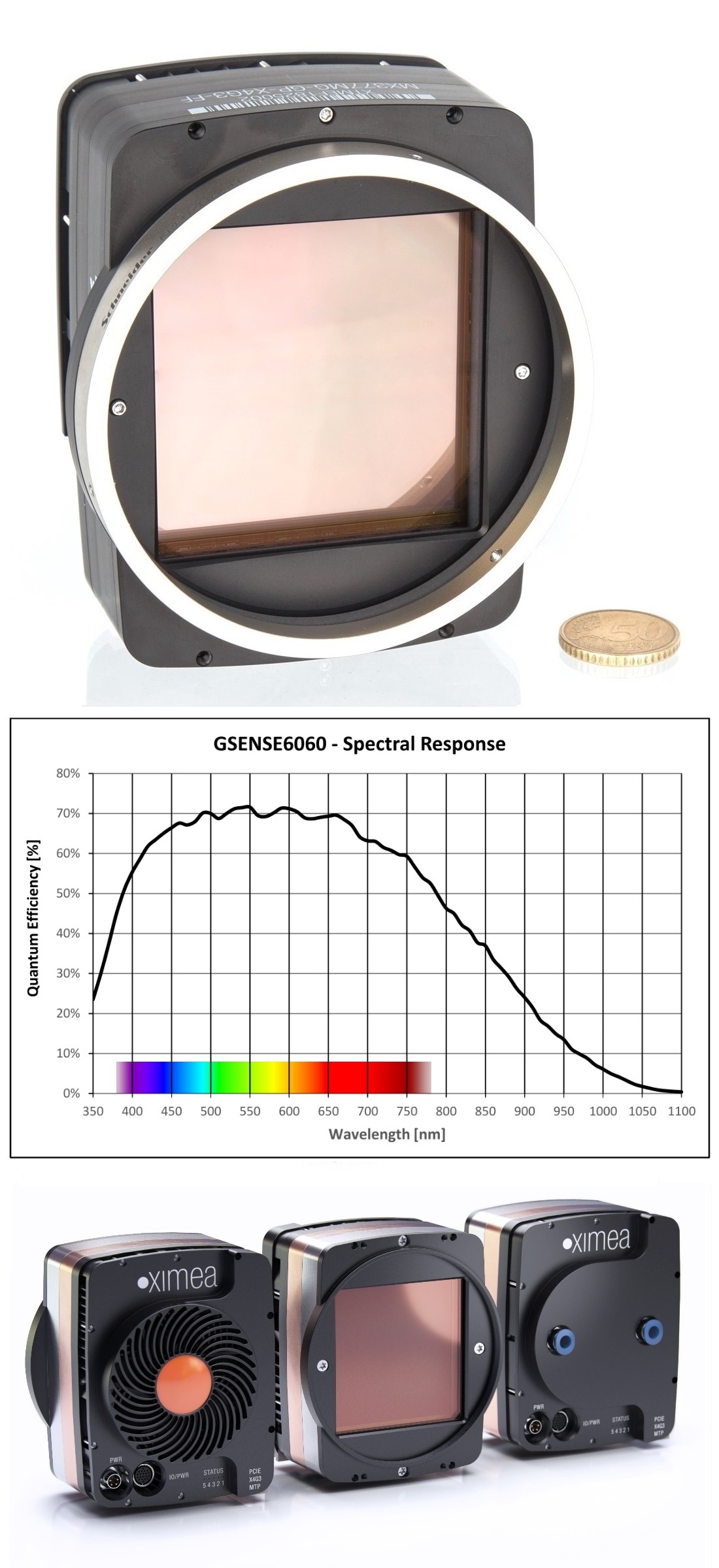

Cooled large 62 x 61 mm sensor camera with 38 Mpix based on Gpixel GSENSE6060 FSI sCMOS

Name: GPIXEL GSENSE6060-FSI PCIe mono mx377 sCMOS camera
SKU: 2705

Product statusEngineering Sample

Sensor vendorGpixel

Sensor modelGSENSE6060 FSI

Sensor technologysCMOS

Shutter typeRolling shutter

Frame rate48 FPS

Overview Variants Accessories Links and downloads Contact

Overview

Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.

PRECISE

Built with the latest 6k x 6k sCMOS sensors from the Gpixel's GSENSE family. With 37 Mpix resolution and 10 µm pixel size, these are fine tuned for quantitative imaging

ROBUST

Aluminum alloy, CNC machined, rugged housing designed to achieve long life and minimize size.

COOL

Thermoelectric Peltier sensor cooling down to -20°C, enhanced with air fan or liquid water module option

SCIENTIFIC

Different sensor grades with sCMOS technology for linear response, high sensitivity, suppressed dark current and low noise during long exposures and low-light imaging

Sensor properties
Resolution	38 MPix
Sensor resolution	6200 x 6144
Sensor vendor	Gpixel
Sensor model	GSENSE6060 FSI
Sensor type	Monochrome
Sensor technology	sCMOS
Sensor size	Medium format
Sensor active area	62 x 61 mm
Sensor diagonal	87.3 mm
Pixel size	10 µm
Shutter type	Rolling shutter

Camera properties
Frame rate	48 FPS
Bits	12, 14, 2 x 12, 2 x 14 bits
On-chip downsampling	4x4
On-chip decimation	1x4
Interface	PCIe X8 Gen 3
Data interface speed	32 Gbit/s
Data connector type	PCIe-FireFly-X4G3
GPIO count	Inputs: 11, Outputs: 11
Exposure minimum	24 µs
Exposure maximum	30 s
Power consumption	20 Watt
Heat dissipation	Fan air cooling
Sensor cooling	Yes
Special features	HDR, Dual ADC

EMVA 1288 results
Dynamic range	90 dB
Full well Capacity	110000 e-
Readout noise	4 e-
Signal to noise ratio	51.7 dB
Peak QE	72%
Gain analog max	40 dB
Spectral Range	350 - 1050 nm

Mechanical properties
Lens mount	M95 mount, M95mount-x1
Enclosure type	Standard housing
Physical dimensions (WHD)	98 x 110 x 67 mm
Mass - weight	1270 gram
Ambient operating temperature	0 - 50 °C
Storage Temperature	-25 - 60 °C

Feature set for MX377 family

Technology
Sensor technology	Scientific CMOS or sCMOS
Acquisition modes	Rolling shutter
Sensor versions	Front side illuminated (FSI) and Backside illuminated (BSI) with various Grades
Digital Output	12, 14, 16 bit RAW pixel data digitization
PCIe interface	PCI Express Gen3 x4 lanes standard compliant to PCI Express External Cabling Specifications
General purpose I/O	2x opto-isolated input, 2x opto-isolated output
Synchronization	Hardware and software trigger input, exposure strobe output, busy output
Lens mount	M95 thread
Cooling	Thermoelectric Peltier cooling and fan or water module

Processing
Partial image readout	ROI / AOI (region / area of interest); Skipping and Binning modes supported
Image processing	Host based de-Bayering; sharpening; Gamma; color matrix; true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction	On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments	Auto white balance; auto gain; auto exposure; HDR mode (High Dynamic range)
Flat field corrections	Host assisted pixel level shading and lens corrections
Signal conditioning	Programmable debouncing time

Software
SDK / API	Programmable with C++ and C#, Python
Software support	one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs	CamTool viewer
Firmware updates	Field firmware update through xiCOP tool

Computer
Operating systems	Windows 10 (x86 and x64), Windows 7 SP1 (x86 and x64), Linux Ubuntu, MacOS
Minimum host hardware	Intel i3 3.0GHz, +2GB RAM, NVIDIA or Radeon 128MB, Motherboard with PCIe Gen 3 x4 port

Regulations
Environment side	Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity	CE, FCC, RoHS, WEEE, GenICam/GenTL, USB 3.0 SuperSpeed

Utilization of MX377 sCMOS cameras in various Applications

Space exploration

Bose-Einstein Condensation, BEC dynamics, Nanoparticle, Astronomy, Solar polarimetry, Pulsar imaging, Space debris and NEO tracking, Fluorescence correlation spectroscopy (FCS), Astrophysics

Fluorescence

Förster resonance energy transfer (FRET), Fluorescence recovery after photobleaching (FRAP), Fluorescence in situ hybridization (FISH), Total internal reflection Fluorescence (TIRF), High Speed Multicolor and Light Sheet

Biomedical

Cell Biology, Biochip reading, Protein/Lipid Trafficking, Membrane Dynamics, gene expression analysis, Biophysics, Biometrics, Genomics, Ion signaling and Transport Physiology, Corona detection

Material science

Photoluminescence Spectroscopy, Mineralogy, Photovoltaic inspection, Coherent anti-Stokes Raman spectroscopy (CARS), neutron tomography, Quantum Dots and Optics, Intrinsic, Spinning disk confocal imaging

Life science

Endoscopy, Phosphorescence, Digital pathology, Ophthalmology, Gated stimulated emission depletion (GSTED), Electrophysiology, Optical Coherence tomography (OCT), Calcium, Ratiometric, Voltage Sensitive Dyes

Microscopy

Photoactivated localization microscopy (PALM), stochastic optical reconstruction microscopy (STORM), ground state depletion microscopy (GSDIM), selective plane illumination microscopy (SPIM), Widefield Fluorescence Microscopy
