Built with the latest sCMOS sensors from the Gpixel's GSENSE family focused on sensitivity and speed - up to 37 Mpix resolution

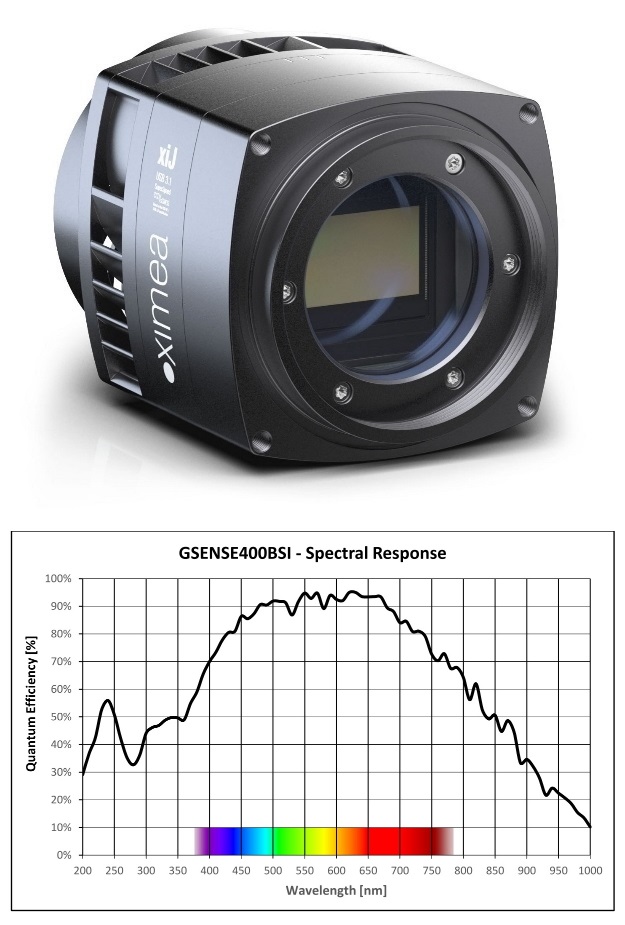

MJ042MR-GP-P11-BSI
Scientific grade camera with 4.1 Mpix Gpixel GSENSE400 BSI sCMOS sensor and USB3 interface
Specifications
Product statusTechnical Sample
Sensor vendorGpixel
Sensor modelGSENSE400 BSI
Sensor technologysCMOS
Shutter typeRolling shutter
Frame rate46 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
FUNCTIONAL
Flexible binning configurations, ability to utilize RAW data or dual amplifier HDR imaging capabilities for the best results in Dynamic range or Full well capacity.
COOL
Thermoelectric Peltier sensor cooling down to -20 °C, enhanced with air fan or liquid cooler module option.
SCIENTIFIC
Equipped with sCMOS sensors for linear response, high sensitivity, suppressed dark current and low noise during long exposures and low-light imaging.
|
Sensor properties
|
||
| Resolution | 4.1 MPix | |
| Sensor resolution | 2048 x 2048 | |
| Sensor vendor | Gpixel | |
| Sensor model | GSENSE400 BSI | |
| Sensor type | Monochrome | |
| Sensor technology | sCMOS | |
| Sensor size | 2" | |
| Sensor active area | 22 x 22 mm | |
| Sensor diagonal | 31.9 mm | |
| Pixel size | 11 µm | |
| Shutter type | Rolling shutter | |
|
Camera properties
|
||
| Frame rate | 46 FPS | |
| Bits | 12, 2 x 12 bits | |
| On-chip downsampling | 4x4 | |
| On-chip decimation | 1x4 | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |
| Data connector type | USB3 Type-C | |
| GPIO count | Inputs: 1, Outputs: 1 | |
| Exposure minimum | 24 µs | |
| Exposure maximum | 30 s | |
| Power consumption | 3.5 Watt | |
| Heat dissipation | Optional Heatsink, Fan air cooling | |
| Sensor cooling | Yes | |
| Special features | HDR, Dual ADC, Backside illumination | |
|
EMVA 1288 results
|
||
| Dynamic range | 88.9 dB | |
| Full well Capacity | 90000 e- | |
| Saturation Capacity | 88011.4 e- | |
| Readout noise | 2.2 e- | |
| Signal to noise ratio | 48.7 dB | |
| Peak QE | 95% | |
| Gain analog max | 40 dB | |
| Spectral Range | 200 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | M42 mount | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 52.1 x 52.1 x 60.08 mm | |
| Mass - weight | 320 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Fluorescence
Förster resonance energy transfer (FRET), Fluorescence recovery after photobleaching (FRAP), Fluorescence in situ hybridization (FISH), Total internal reflection Fluorescence (TIRF), High Speed Multicolor and Light Sheet
Microscopy
Photoactivated localization microscopy (PALM), stochastic optical reconstruction microscopy (STORM), ground state depletion microscopy (GSDIM), selective plane illumination microscopy (SPIM), Widefield Fluorescence Microscopy
Biomedical
Cell Biology, Biochip reading, Protein/Lipid Trafficking, Membrane Dynamics, gene expression analysis, Biophysics, Biometrics, Genomics, Ion signaling and Transport Physiology, Corona detection
Life science
Endoscopy, Phosphorescence, Digital pathology, Ophthalmology, Gated stimulated emission depletion (GSTED), Electrophysiology, Optical Coherence tomography (OCT), Calcium, Ratiometric, Voltage Sensitive Dyes
Space exploration
Bose-Einstein Condensation, BEC dynamics, Nanoparticle, Astronomy, Solar polarimetry, Pulsar imaging, Space debris and NEO tracking, Fluorescence correlation spectroscopy (FCS), Astrophysics
Material science
Photoluminescence Spectroscopy, Mineralogy, Photovoltaic inspection,
Coherent anti-Stokes Raman spectroscopy (CARS), neutron tomography, Quantum Dots and Optics, Intrinsic, Spinning disk confocal imaging
