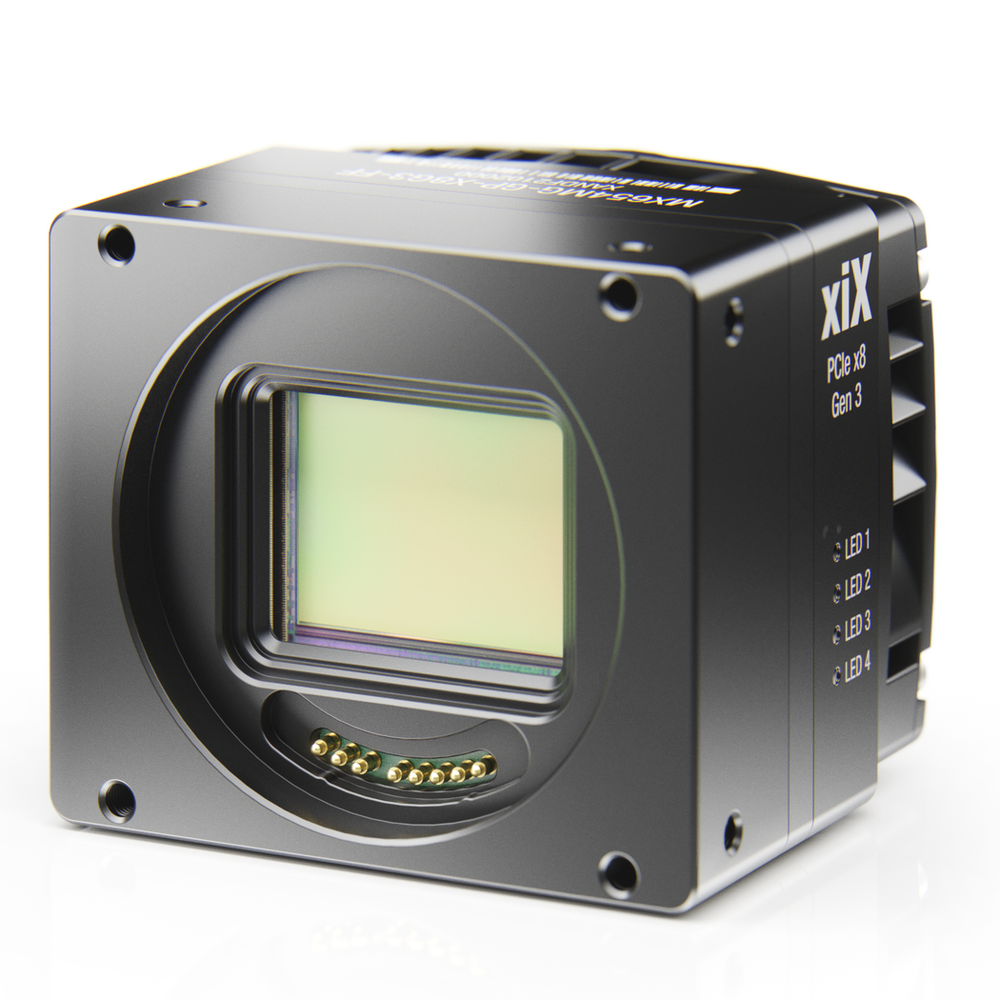

Gpixel GMAX3265 color 8K embedded camera

MTO - Made to order

65 Mpix, color
71 FPS @ 10bit
World's highest resolution Global shutter sensor
2.3" CMOS, Gpixel GMAX3265
High resolution and fast speed industrial camera
No Frame grabber with PCIe interface and 64 Gbps bandwidth
High Dynamic range, Low noise, minimal latency, DMA
With flat ribbon flex cable ideal for Embedded vision systems

More than 8K, compact, high speed camera for:

Flat panel inspection (FPD), printed circuit board (PCB) examination, Pill sorting (laser 3D method), solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports broadcast and entertainment, UAV and Autonomous, Unmanned vehicles, Photogrammetry, surveying, aerial or city mapping, 360 panorama and more.

Note: Check conditions for model with Taped Cover Glass sensor version

Brochure

Manual

Accessories

Camera family

Embedded pages

CONTACT SALES

Specifications:
Part Number	MX654CG-GP-X8G3-FF
Resolution	65 MP 9344 x 7000 pixels
Frame rates	71 fps (8bit), 71 fps (10bit), 31 fps (12bit)
Sensor model	GPixel GMAX3265 CC
Chroma	Color, RGB
Sensor type	CMOS
Sensor size	APS-C Format
Sensor active area	29.9 x 22.4 (Diagonal 37.4 mm)
Spectral range	400-1000 nm
Readout method	Global shutter
Pixel size	3.2 µm
Digitization	10 and 12 bits
Data interface	PCIe Gen3 x8 (64 Gbits)
Dynamic range	64 dB (at 12bits)
Full Well Capacity	9200 e-
Dark current	2.2 e-
Readout noise typ.	5.2 e- (at 12bits)
Signal to noise ratio	40 dB
Exposure range	17 µs to 1.05 s, step 5 µs
I/O Ports	GPIO 2IN, 2OUT, Serial Port
Power consumption	17 Watt
Lens mount	Optional accessory: Active EF-mount
Weight	290 grams
Dimensions WxHxD	60 x 70 x 42 mm
Cooling	Fan or Water module
