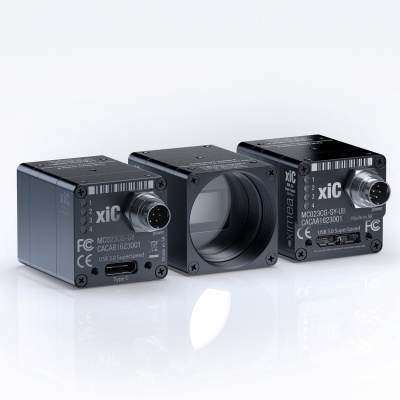

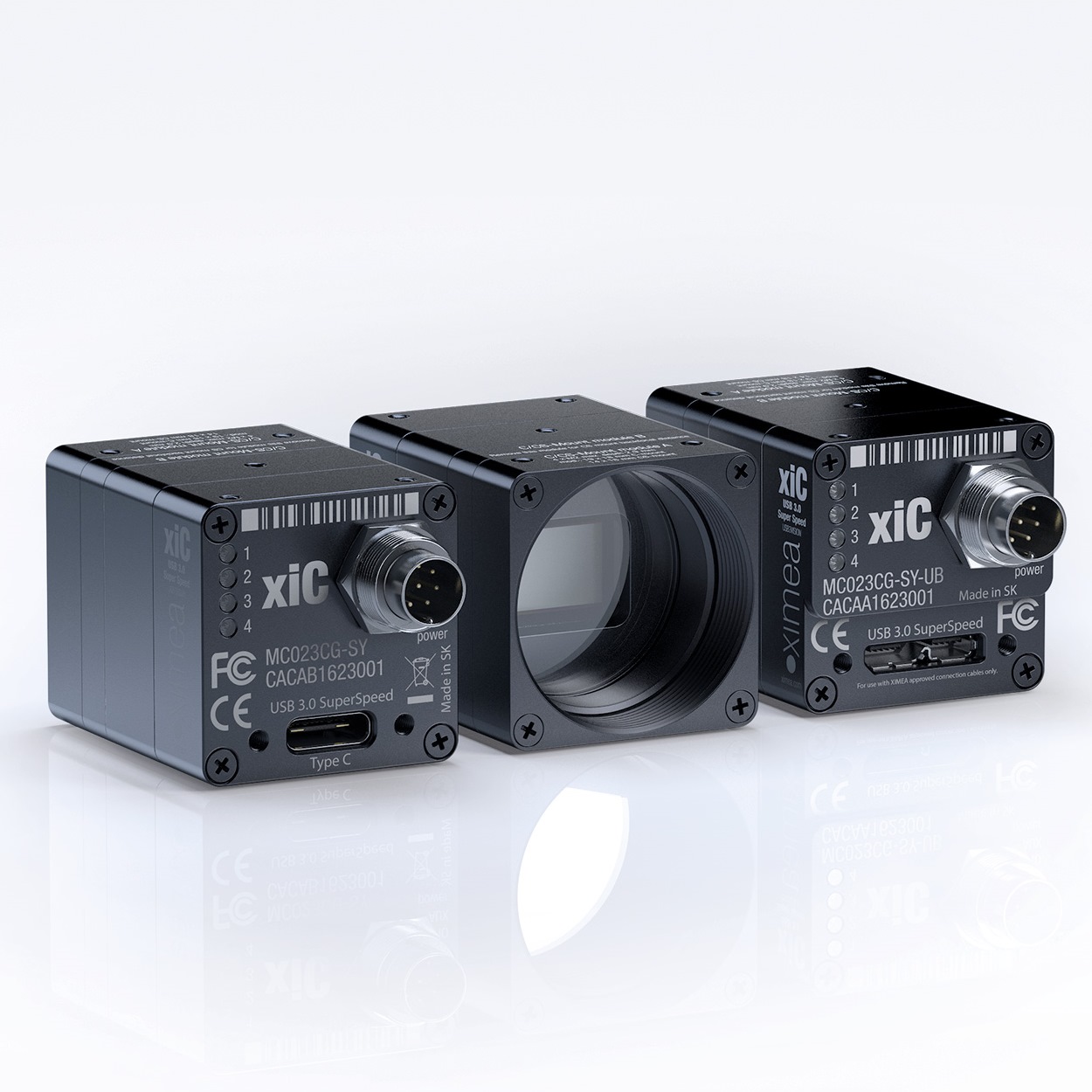

Sony IMX530 USB3 color HDR camera

Sony IMX530 USB3 color HDR camera
MTO - Made to order

  • Small dimensions: 26 x 26 x 31 mm
  • 24.5 Mpix at 15 fps
  • HDR - Dual ADC mode
  • USB3 Vision Compliant



24.5 MP Color BSI Sony CMOS Pregius S Camera with USB 3.1 Gen 1



High resolution camera Applications:

VR an AR, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Dental, Security, Biometrics and more



Brochure



Accessories



USB3 Zone



3D / 2D files



Manual



CONTACT SALES




Specifications:
Part Number MC245CG-SY-HDR
Resolution 24.5 MP 5320 x 4600
Frame rates 15 Fps (8 bit), 12 Fps (10 bit), 10 Fps (12 bit)
Sensor model Sony Pregius-S IMX530-AAQJ-C
Chroma Color HDR
Sensor type CMOS, BSI - Backside illuminated
Sensor size 1.2"
Sensor active area 14.58 x 12.6 mm
Readout method Global shutter
Pixel size 2.74 μm
Digitization 8, 10, 12
Data interface USB 3.1 Gen 1
Dynamic range 70 dB
Full Well Capacity 9500 e-
Readout noise typ. 2.1 e-
Exposure range 9µs to 30s, step 7µs
I/O Ports GPIO IN, OUT
Lens mount C-Mount or CS-mount
Dimensions WxHxD 26 x 26 x 31 mm
