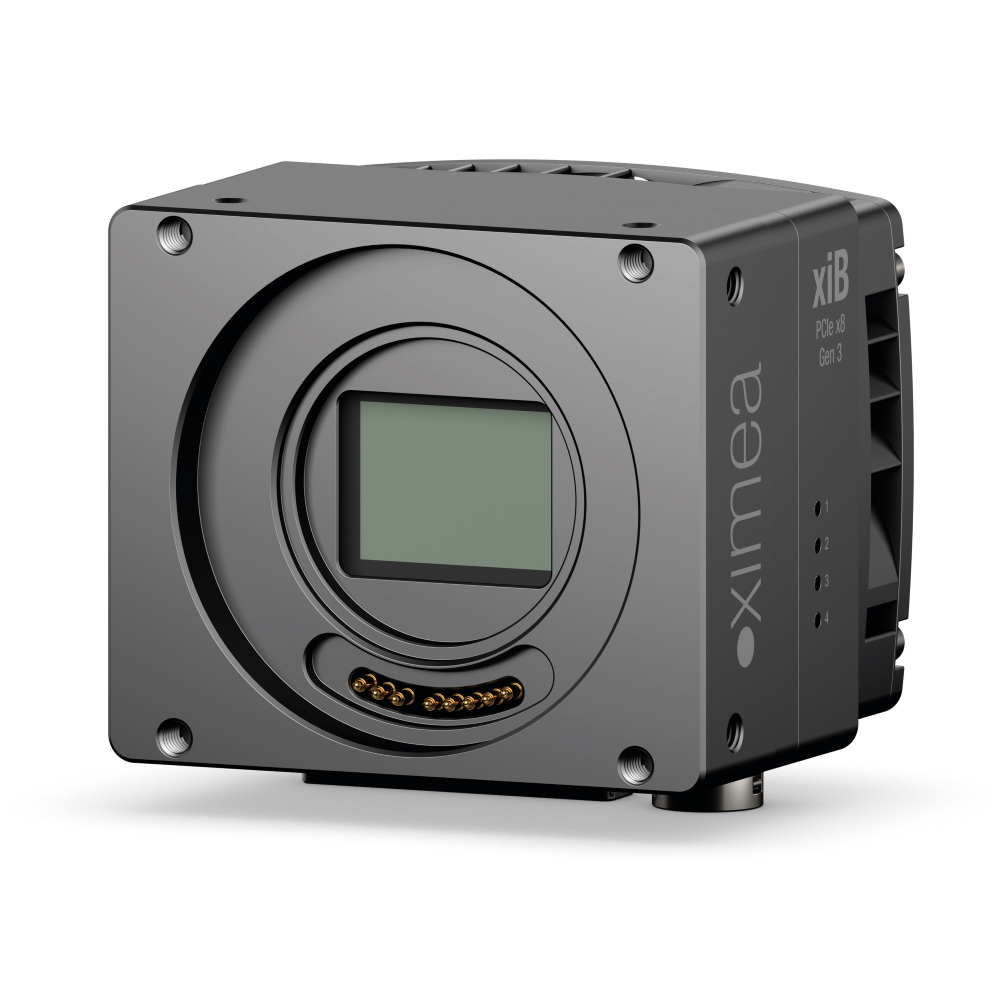

CB120RG-CM-X8G3
Product statusDeprecated
Sensor vendorCMOSIS
Sensor modelCMV12000
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate335 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Specification
|
Sensor properties
|
||
| Resolution | 12.5 MPix | |
| Sensor resolution | 4096 x 3072 | |
| Sensor vendor | CMOSIS | |
| Sensor model | CMV12000 | |
| Sensor type | NIR | |
| Sensor technology | CMOS | |
| Sensor size | APS-C | |
| Sensor active area | 22 x 16 mm | |
| Sensor diagonal | 28.2 mm | |
| Pixel size | 5.5 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 335 FPS | |
| Bits | 8, 10, 12 bits | |
| On-chip downsampling | 1x1, 2x2 | |
| On-chip decimation | 1x1, 2x2 | |
| Data interface speed | 63.04 Gbit/s | |
| Data connector type | PCIe-iPass-X8G3 | |
| GPIO count | Inputs: 6, Outputs: 6 | |
| Exposure minimum | 16 µs | |
| Exposure maximum | 82 s | |
| Power consumption | 17.8 Watt | |
| Heat dissipation | Optional Heatsink, Fan air cooling | |
| Sensor cooling | No | |
| Special features | NIR | |
| Frame buffer memory | 2 GB | |
|
EMVA 1288 results
|
||
| Dynamic range | 57.0710770829525 dB | |
| Full well Capacity | 13500 e- | |
| Saturation Capacity | 10343.0915626749 e- | |
| Readout noise | 13.7670426860851 e- | |
| Signal to noise ratio | 40.5173429340824 dB | |
| Peak QE | 50% | |
| Gain analog max | 63 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | EF-mount option | |
| Enclosure type | Standard housing | |

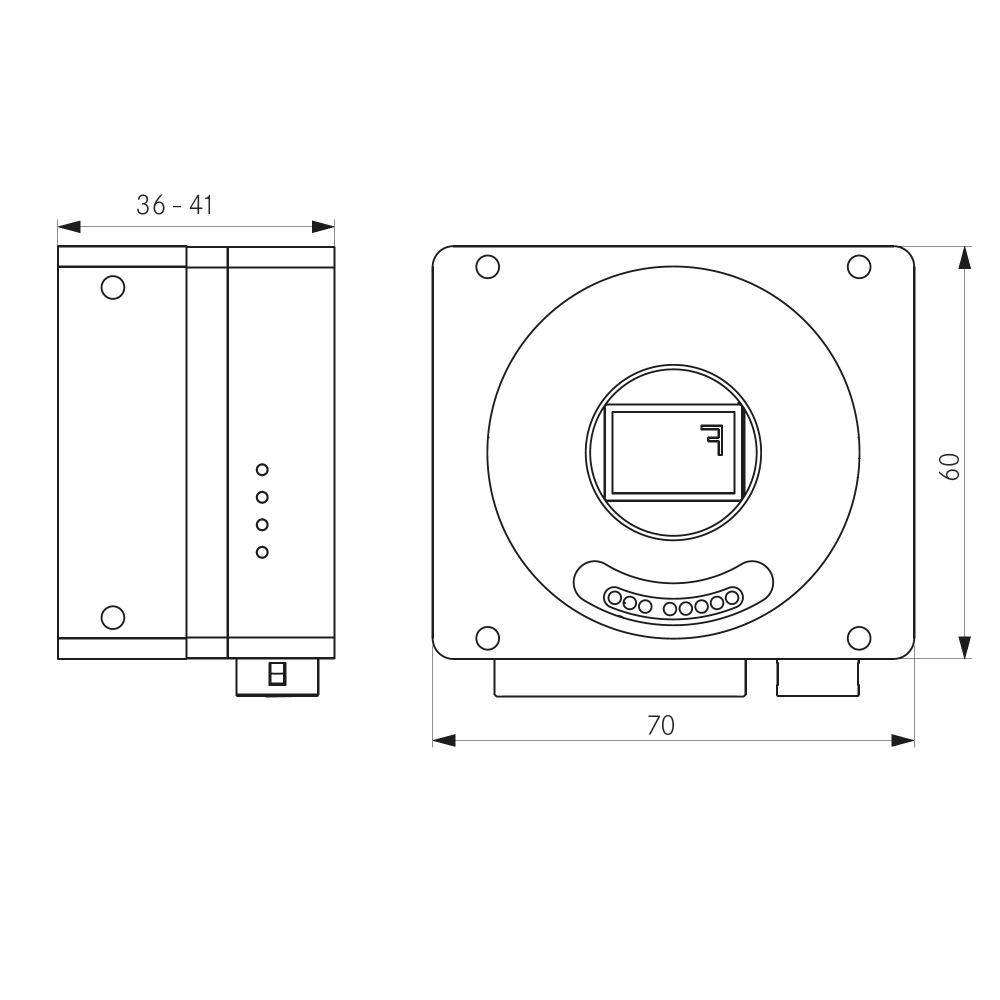

| Physical dimensions (WHD) | 70 x 60 x 40 mm | |
| Mass - weight | 280 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
