Sony IMX530 high speed color industrial camera

Sony IMX530 high speed color industrial camera
MTO - Make to order status
  • 24.5 Mpix at 105 fps

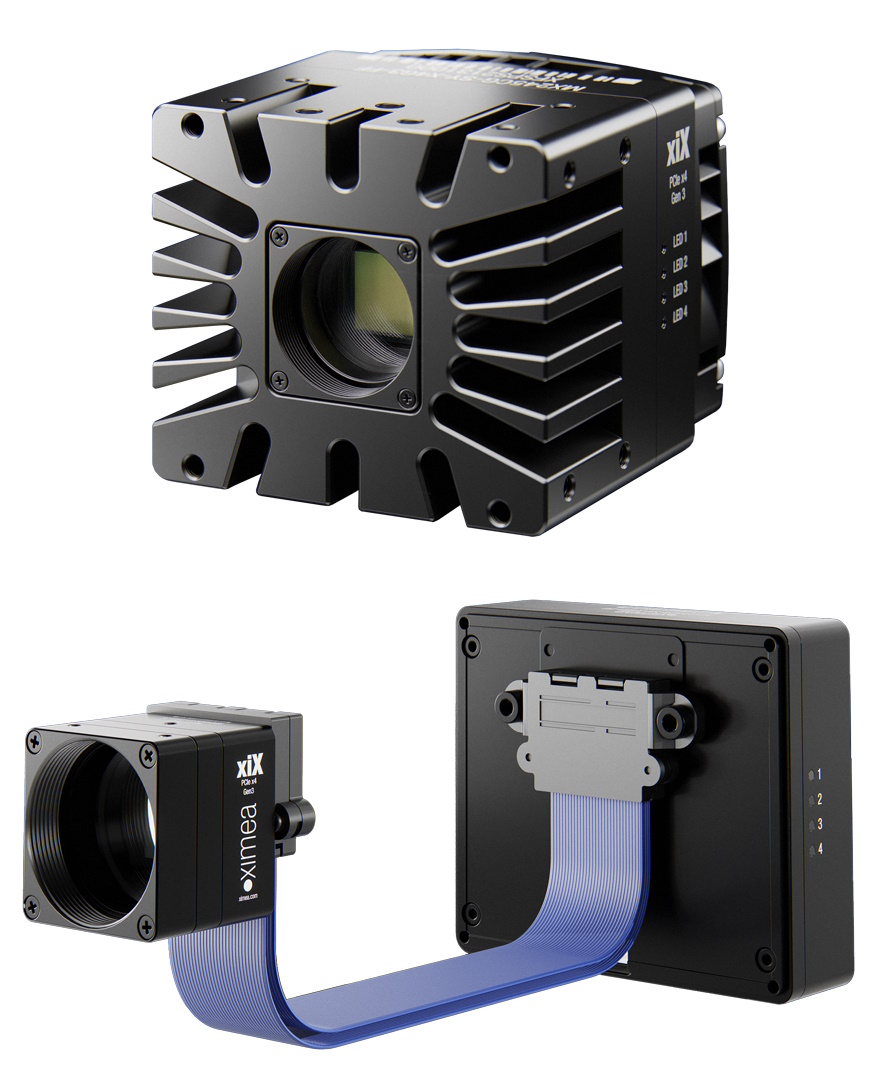

  • Small dimensions with detachable camera head
  • High dynamic range and low noise with BSI sensor technology
  • Buffer memory DDR4 - 2 GB
  • Additional features like Dual ADC - HDR mode


24.5 MP Color Sony Pregius S 4th Generation Camera

Check the support of Features like short interframe interval for Sony IMX530


High resolution camera Applications: VR an AR, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Dental, Security, Biometrics and more


Options with various types of Cooling - Liquid, Air or Heatsink.

Specifications are preliminary and subject to change



Firefly connection


MTP connection


2D drawing


3D Step





Part Number MX245CG-SY-X4G3-FF
Resolution 24.5 MP 5320 x 4600
Frame rates 105 Fps (8 bit), 102 (10 bit), 74 (12 bit)
Sensor model Sony Pregius-S IMX530 AAQJ-C
Chroma Color RGB
Sensor type CMOS, BSI - Backside illuminated
Sensor size 1.2"
Sensor active area 14.58 x 12.6 mm (Diagonal 19.3 mm)
Spectral range 400 - 1000 nm
Readout method Global Shutter
Pixel size 2.74 x 2.74 μm
Digitization 8, 10, 12 bit
Data interface PCI Express Gen3 x4 (PCIe)
Dynamic range 70 dB
Full Well Capacity 9500 e-
Readout noise typ. 2.1 e-
Signal to noise ratio 39.71 dB
Gain range 24 dB
Exposure range 9µs to 30s, step 7µs
I/O Ports GPIO 2IN, 2OUT
Power consumption 15 Watt
Lens mount C-Mount
Weight 395 gram
Dimensions WxHxD 70 x 60 x 72 mm
Cooling Fan or Heatsink
