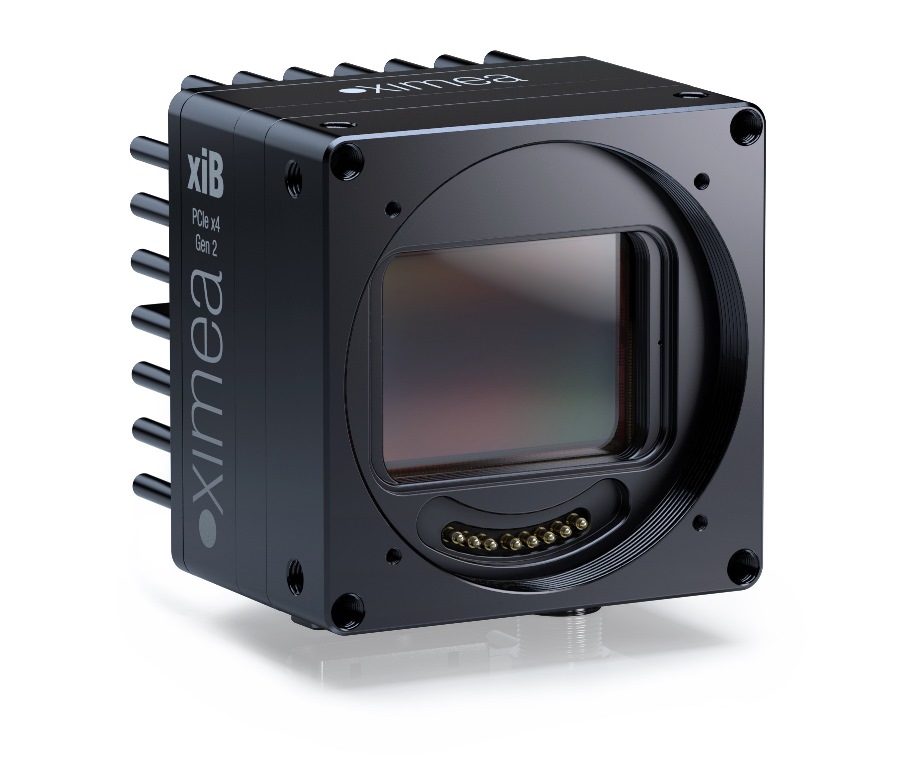

CMOSIS CMV20000 mono 5K industrial camera

CMOSIS CMV20000 mono 5K industrial camera
  • 20 Megapixels Monochrome CMOS camera with CMOSIS CMV20000
  • PCIe speed of 20 Gbit/s allows 33 Fps at 12 bit


5K, compact, high resolution camera for: Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.


With flat ribbon flex cable (xiX line) ideal for Embedded vision systems.





Support pages



Resolution 20 MP 5120 x 3840 pixel
Sensor type CMOS B/W
Sensor model CMOSIS CMV20000
Sensor size 41mm
Sensor active area 32.77 x 24.58mm
Pixel size 6.4 x 6.4 μm
Bits per pixel 12 bits
Dynamic range 66 dB
Exposure range 100us
Frame rates 33 Fps
Image data interface PCI Express (PCIe)
Data I/O 2IN/2OUT
Power requirements 6 Watt
Lens mount EF-mount
Weight 175 grams
Dimensions WxHxD 60 x 60 x 38 mm
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
