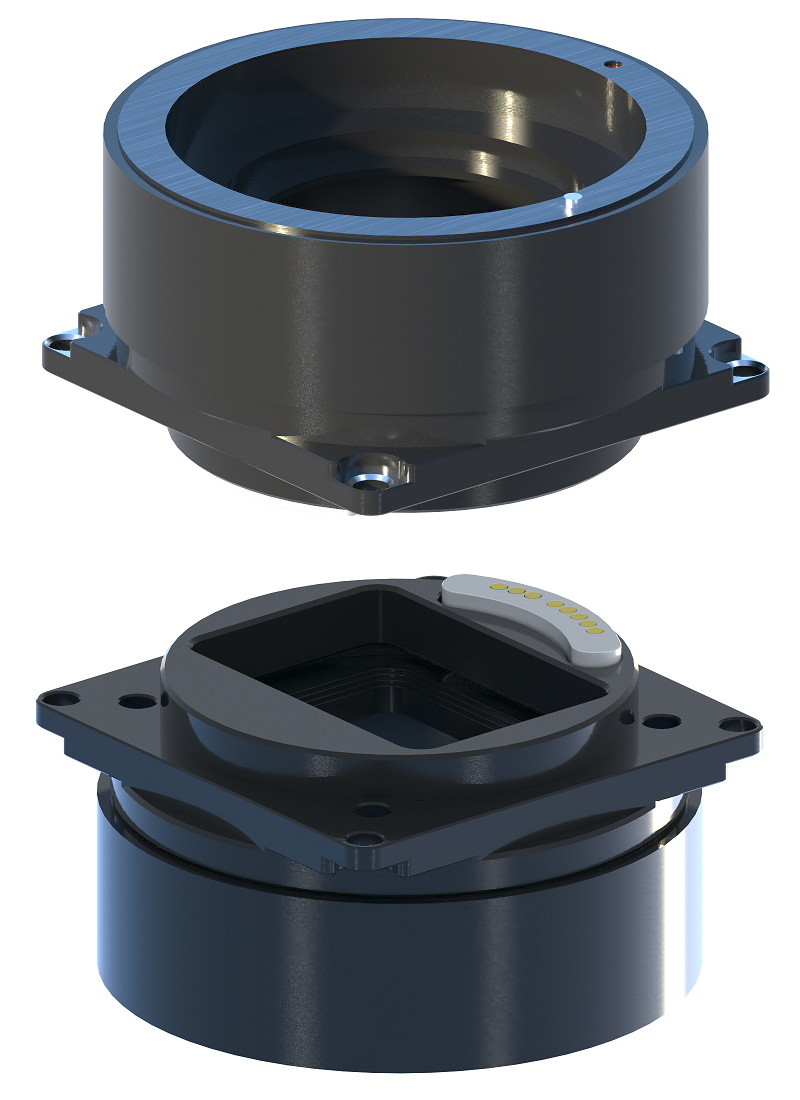

Active EF-mount lens adapter

Active EF-mount lens adapter
  • EF-mount with Active pins to control the lens
  • Allows remote control of aperture, focus and image stabilization
  • Ideal for Canon lenses, can be used with other EF
  • Comes with a protection cap
  • Use 4x SLH-M4-6-SD or DIN912 M4 6mm screws to attach to camera
  • Nominal flange focal distance from the front of adapter to active sensor area: 44,00mm +0 -0.2mm
  • Lens adapter for xiB-64xiB and xiT cameras
  • Measures: 60 x 60 x 36 mm
  • Weight 158 gram
  • Part number: MECH-60MM-EF-ADAPTER-KIT


3D Model


Mechanical drawing


Camera line brochure
