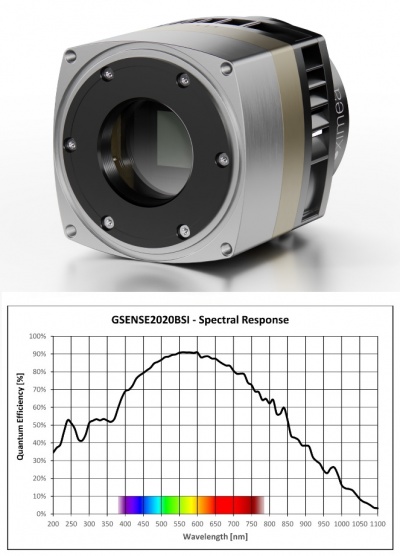

Gpixel GSENSE2020BSI Cooled Back illuminated USB3 camera

Gpixel GSENSE2020BSI Cooled Back illuminated USB3 camera
MTO - Made to order
  • 4.2 Mpix, 1.2" Backside illuminated sensor
  • sCMOS sensor - Gpixel GSENSE2020 BSI
  • Ultra compact Scientific CMOS camera with Peltier TEC Cooling
  • Quantum efficiency - up to 91%
  • Incredible speed with USB3 interface
  • High Dynamic range with FWC and extremely Low noise


Specifications are preliminary and subject to change


Scientific grade sCMOS, compact camera for Material and Life sciences like:

Spinning disk confocal imaging, Genomics, High Speed Multicolor and Light Sheet Fluorescence, FRET, FRAP, FISH, TIRF, Cell Biology, Biochip reading, PALM, STORM, dSTORM, GSDIM, SPIM and Widefield Microscopy, Astronomy, Protein/Lipid Trafficking, Voltage Sensitive Dyes, Quantum Dots, Membrane Dynamics, Ion Transport Physiology, Photovoltaic inspection, Mineralogy, OCT, FCS, gSTED, CARS, Digital pathology, Ophthalmology, Electrophysiology, Biophysics, Phosphorescence, Photoluminescence Spectroscopy, Biometrics, Endoscopy and Biomedical, Nanoparticle, Intrinsic, Ratiometric, Calcium imaging.



Models page




Support page



Part Number MJ042MR-GP-P6-BSI
Resolution 4.2 MP 2048 x 2048 pixels
Frame rates 60 Fps
Sensor model Gpixel GSENSE2020 BSI
Chroma Monochrome
Sensor type Scientific CMOS (sCMOS) Backside illuminated
Sensor size 1.2"
Sensor active area 13.3 x 13.3 (18.8 mm Diagonal)
Spectral range 200 - 1100 nm
Readout method Rolling shutter
Pixel size 6.5 μm
Digitization 2x 12 (16 Bit from API)
Data interface USB3 Gen1 Type-C connector
Dynamic range up to 90 dB (HDR mode)
Full Well Capacity 57 000 e-
On-chip binning Up to 4x4
Dark current 0.2 e- (at -20°C)
Readout noise typ. down to 1.8 e-
Signal to noise ratio 48 dB
Gain range 0 - 25 dB
Exposure range 20 μs to 2000 s
I/O Ports 1 GPI and 1 GPO Isolation potential 50VDC
Power consumption 3.5 W - 16 W with Cooling
Lens mount C-mount or M42
Weight 170 grams
Dimensions WxHxD 52 x 52 x 62 mm
Cooling Up to -25°C (with Peltier TEC)
