COMPACT
The ratio of the camera’s size and weight to focal plane area is the best in its class. Camera dimensions are as close to sensor size as possible.
MX610MR-SY-X4G3-FF
Large sensor BSI camera with 61 Mpix Monochrome 35mm Full Frame SONY IMX455
Specifications
Product statusActive
Sensor vendorSONY
Sensor modelIMX455
Sensor technologyCMOS
Shutter typeRolling shutter, Global reset release
Frame rate17 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
EFFICIENT
Large Sony sensors are absolutely remarkable in their imaging qualities, offering quantum efficiency up to 90 % thanks to the backside illuminated design.
FUNCTIONAL
Based on the sensor functionality, the cameras utilize a full range of features making it possible to select 12, 14 or 16 bit readout as well as 2x2 or 3x3 Binning and ROI
ADAPTABLE

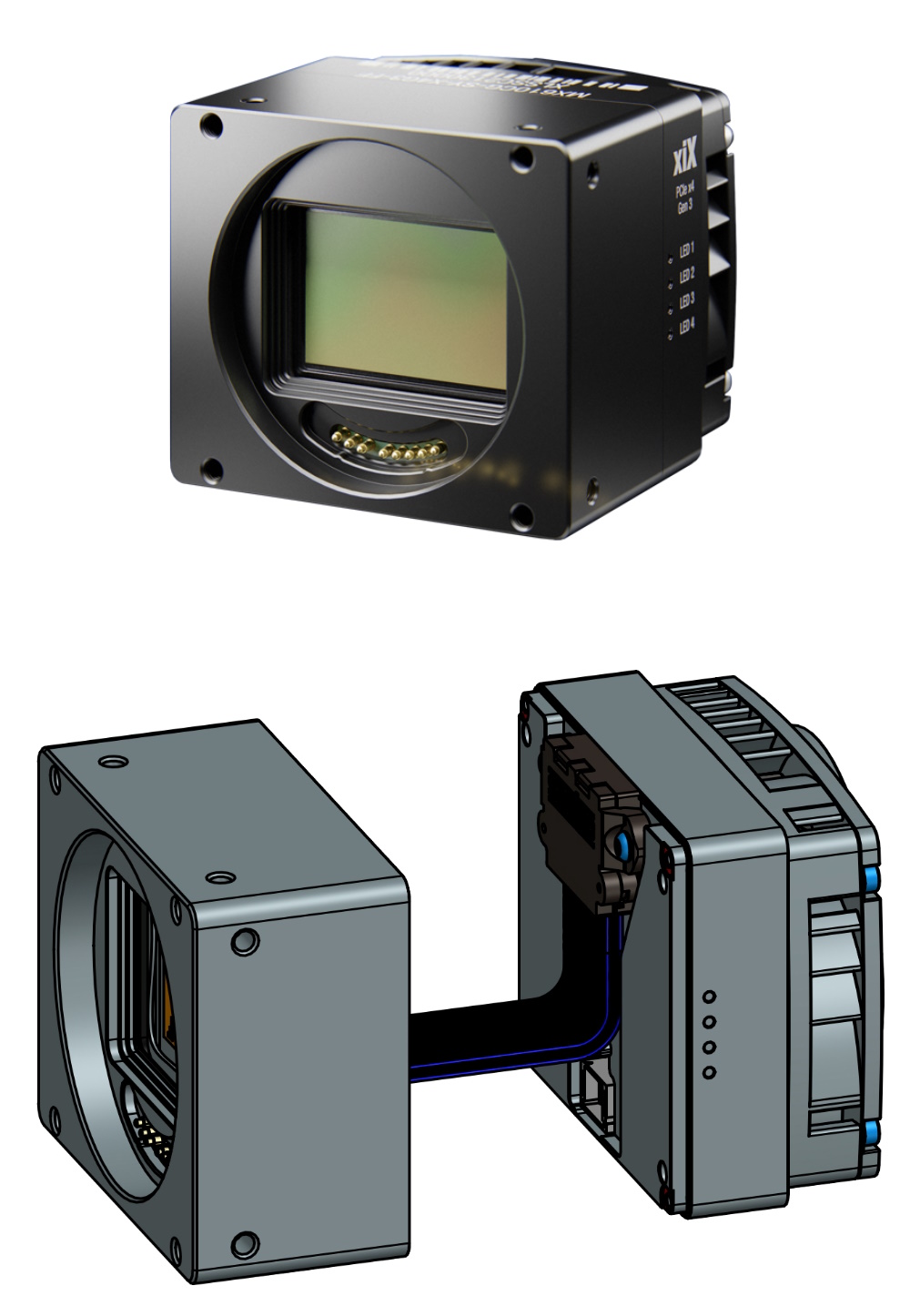

The removable sensor head can be detached from the main camera electronics minimizing the effects of heat while still minimizing read noise to the 1e- range.
|
Sensor properties
|
||
| Resolution | 61 MPix | |
| Sensor resolution | 9568 x 6380 | |
| Sensor vendor | SONY | |
| Sensor model | IMX455 | |
| Sensor type | Monochrome | |
| Sensor technology | CMOS | |
| Sensor size | 35mm Full Frame | |
| Sensor active area | 35 x 23 mm | |
| Sensor diagonal | 43.2 mm | |
| Pixel size | 3.76 µm | |
| Shutter type | Rolling shutter, Global reset release | |
|
Camera properties
|
||
| Frame rate | 17 FPS | |
| Bits | 12, 14, 16 bits | |
| On-chip downsampling | 3x3 | |
| Interface | PCIe X4 Gen 3 | |
| Data interface speed | 32 Gbit/s | |
| Data connector type | PCIe-FireFly-X4G3 | |
| GPIO count | Inputs: 6, Outputs: 6 | |
| Exposure minimum | 18 µs | |
| Exposure maximum | 12 s | |
| Power consumption | 13.5 Watt | |
| Heat dissipation | Fan air cooling | |
| Sensor cooling | No | |
| Special features | Taped glass, Backside illumination | |
|
EMVA 1288 results
|
||
| Dynamic range | 82.01 dB | |
| Full well Capacity | 51000 e- | |
| Saturation Capacity | 47070 e- | |
| Readout noise | 3.23 e- | |
| Signal to noise ratio | 46.76 dB | |
| Peak QE | 91% 460nm | |
| Gain analog max | 36 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | EF-mount option | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 70 x 60 x 48.6 mm | |
| Mass - weight | 345 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor 3D mapping, Wide area motion imaging, stadium and border surveillance.
Portable
Autonomous, self-driving, Unmanned aerial vehicles (UAV) and Unmanned aircraft systems (UAS), Advanced driver assistance systems (ADAS), drones.
Broadcasting
Cinematography, Entertainment, Instant replays and rapid process capturing, e.g. golf, hockey, ping pong, baseball, tennis, football, basketball and more.
Quality inspection
Flat panel display (FPD), Printed circuit board (PCB) examination, Solar panel, Photovoltaics, Semiconductor wafer, Metrology, Print and Film scanning.
