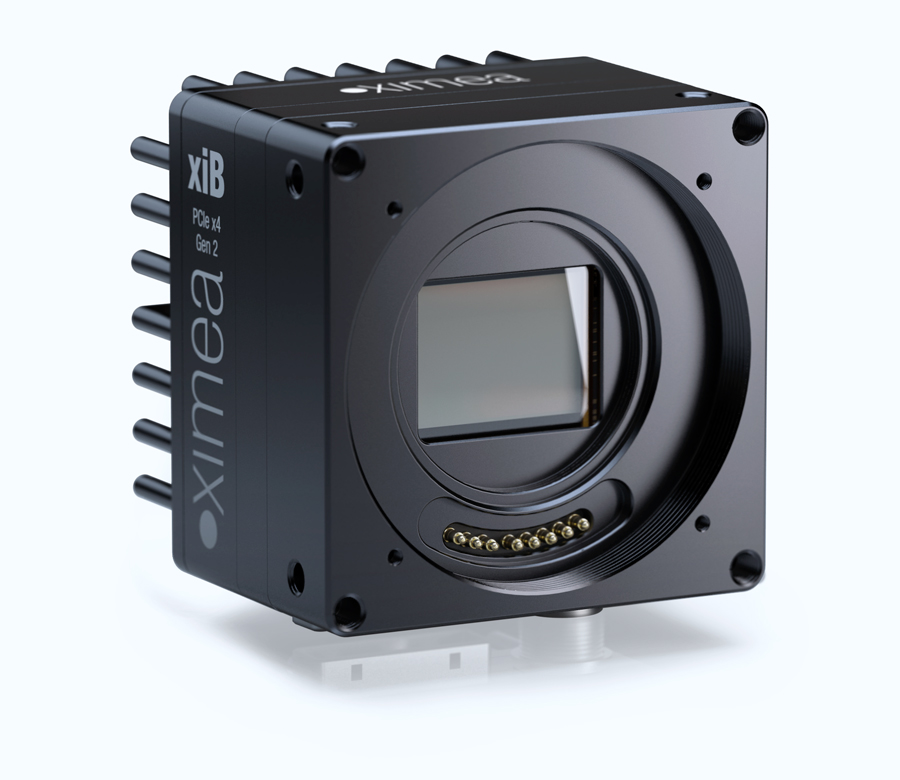

CB120CG-CM

CB120CG-CM
  • 12 Megapixels Color CMOS camera with CMOSIS CMV12000
  • PCIe speed of 20 Gbit/s allows 133 Fps @8bit or 100 Fps at 10 bit



4K, compact, high speed camera for: Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.



With flat ribbon flex cable (xiX line) ideal for Embedded vision systems.

Check conditions for the Taped Cover Glass (without microlens) sensor model.

Brochure



Manual



Support pages



CONTACT SALES



With flat ribbon flex cable (xiX line) ideal for Embedded vision systems.


Specifications:
Resolution 12 MP 4096 x 3072 pixel
Sensor type CMOS RGB Color
Sensor model CMOSIS CMV12000
Sensor size 28 mm
Sensor active area 22.5 x 16.9 mm
Pixel size 5.5 μm
Bits per pixel 8, 10, 12
Dynamic range 60 dB
Signal to noise ratio 41,3 dB
Exposure range 20us
Frame rates 130 Fps (8 bit)
Image data interface PCI Express (PCIe)
Data I/O 2IN/2OUT
Power requirements 8 Watt
Cooling Heatsink optional
Lens mount Active EF-mount
Weight 175 grams
Dimensions WxHxD 60 x 60 x 38 mm
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
Last Updated: 24 May 2017, 13:36
