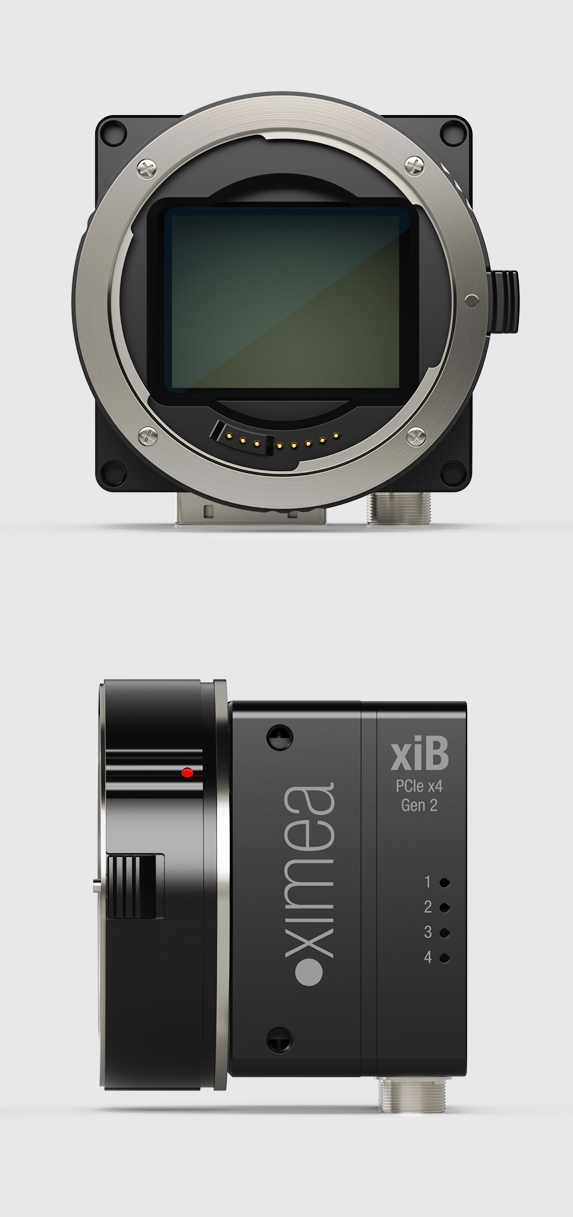

CMOSIS CMV50000 mono 8K industrial camera

CMOSIS CMV50000 mono 8K industrial camera
  • 50 Megapixels Monochrome CMOS camera with CMOSIS CMV50000
  • PCIe speed of 20 Gbit/s allows 22 Fps at 12 bit


8K, compact, high resolution camera for: Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.


With flat ribbon flex cable (xiX line) ideal for Embedded vision systems.





Support pages



Resolution 47.5 MP 7920 x 6004
Sensor type CMOS B/W
Sensor model CMOSIS CMV50000
Sensor size 35 mm
Sensor active area 36.4 x 27.6 mm
Pixel size 4.6 μm
Bits per pixel 12
Dynamic range 64 dB
Frame rates 26 Fps (10 bit)
Image data interface PCI Express (PCIe)
Data I/O 2IN/2OUT
Power requirements 9 Watt
Cooling Heatsink optional
Lens mount Active EF-mount
Weight 175 grams
Dimensions WxHxD 60 x 60 x 38 mm
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
Last Updated: 19 January 2018, 19:44
