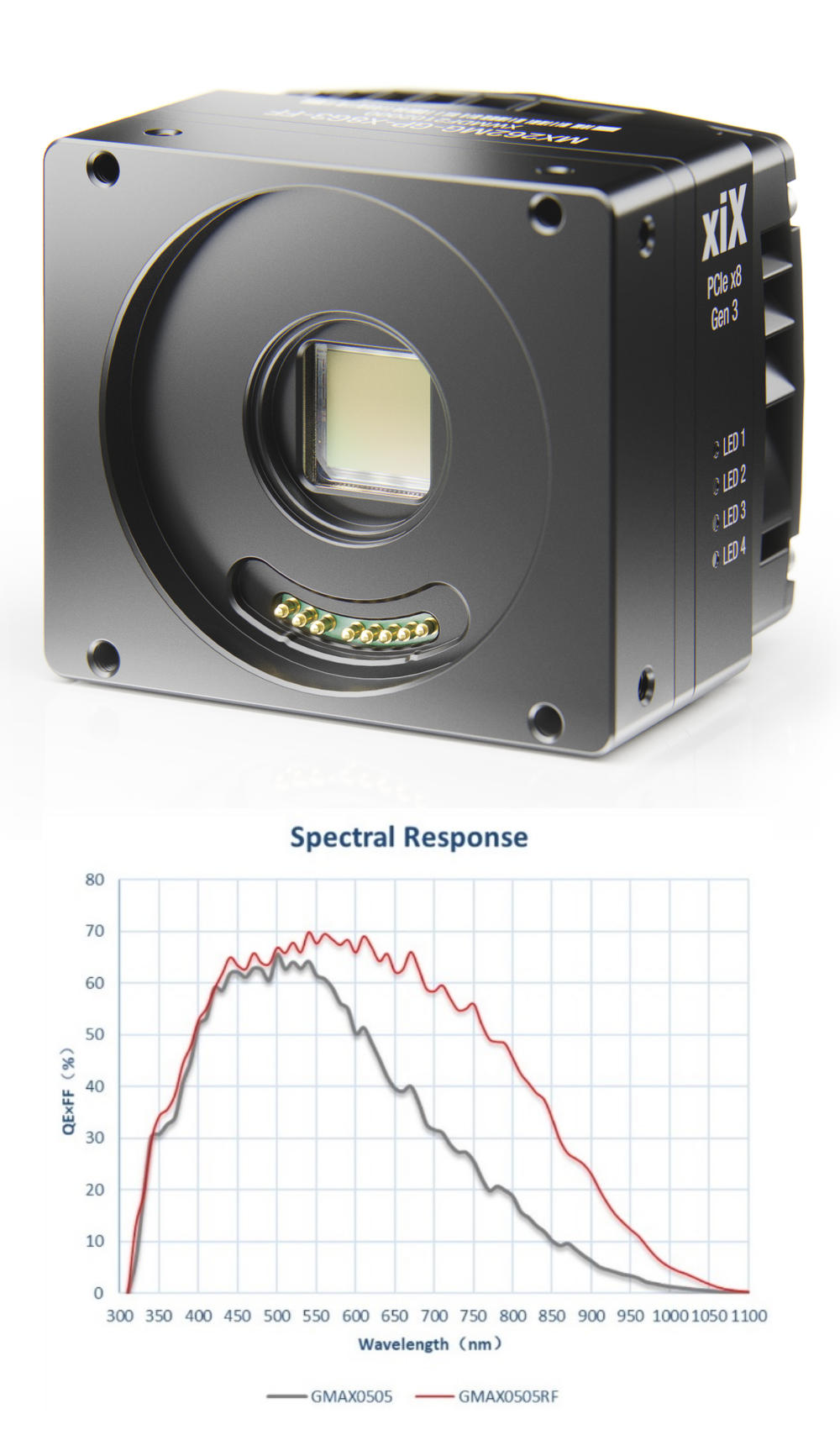

Gpixel GMAX0505 mono NIR 5K embedded camera

Gpixel GMAX0505 mono NIR 5K embedded camera
MTO - Made to order
  • 26 Mpix monochrome NIR - Near Infrared Enhanced
  • 150 FPS @ 10bit
  • World's smallest Global shutter pixel with only 2.5 µm
  • 1.1" CMOS sensor: Gpixel GMAX0505
  • High resolution and fast speed industrial camera
  • No Frame grabber with PCIe interface and 64 Gbps bandwidth
  • High Dynamic range, Low noise, minimal latency, DMA
  • With flat ribbon flex cable ideal for Embedded vision systems


5K compact, high speed camera for:

Flat panel inspection (FPD), printed circuit board (PCB) examination, Pill sorting (laser 3D method),  solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports broadcast and entertainment, UAV and Autonomous, Unmanned vehicles, Photogrammetry, surveying, aerial or city mapping, 360 panorama and more.


Note: Check conditions for Taped Cover Glass sensor model








Camera family


Embedded pages




Part Number MX262RG-GP-X8G3-FF
Resolution 26.2 MP 5120 x 5120 pixels
Frame rates 150 fps @ 10 bit, 40 @ 12 bit
Sensor model GPixel GMAX0505RF Red Fox
Chroma Monochrome NIR - Near Infrared Enhanced
Sensor type CMOS
Sensor size 1.1"
Sensor active area 12.8 x 12.8 mm (Diagonal 18.1 mm)
Spectral range 300 - 1100 nm
Readout method Global shutter
Pixel size 2.5 µm
Digitization 10 and 12 bits
Data interface PCIe Gen3 x8 (64 Gbits)
Dynamic range 63 dB (at 12bits)
Full Well Capacity 6500 e-
Dark current 4 e- (at 12bits)
Signal to noise ratio 36 dB (at 12bits)
Exposure range 11 - 1050000 µs
I/O Ports GPIO 2IN, 2OUT, Serial Port
Power consumption 14 Watt maximum
Lens mount C-mount or Canon EF-mount, via optional adapter
Weight 250 grams
Dimensions WxHxD 60 x 70 x 42 mm
Cooling Fan or Water module
