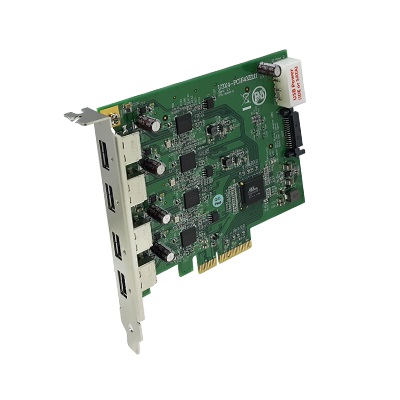

4x PCI express adapter

4x PCI express adapter
  • Host Bus: PCIe x4 Gen 2 (20.0 Gb/s) = Four (4) 5 Gb/s USB 3.0 slots
  • Fresco FL1100 x4 independent USB 3.0 Host Controllers
  • Compliant with USB 3.0 Specification 1.0 and with Extensible Host Controller Interface (xHCI) Specification revision 1.0 and it is also backward compatible with USB 2.0 and USB 1.1
  • 4-pin DC+12V bus power connector and SATA 15pin Power Connector
  • Supplies 900mA of power per USB port
  • Full line rate on all Ports
  • Link power management states: L0, L0s, L1, L2/L3 Ready, and L3
  • Supports PCI Express Card Electromechanical Specification Revision 2.0
  • 4 downstream USB ports support SS/HS/FS/LS data rates (5Gbps/480Mbps/12Mbps/1.5Mbps)
  • Host Bus: PCIe x4 Gen 2 (20.0 Gb/s) Compliant with PCI Express Base 2.0
  • WHQL certified driver support for Windows 7, 8, Vista and XP
  • Linux xHCI support under Linux kernel version 2.6.31 and after
  • Supports UASP (USB Attached SCSI Protocol)
  • Four USB 3.0 Cable Ports (A-type Receptacle)
  • Provides USB 3.0 cable port lock mechanism (IOI Standard: One Screwlock)
  • Suitable for cameras from: xiQxiCxiSpec and xiD family

System Diagram
