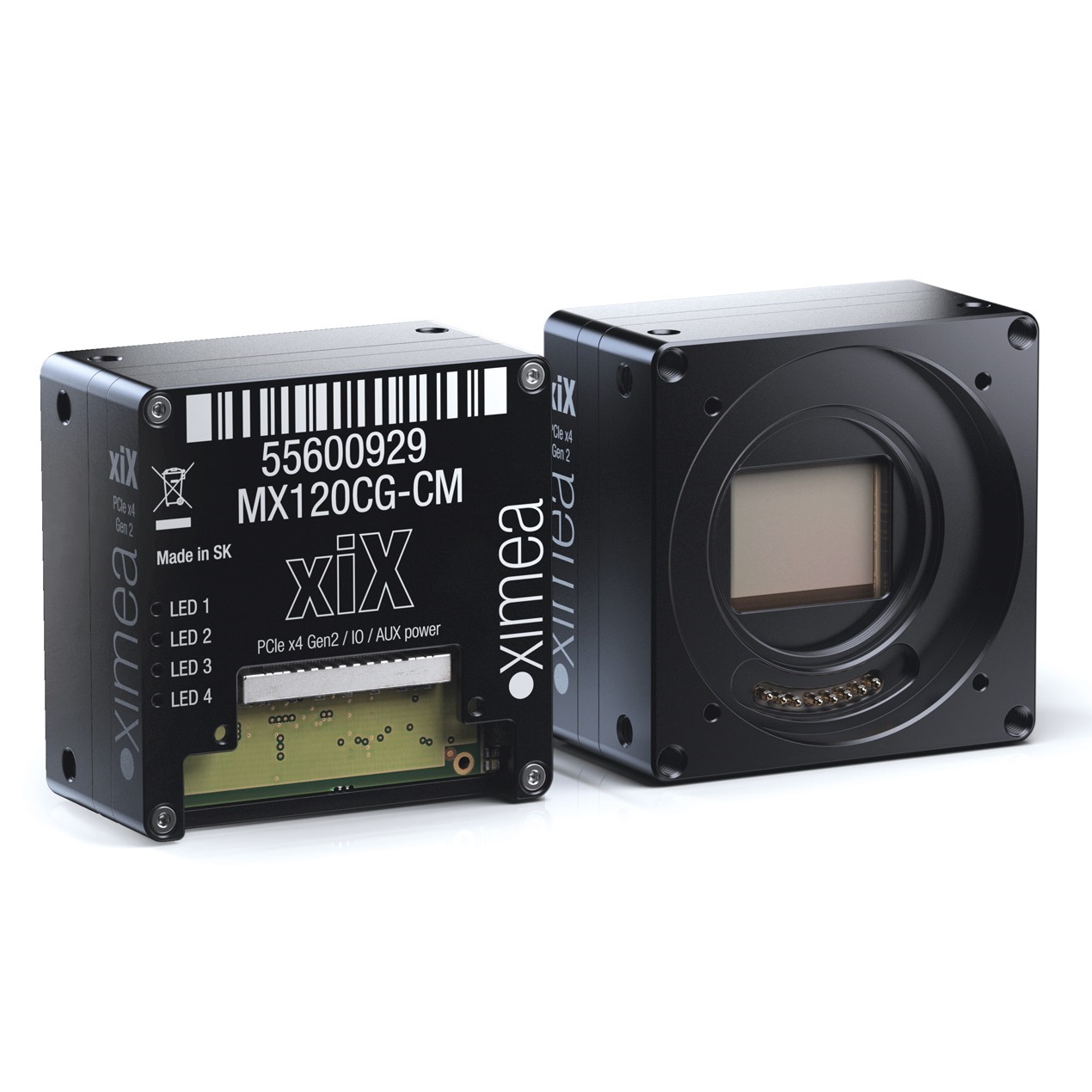

MX500CG-CM-X4G2
Embedded camera with 47.5 Mpix Color CMOSIS CMV50000 sensor and PCIe Gen 2 interface
Product statusActive
Sensor vendorCMOSIS
Sensor modelCMV50000
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate30 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Highlights
PRECISE
Global shutter Pregius™ sensors deliver outstanding imaging quality.
LEIGHT-WEIGHT
Payload-friendly SWaP for mobile, robotics, gimbals, or UAV/UAS applications.
OMNIPRESENT
Compatible with the xiSwitch. Built for maximum flexibility and with multi camera setups in mind, ideal for Photogrammetry and VR.
DIVERSE
Wide range of Sony Pregius™ global shutter sensors from 2 Mpix to 24 Mpix.
Specification
|
Sensor properties
|
||
| Resolution | 47.5 MPix | |
| Sensor resolution | 7920 x 6004 | |
| Sensor vendor | CMOSIS | |
| Sensor model | CMV50000 | |
| Sensor type | Color | |
| Sensor technology | CMOS | |
| Sensor size | 35mm Full Frame | |
| Sensor active area | 36 x 27 mm | |
| Sensor diagonal | 45.7 mm | |
| Pixel size | 4.6 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 30 FPS | |
| Bits | 12 bits | |
| On-chip downsampling | 2x2 | |
| On-chip decimation | 2x2 | |
| Interface | PCIe Gen 2 | |
| Data interface speed | 16 Gbit/s | |
| Data connector type | PCIe-Flex-X4G2 | |
| GPIO count | Inputs: 6, Outputs: 6 | |
| Exposure minimum | 100 µs | |
| Exposure maximum | 17 s | |
| Power consumption | 9.0 Watt | |
| Heat dissipation | Optional Heatsink | |
| Sensor cooling | No | |
|
EMVA 1288 results
|
||
| Dynamic range | 63.7 dB | |
| Full well Capacity | 14500 e- | |
| Saturation Capacity | 13382.4 e- | |
| Readout noise | 8.1 e- | |
| Signal to noise ratio | 41.5 dB | |
| Peak QE red | 45% 600nm | |
| Peak QE green | 55% 500nm | |
| Peak QE blue | 49% 450nm | |
| Gain analog max | 63 dB | |
|
Mechanical properties
|
||
| Lens mount | C-mount, EF-mount option | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 60 x 60 x 33.4 mm | |
| Mass - weight | 179 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Common features
Applications
Ultra-fast scanning
3D and Facial action coding scanning (FACS), Face recognition, Eye Tracking, Body scanner, People counting. High definition Motion capture.
VR and AR
Virtual and augmented reality: 360 spherical Panorama, cyclorama imaging, HMC - head mounted camera, Stereo camera systems.
Robotics
Accurate robotic arms, Deep learning tasks, Portable medical devices and Remotely controlled miniature robots, Alignment and assembly.
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor 3D mapping, Wide area motion imaging, stadium and border surveillance.
Portable
Autonomous, self-driving, Unmanned aerial vehicles (UAV) and Unmanned aircraft systems (UAS), Advanced driver assistance systems (ADAS), drones.
Broadcasting
Cinematography, Entertainment, Instant replays and rapid process capturing, e.g. golf, hockey, ping pong, baseball, tennis, football, basketball and more.
Quality inspection
Flat panel display (FPD), Printed circuit board (PCB) examination, Solar panel, Photovoltaics, Semiconductor wafer, Metrology, Print and Film scanning.
LoLa
Ideal for Low Latency audio and visual streaming systems used in Education or Commercial Film, Television and Studio Production.
