Large sensor BSI camera with 245.7 Mpix Monochrome 4.1" SONY IMX811

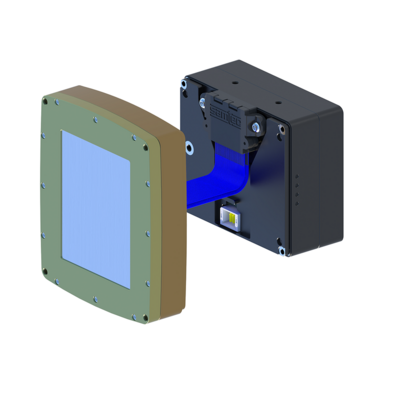

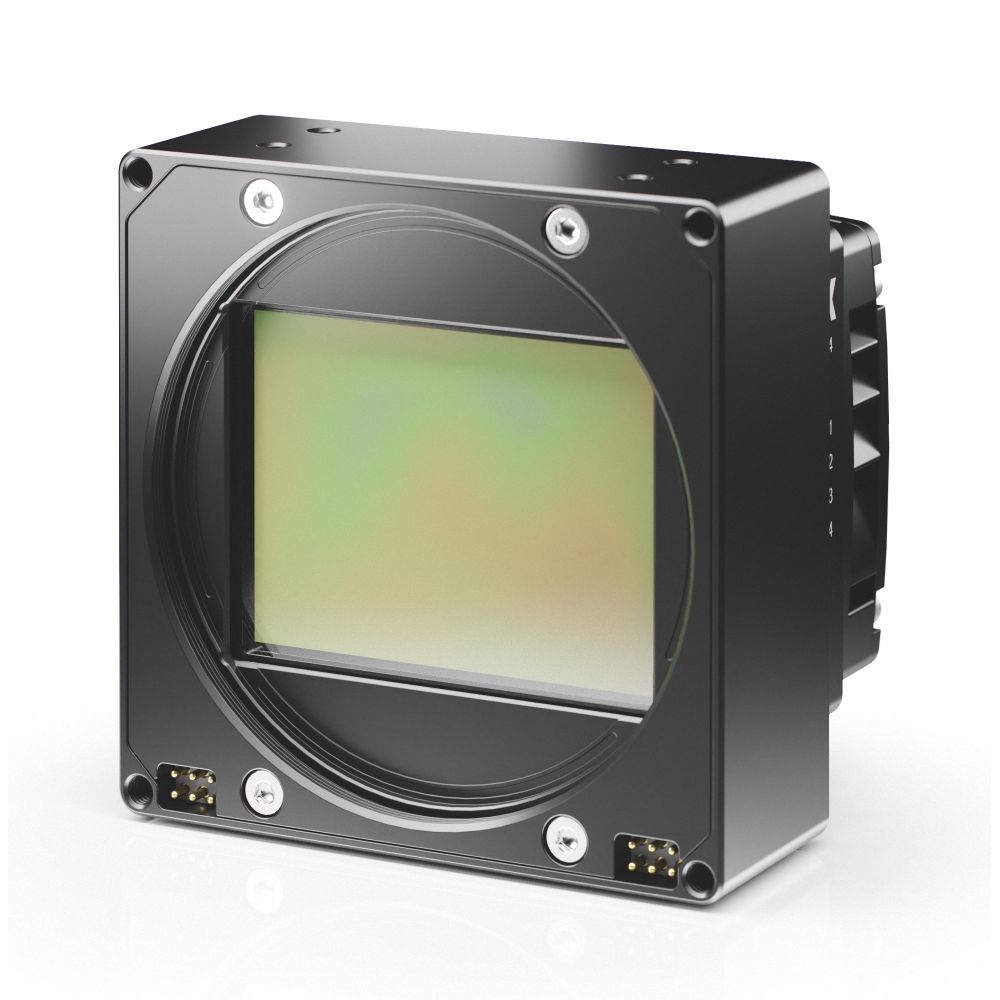

Name: SONY IMX811 PCIe mono large format BSI embedded camera
SKU: 3866

Product statusTechnical Sample

Sensor vendorSONY

Sensor modelIMX811

Sensor technologyCMOS

Shutter typeRolling shutter, Global reset release

Frame rate10 FPS

Overview Variants Accessories Links and downloads Contact

Overview

Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.

COMPACT

The ratio of the camera’s size and weight to focal plane area is the best in its class. Camera dimensions are as close to sensor size as possible.

EFFICIENT

Large Sony sensors are absolutely remarkable in their imaging qualities, offering quantum efficiency up to 90 % thanks to the backside illuminated design.

FUNCTIONAL

Based on the sensor functionality, the cameras utilize a full range of features making it possible to select 12, 14 or 16 bit readout as well as 2x2 or 3x3 Binning and ROI

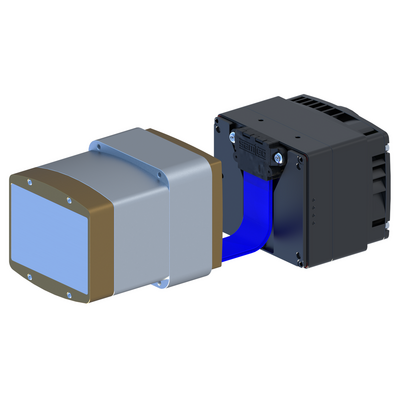

ADAPTABLE

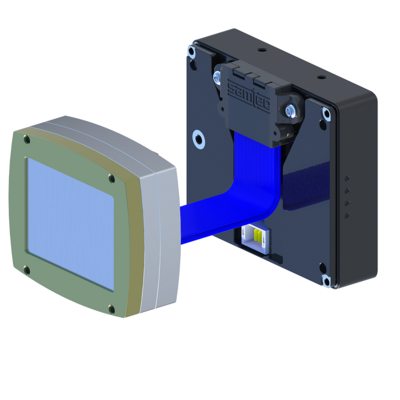

The removable sensor head can be detached from the main camera electronics minimizing the effects of heat while still minimizing read noise to the 1e- range.

Sensor properties
Resolution	245.7 MPix
Sensor resolution	19200 x 12800
Sensor vendor	SONY
Sensor model	IMX811
Sensor type	Monochrome
Sensor technology	CMOS
Sensor size	4.1"
Sensor active area	53 x 35 mm
Sensor diagonal	64.8 mm
Pixel size	2.81 µm
Shutter type	Rolling shutter, Global reset release

Camera properties
Frame rate	10 FPS
Bits	10, 12, 14, 16 bits
On-chip downsampling	2x2
Interface	PCIe X4 Gen 3
Data interface speed	32 Gbit/s
Data connector type	PCIe-FireFly-X4G3
GPIO count	Inputs: 6, Outputs: 6
Exposure minimum	247 µs
Exposure maximum	12 s
Power consumption	18.3 Watt

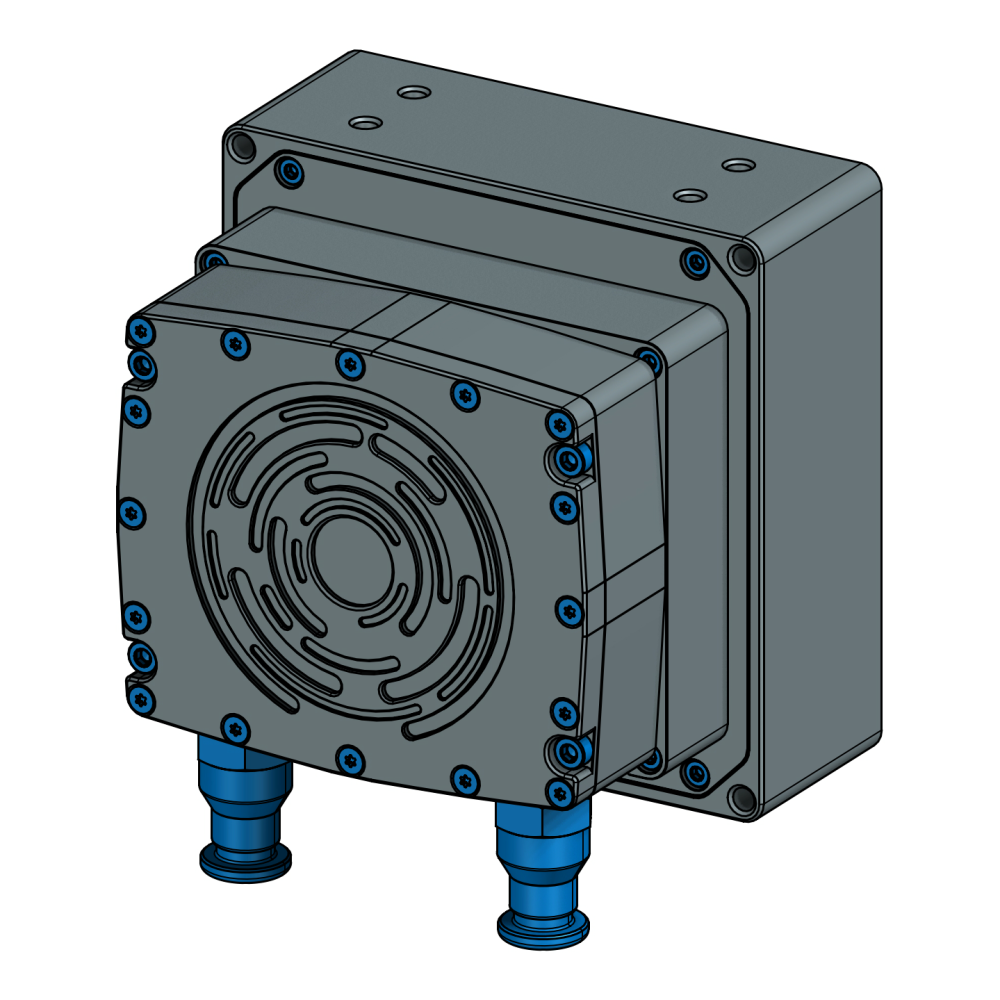

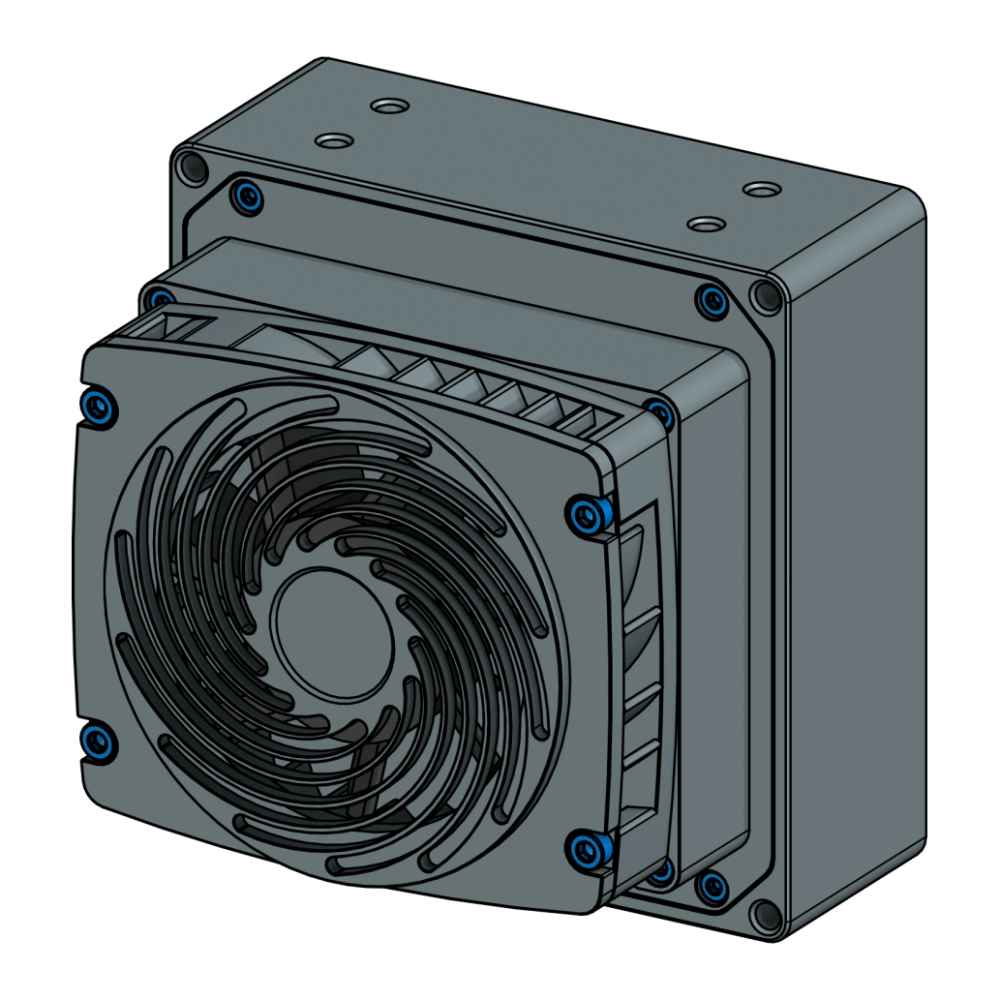

Heat dissipation	Optional Heatsink, Fan air cooling
Special features	Taped glass, Backside illumination

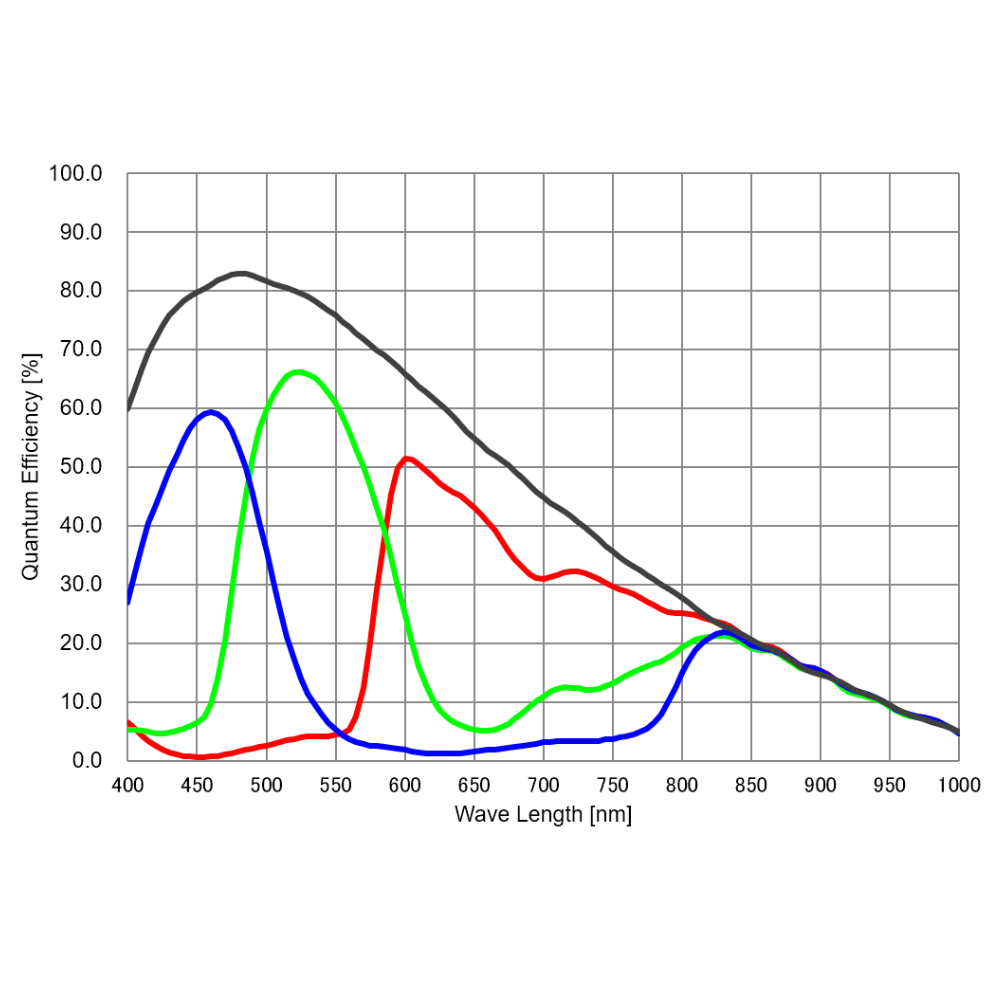

EMVA 1288 results
Peak QE	83% 480nm
Gain analog max	24 dB

Mechanical properties

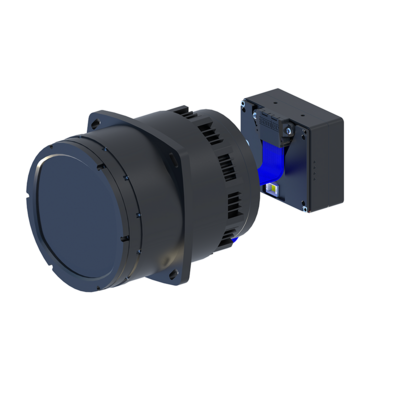

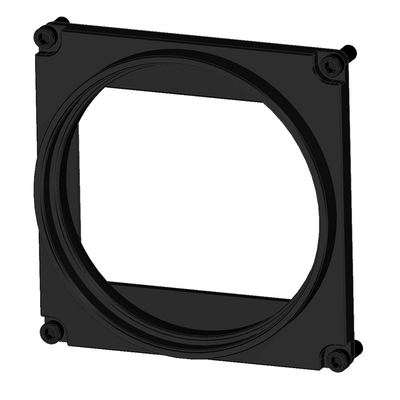

Lens mount	M72 mount, Hasselblad mount
Enclosure type	Standard housing
Physical dimensions (WHD)	80 x 80 x 46.2 mm
Ambient operating temperature	0 - 50 °C
Storage Temperature	-25 - 60 °C

Feature set for xiX family

Technology
Sensor technology	CMOS, BSI - Backside illuminated
Bandwidth	32 Gbits over PCIe Gen3 x4 lanes
Acquisition Modes	Continuous, software and hardware trigger, fps limiting, triggered exposure and burst
Digital Output	12, 14, 16 bit (depending on the model) RAW pixel data digitization
Interface	Flexible flat ribbon copper cable and fiber cable options of PCIe connector
General purpose I/O	2x optoisolated input, 2x optoisolated output, 4 non-isolated input-outputs
Synchronization	Hardware and software trigger input, exposure strobe output, busy output
Lens mount	Passive M72 mount, active EF mount with Lens Control – focus, iris, image stabilization

Processing
Partial image readout	ROI / AOI (region / area of interest); Skipping and Binning modes supported - model specific
Image processing	Host based de-Bayering; sharpening; Gamma; color matrix; true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction	On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments	Auto white balance; auto gain; auto exposure; HDR (High Dynamic range)
Flat field corrections	Host assisted pixel level shading and lens corrections
Signal conditioning	Programmable debouncing time
Latency	Computer CPU is not involved in data transfer, latency from camera to memory is minimal

Software
SDK / API	Programmable with C++ and C#, Python
Software support	one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs	CamTool viewer
Firmware updates	Field firmware update through xiCOP tool

Computer
Operating systems	Windows 10 (x86 and x64), Linux Ubuntu, ARM, until MacOS 10.15 and newer, NVIDIA Jetson modules
Minimum host hardware	Intel i5 3.0GHz, +2GB RAM physical memory, Motherboard with PCIe x4 Gen3

Regulations
Environment side	Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 60°C storage
Conformity	CE, FCC, RoHS, GenICam/GenTL, PCI Express External Cabling Specifications compliant

Applications for high resolution large sensor xiX-XL cameras

Aerial mapping

Photogrammetry, Videogrammetry - city street or outdoor 3D mapping, Wide area motion imaging, stadium and border surveillance.

Portable

Autonomous, self-driving, Unmanned aerial vehicles (UAV) and Unmanned aircraft systems (UAS), Advanced driver assistance systems (ADAS), drones.

Broadcasting

Cinematography, Entertainment, Instant replays and rapid process capturing, e.g. golf, hockey, ping pong, baseball, tennis, football, basketball and more.

Quality inspection

Flat panel display (FPD), Printed circuit board (PCB) examination, Solar panel, Photovoltaics, Semiconductor wafer, Metrology, Print and Film scanning.

VIEW ALL

Variants

More flavors, more options: Explore alternative versions of the selected model.

MX2457CR-SY-X4G3-FF

SONY IMX811 Color Large BSI Sensor camera with PCIe X4 Gen 3

Resolution: 245.7 MPixSensor resolution: 19200 x 12800 Interface: PCIe X4 Gen 3 Frame rate: 10 FPSSensor technology: CMOS Sensor size: 4.1" Sensor vendor: SONY Sensor model: IMX811

MX1510XR-SY-FA-GO

SONY IMX411 X-RAY Gadox camera with PCIe X4 Gen 3

Resolution: 150.8 MPixSensor resolution: 14176 x 10640 Interface: PCIe X4 Gen 3 Frame rate: 2 FPSSensor technology: CMOS Sensor size: Medium format Sensor vendor: SONY Sensor model: IMX411

MX1510CR-SY-X4G3-FF

SONY IMX411 Color Large BSI Sensor camera with PCIe X4 Gen 3

Resolution: 150.8 MPixSensor resolution: 14176 x 10640 Interface: PCIe X4 Gen 3 Frame rate: 6.2 FPSSensor technology: CMOS Sensor size: Medium format Sensor vendor: SONY Sensor model: IMX411

MX1510MR-SY-X4G3-FF

SONY IMX411 Monochrome Large BSI Sensor camera with PCIe X4 Gen 3

MX1276CG-SY-X4G3-FF

SONY IMX661 Color Large Global Shutter Sensor camera with PCIe X4 Gen 3

Resolution: 127.7 MPixSensor resolution: 13408 x 9528 Interface: PCIe X4 Gen 3 Frame rate: 20 FPSSensor technology: CMOS Sensor size: 3.6" Sensor vendor: SONY Sensor model: IMX661

MX1276MG-SY-X4G3-FF

SONY IMX661 Monochrome Large Global Shutter Sensor camera with PCIe X4 Gen 3

MX1018CR-SY-X4G3-FF

SONY IMX461 Color Large BSI Sensor camera with PCIe X4 Gen 3

Resolution: 101.8 MPixSensor resolution: 11648 x 8742 Interface: PCIe X4 Gen 3 Frame rate: 8.7 FPSSensor technology: CMOS Sensor size: Medium format Sensor vendor: SONY Sensor model: IMX461

MX1018MR-SY-X4G3-FF

SONY IMX461 Monochrome Large BSI Sensor camera with PCIe X4 Gen 3

MX610CR-SY-X4G3-FF

SONY IMX455 Color Large BSI Sensor camera with PCIe X4 Gen 3

Resolution: 61 MPixSensor resolution: 9568 x 6380 Interface: PCIe X4 Gen 3 Frame rate: 17 FPSSensor technology: CMOS Sensor size: 35mm Full Frame Sensor vendor: SONY Sensor model: IMX455

MX610MR-SY-X4G3-FF

SONY IMX455 Monochrome Large BSI Sensor camera with PCIe X4 Gen 3

MX610XR-SY-FA-GO

SONY IMX455 X-RAY Gadox camera with PCIe X4 Gen 3

MX610XR-SY-TP2:1-GO

SONY IMX455 X-RAY Magnified Gadox camera with PCIe X4 Gen 3

MX610XR-SY-TP1.5:1-CSI

SONY IMX455 X-RAY Magnified CsI camera with PCIe X4 Gen 3

MC245CG-SY-HDR

SONY IMX530 Color Industrial camera with USB3

Resolution: 24.5 MPixSensor resolution: 5328 x 4608 Interface: USB3 Frame rate: 15 FPSSensor technology: CMOS Sensor size: 1.2" Sensor vendor: SONY Sensor model: IMX530

MC245MG-SY-HDR

SONY IMX530 Monochrome Industrial camera with USB3
