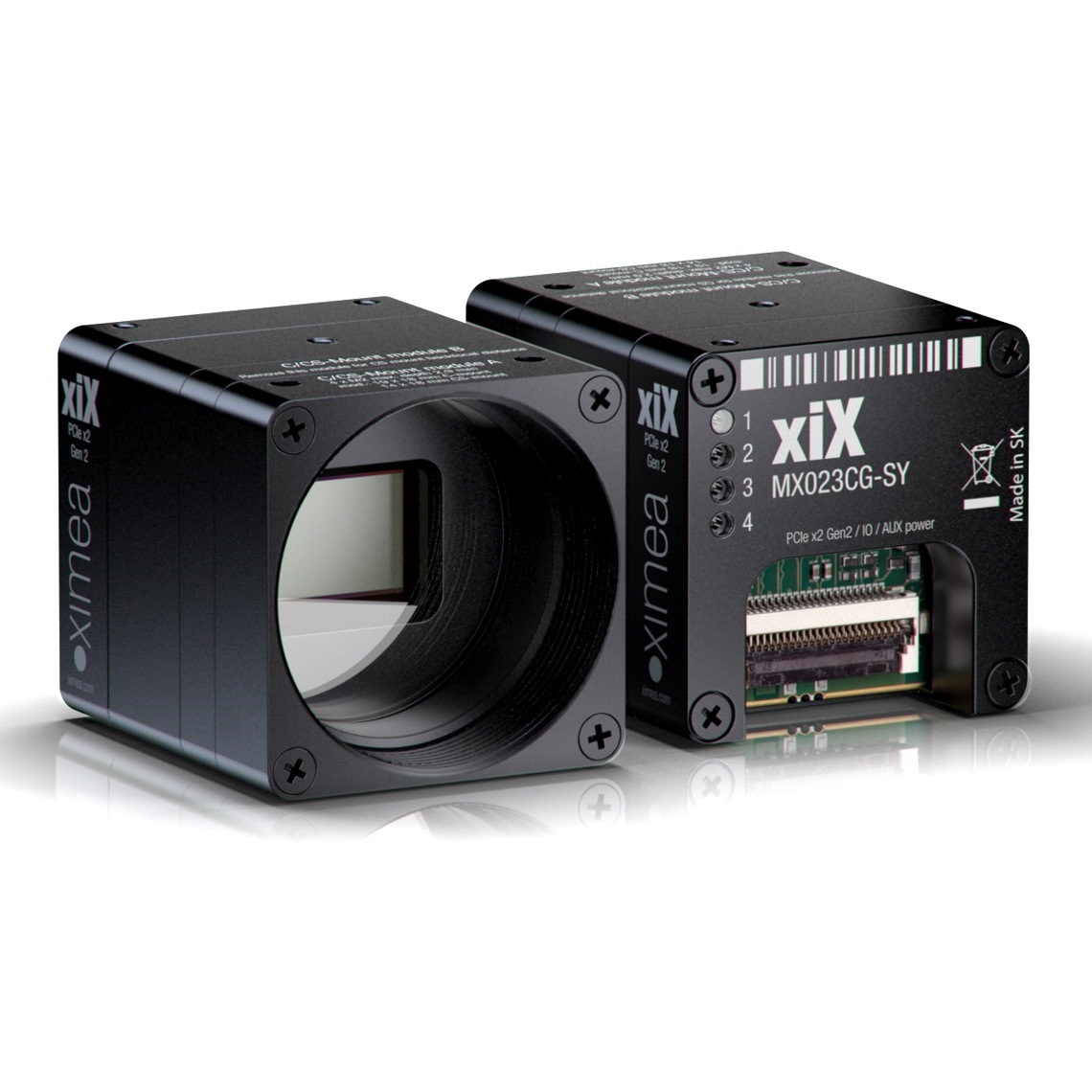

Sony IMX541 fast mono industrial camera

Sony IMX541 fast mono industrial camera
MTO - Made to order
  • Small dimensions: 26 x 26 x 31 mm
  • 20.3 Mpix at 36 fps
  • With flat ribbon flex cable ideal for Embedded vision systems
  • PCI Express Compliant


20.3 MP Monochrome BSI Sony CMOS Pregius S™ 4th Generation Camera

Specifications are preliminary and subject to change


High resolution camera Applications: VR an AR, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Dental, Security, Biometrics and more


Check conditions for the model version with Sony IMX531 monochrome sensor.



Embedded Zone





Part Number MX203MG-SY
Resolution 20.3 MP 4504 x 4504
Frame rates 36 Fps (8bit), 29 Fps (10bit), 27 Fps (12bit)
Sensor model Sony Pregius-S IMX541-AAMJ-C
Chroma Monochrome, B/W
Sensor type CMOS, BSI - Backside illuminated
Sensor size 1.1"
Sensor active area 12.34 x 12.34 mm
Readout method Global Shutter
Pixel size 2.74 x 2.74 μm
Digitization 8, 10, 12
Data interface PCI Express Gen2 (PCIe)
Dynamic range 70 dB
Full Well Capacity 9500 e-
Readout noise typ. 2.1 e-
Lens mount C-Mount or CS-mount
Dimensions WxHxD 26 x 26 x 31 mm
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
