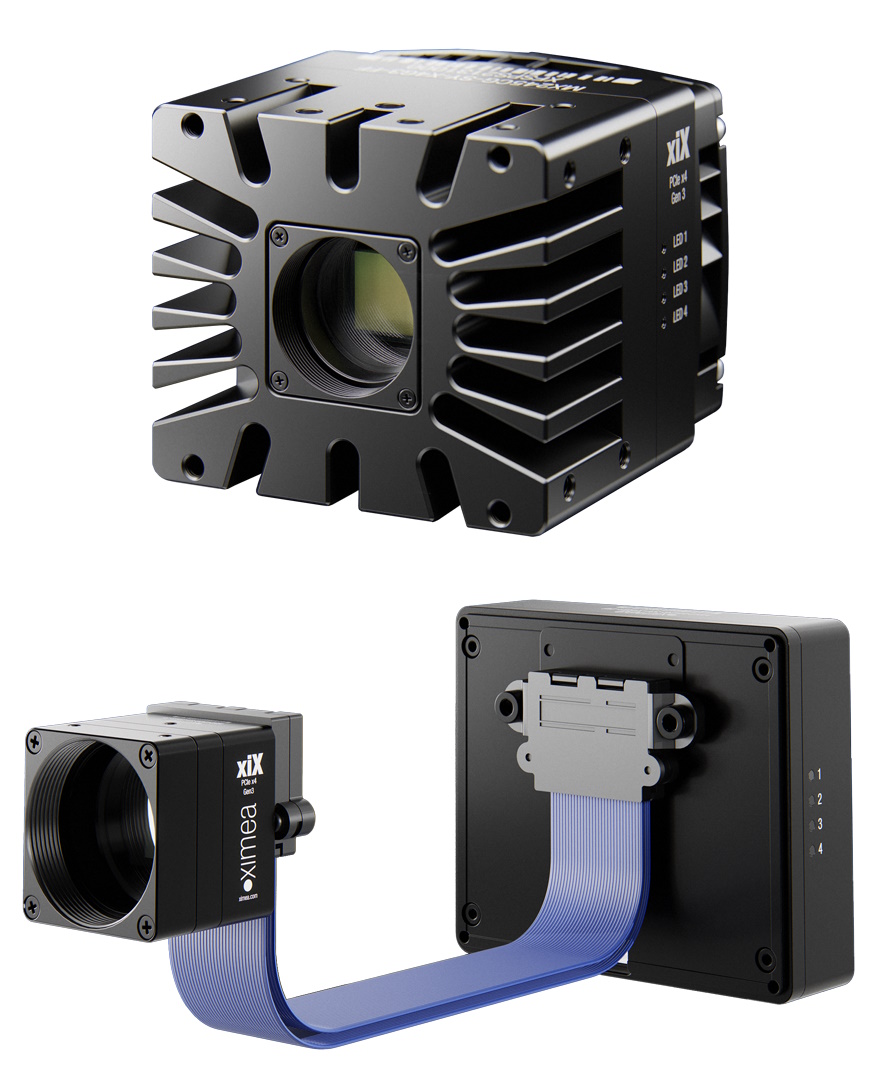

Sony IMX530 high speed mono industrial camera

Sony IMX530 high speed mono industrial camera
MTO - Make to order status

  • 24.5 Mpix
  • Monochrome
  • Sony IMX530 Pregius S™ 4th Generation Camera
  • 105 Fps
  • Compact dimensions with detachable camera head
  • High dynamic range and low noise with BSI sensor technology
  • Buffer memory DDR4 - 2 GB
  • Additional features like Dual ADC - HDR mode



High resolution camera Applications:

VR an AR, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Dental, Security, Biometrics and more



Check the support of Features like short interframe interval for Sony IMX530

Options with various types of Cooling - Liquid, Air or Heatsink.



Brochure



Copper cable connection



Fiber optic cable connection



3D / 2D files



Manual



CONTACT SALES




Specifications:
Part Number MX245MG-SY-X4G3-FF
Resolution 24.5 MP 5328 x 4608 pixels
Frame rates 107 Fps (8 bit), 103 (10 bit), 75 (12 bit)
Sensor model Sony Pregius-S IMX530 AAMJ-C
Chroma Monochrome, B/W
Sensor type CMOS, BSI - Backside illuminated
Sensor size 1.2"
Sensor active area 14.58 x 12.6 mm (Diagonal 19.3 mm)
Spectral range 400 - 1000 nm
Readout method Global Shutter
Pixel size 2.74 x 2.74 μm
Digitization 8, 10, 12 bit
Data interface PCI Express Gen3 x4 (PCIe)
Dynamic range 70 dB
Full Well Capacity 9800 e-
On-chip binning 2x2
Dark current 1.2 e-
Readout noise typ. 2.2 e-
Signal to noise ratio 40.3 dB
Gain range 24 dB
Exposure range 5 µs to 30 s, step 7 µs
I/O Ports GPIO 2IN, 2OUT
Power consumption 15 Watt
Lens mount C-Mount
Weight 395 gram
Dimensions WxHxD 70 x 60 x 55 mm
Cooling Fan or Heatsink
