Products Embedded vision and multi-camera setup - xiX CMOSIS CMV4000 PCIe Color industrial camera

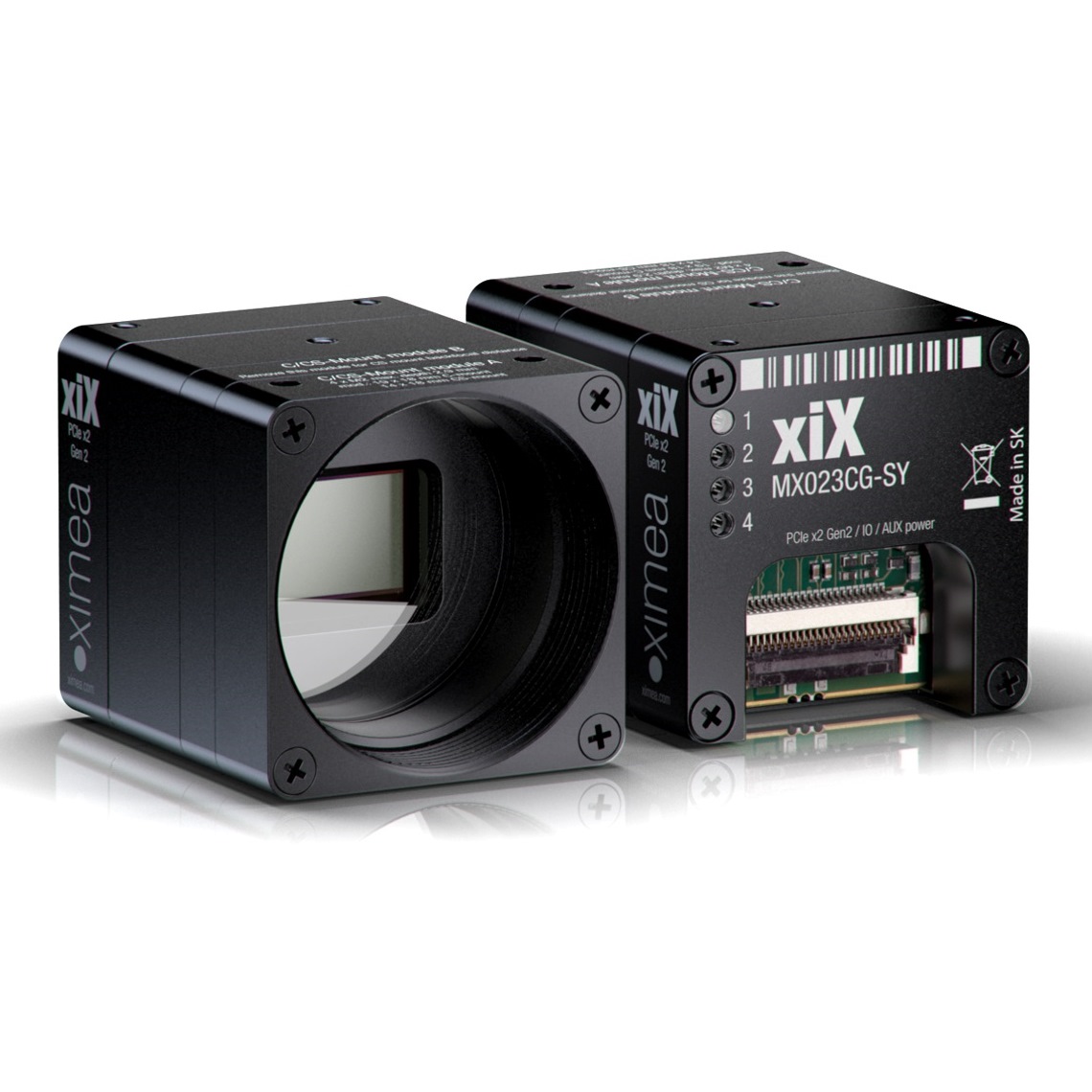

CMOSIS CMV4000 PCIe Color industrial camera

CMOSIS CMV4000 PCIe Color industrial camera
MTO - Made to order
  • Smallest dimensions: 26 x 26 x 31 mm, 31 grams
  • 4.2 Mpix Color Global shutter CMOS Camera
  • 180 fps with PCIe interface
  • Ideal for Multi camera setup and Embedded vision systems
  • PCI Express Gen2 Compliant


2K camera Applications:

In-situ optical inspection camera, fast process capturing, e.g. Golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Automotive crash testingOCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics






Embedded Zone




Support page




Part Number MX042CG-CM
Resolution 4.2 MP 2048 × 2048 pixel
Frame rates 180 Fps
Sensor model AMS CMOSIS CMV4000
Sensor type CMOS RGB Bayer Matrix
Sensor size 1"
Sensor active area 11.27 × 11.27 (Diagonal 15.9 mm)
Readout method Global shutter
Pixel size 5.5 µm
Digitization 8, 10, (12)
Data interface PCI Express 10 Gbit/s
Dynamic range 60 dB
Full Well Capacity 13500 e-
Signal to noise ratio 41 dB
Gain range 8.4 dB
Exposure range 26 µs to 1 s
Power consumption 1.5 Watt
Lens mount C or CS Mount
Weight 31 grams
Dimensions WxHxD 26 x 26 x 31 mm
