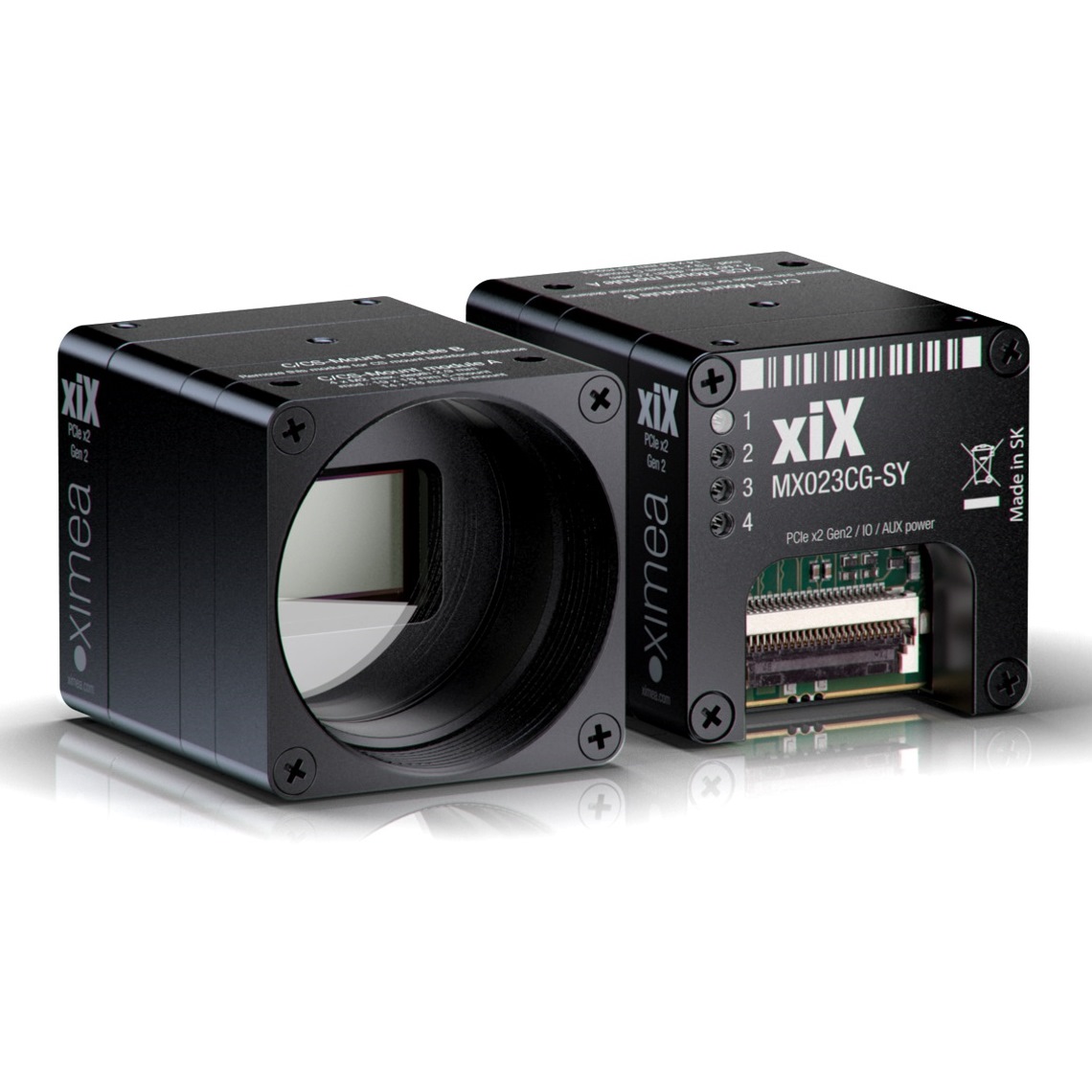

MTO - Made to order
- Small dimensions: 26 x 26 x 31 mm
- 20.3 MP
- Sony IMX541 RGB camera
- CMOS Pregius S™ 4th Generation Color BSI - backside illuminated
- With flat ribbon flex cable ideal for Embedded vision systems
- 35 fps at full resolution with PCI Express Gen2 x2 lanes
High resolution camera Applications:
VR an AR, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Dental, Security, Biometrics and more
Check conditions for the model version with Sony IMX531 color sensor
Brochure
Accessories
Embedded Zone
3D / 2D files
Manual
CONTACT SALES
Specifications: | |
| Part Number | MX203CG-SY |
| Resolution | 20.3 MP 4512 x 4512 pixels |
| Frame rates | 35 Fps (8bit), 28 Fps (10bit), 26 Fps (12bit) |
| Sensor model | Sony Pregius-S IMX541 AAQJ-C |
| Chroma | Color, RGB |
| Sensor type | CMOS, BSI - Backside illuminated |
| Sensor size | 1.1" |
| Sensor active area | 12.34 x 12.34 mm |
| Readout method | Global Shutter |
| Pixel size | 2.74 x 2.74 μm |
| Digitization | 8, 10, 12 bit |
| Data interface | PCI Express Gen2 (PCIe) 10 Gbits |
| Dynamic range | 70 dB |
| Full Well Capacity | 9 900 e- |
| On-chip binning | 2x2 |
| Dark current | 8 e- |
| Readout noise typ. | 2.3 e- |
| Signal to noise ratio | 40 dB |
| Gain range | 24 dB |
| Exposure range | 14 μs to 30 s, step 6 μs |
| I/O Ports | GPIO IN, OUT |
| Power consumption | 3.3 Watt |
| Lens mount | C-Mount or CS-mount |
| Weight | 31 gram |
| Dimensions WxHxD | 26 x 26 x 31 mm |
