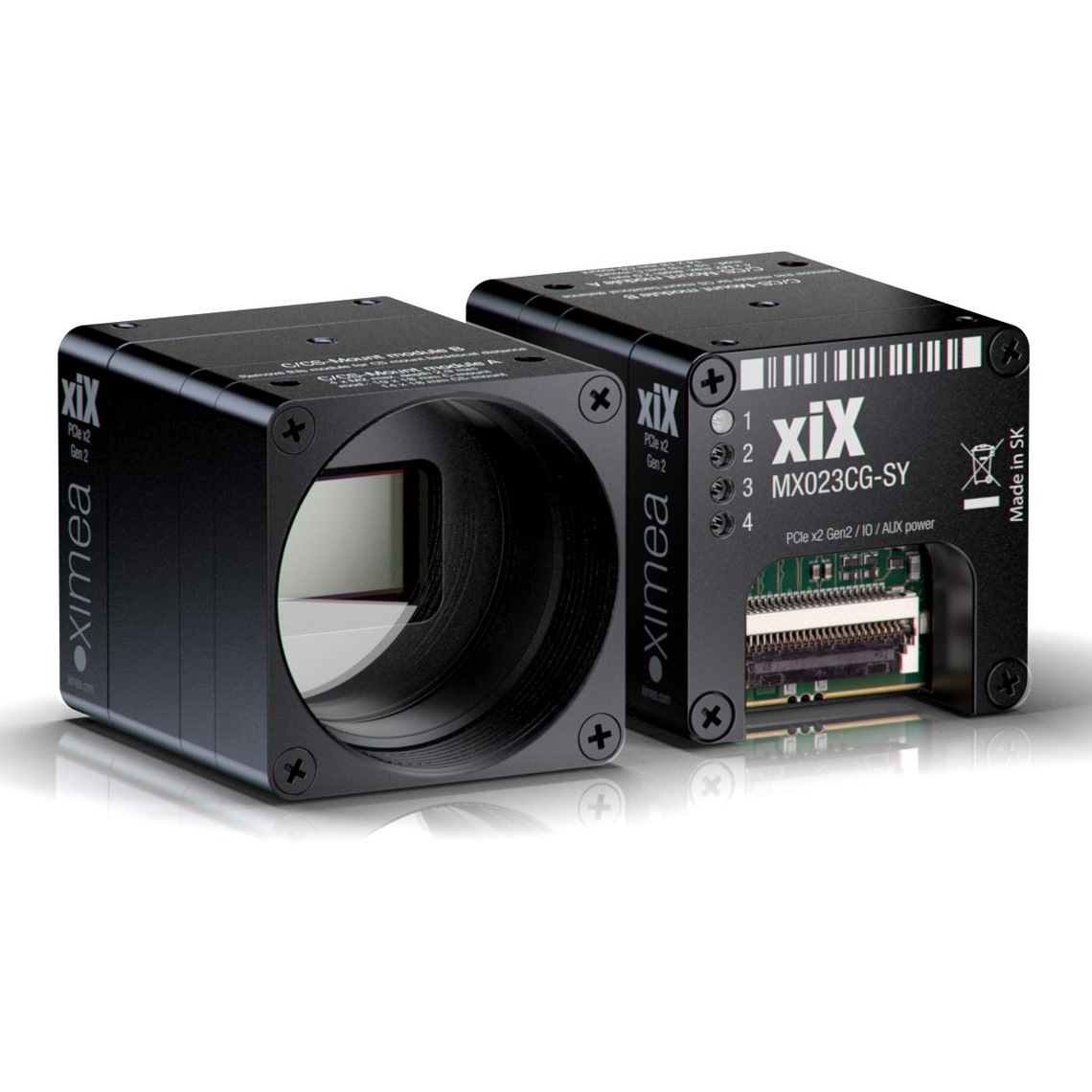

Sony IMX530 HDR color industrial camera

Sony IMX530 HDR color industrial camera
MTO - Made to order

  • Small dimensions: 26 x 26 x 31 mm
  • 24.5 Mpix at 30 fps
  • With flat ribbon flex cable ideal for Embedded vision systems
  • Additional features like Dual ADC - HDR mode



24.5 MP Color BSI Sony CMOS Pregius S 4th Generation Camera

Check the support of Features like HDR for Sony IMX530 color sensor



High resolution camera Applications: VR an AR, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Dental, Security, Biometrics and more



Specifications are preliminary and subject to change

Brochure



PCIe Zone



Manual



CONTACT SALES


Specifications:
Part Number MX245CG-SY-HDR
Resolution 24.5 MP 5320 x 4600
Frame rates 30 Fps
Sensor model Sony Pregius-S IMX530
Chroma Color RGB
Sensor type CMOS, BSI - Backside illuminated
Sensor size 1.2"
Sensor active area 14.58 x 12.6 mm
Readout method Global Shutter
Pixel size 2.74 x 2.74 μm
Digitization 8, 10, 12 bit
Data interface PCI Express Gen2 (PCIe)
Dynamic range 70 dB
Full Well Capacity 9500 e-
Readout noise typ. 2.1 e-
Signal to noise ratio 39.71 dB
Gain range 24 dB
Exposure range 9µs to 30s, step 7µs
I/O Ports GPIO IN, OUT
Power consumption 3.9 Watt
Lens mount C-Mount or CS-mount
Weight 38 grams
Dimensions WxHxD 26 x 26 x 31 mm
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
Last Updated: 03 August 2021, 10:25
