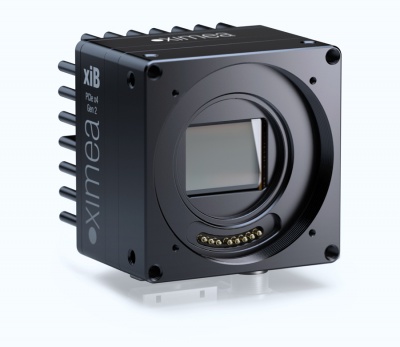

CMOSIS CMV12000 mono 4K industrial camera

CMOSIS CMV12000 mono 4K industrial camera
  • 12 Megapixels Monochrome CMOS camera with CMOSIS CMV12000
  • PCIe speed of 20 Gbit/s allows 133 Fps @8bit or 100 Fps at 10 bit



4K, compact, high speed camera for: Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.



With flat ribbon flex cable (xiX line) ideal for Embedded vision systems.

Check conditions for the Taped Cover Glass sensor model.

Brochure



Manual



Accessories



Support pages



CONTACT SALES




Specifications:
Part Number CB120MG-CM
Resolution 12 MP 4096 x 3072 pixel
Frame rates 130 Fps (8 bit)
Sensor type CMOS B/W or Near Infrared enhanced
Sensor model CMOSIS CMV12000
Sensor size 1.75” (APS-C)
Sensor active area 22.5 x 16.9 mm (Diagonal 28 mm)
Readout Method Global shutter
Pixel size 5.5 x 5.5 μm
ADC -Bits per pixel 8, 10, 12 bits
Data interface PCI Express (PCIe)
Dynamic range 60 dB
Full Well Capacity 13 500 e-
On-chip binning 2x2 (and Skipping)
Exposure range 19µs - 3.5s
Data I/O 2IN/2OUT
Power consumption 8 Watt
Lens mount EF-mount
Weight 159 grams
Dimensions WxHxD 36 x 60 x 60 mm
Cooling Heatsink
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
