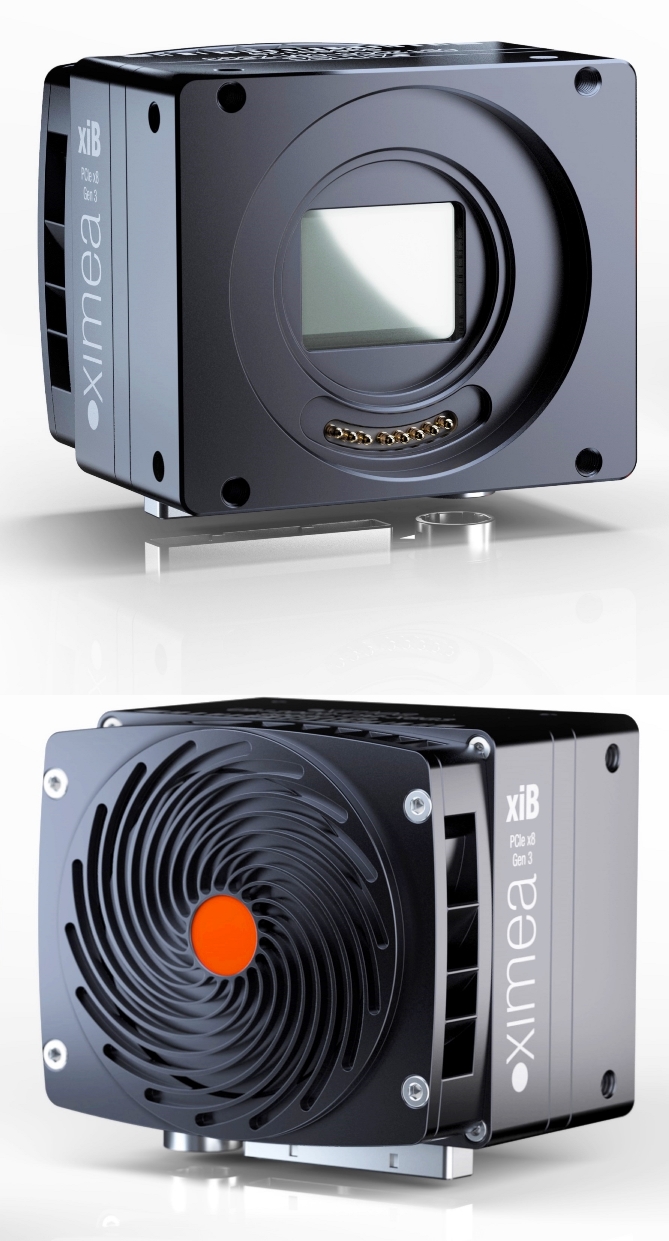

CB654CG-GP-X8G3

CB654CG-GP-X8G3
COMING SOON

  • 65 Megapixels, color
  • World's highest resolution Global shutter sensor
  • 2.3" CMOS, Gpixel GMAX3265
  • High resolution and fast speed industrial camera
  • No Frame grabber with PCIe interface and 64 Gbps bandwidth
  • High Dynamic range, Low noise, minimal latency, DMA



Specifications are preliminary and subject to change



Compact camera for Industrial and Scientific applications:

Spinning disk confocal imaging, Genomics, High Speed Multicolor and Light Sheet Fluorescence, FRET, FRAP, FISH, TIRF, Cell Biology, Biochip reading, PALM, STORM, dSTORM, GSDIM, SPIM and Widefield Microscopy, Astronomy, Protein/Lipid Trafficking, Voltage Sensitive Dyes, Quantum Dots, Membrane Dynamics, Ion Transport Physiology, Photovoltaic inspection, Mineralogy, OCT, FCS, gSTED, CARS, Digital pathology, Ophthalmology, Electrophysiology, Biophysics, Phosphorescence, Photoluminescence Spectroscopy, Biometrics, Endoscopy and Biomedical, Nanoparticle, Intrinsic, Ratiometric, Calcium imaging.

Brochure



Accessories



3D Model on request



CONTACT SALES


Specifications:
Resolution 65 MP 9344 x 7000 pixels
Sensor type CMOS Global Shutter
Sensor model GPixel GMAX3265 Color
Sensor size APS-C Format
Sensor active area 29.9 x 22.4 (Diagonal 37.4 mm)
Pixel size 3.2 µm
Bits per pixel 10, 11 and 12 bits
Dynamic range 70 dB @ 12 bit / 58 @ 10 bit
Frame rates 85 fps @ 10 bit, 71 fps @ 11 bit, 53 @ 12 bit
Image data interface PCIe Gen3
Data I/O GPIO 2IN, 2OUT, Serial Port
Lens mount Active EF
Weight 268 grams
Dimensions WxHxD 60 x 70 x 40 mm
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
Last Updated: 18 December 2018, 11:43
