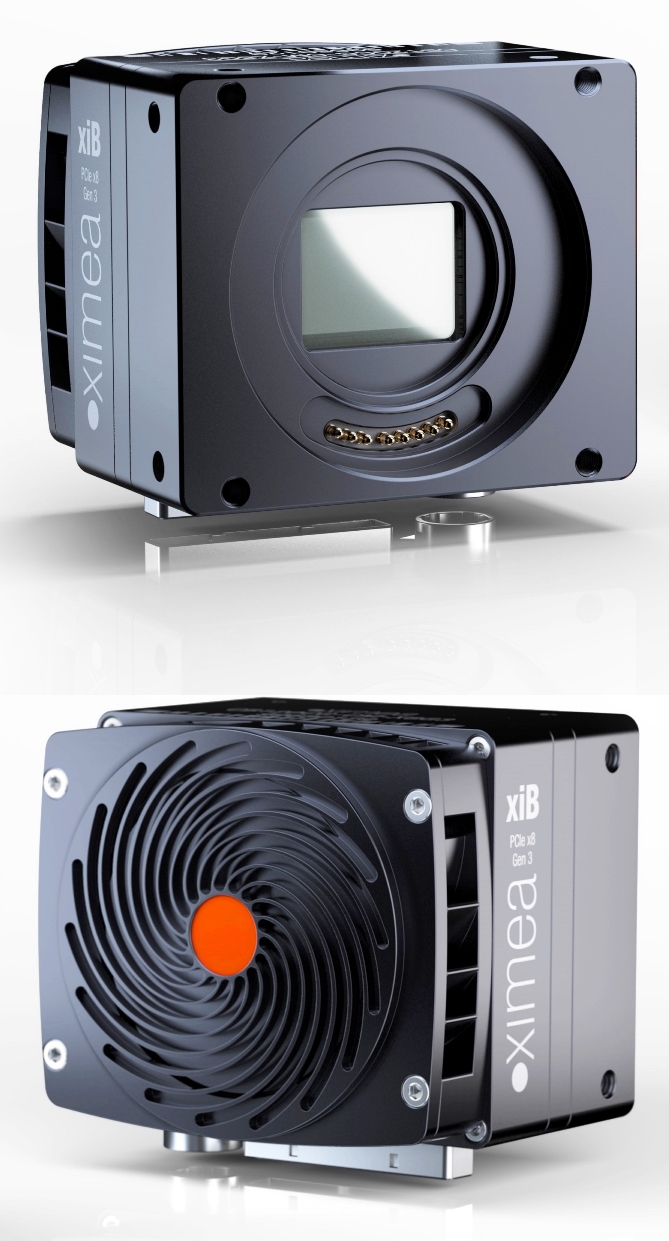

CB013CG-LX-X8G3

CB013CG-LX-X8G3
MTO - Made to order

  • 1.1 Mpix
  • Color
  • 4/3" CMOS Global shutter camera
  • High speed industrial camera
  • No Frame grabber, no memory limit
  • Realtime direct streaming with DMA and minimal latency
  • PCIe Gen3 speed of 64 Gbit/s bandwidth
  • More than 3500 Fps at 10 bit



High speed, compact, fast camera for:

Vehicle Impact, Airbag Deployment and Safety Restraints Testing, Digital Image Correlation (DIC), Projectile, Explosives, Ballistics, Combustion and Missile Launch Tracking, Fluid and Flow Visualization, Sports Broadcasting, Commercial Film, Television and Studio Production, Fluidics and Particle Image Velocimetry (PIV), Flat panel inspection (FPD), printed circuit board (PCB) examination and more.



Brochure



Manual



Accessories



Camera family



Support page



CONTACT SALES


Specifications:
Part Number CB013CG-LX-X8G3
Resolution 1.1 MP 1280 × 864 pixels
Frame rates 3675 Fps
Sensor model Luxima LUX13HSC
Chroma Color, RGB
Sensor type CMOS
Sensor size 4/3"
Sensor active area 17.5 × 11.8 mm (Diagonal 21.1 mm)
Readout method Global shutter
Pixel size 13.7 μm
Digitization 10 bit
Data interface PCI Express (PCIe) Gen3 64 Gbit/s
Dynamic range 60 dB
Full Well Capacity 20 000 e-
Readout noise typ. 14 e-
Exposure range 1µs – 1sec
I/O Ports 2IN/2OUT
Power consumption 17 Watt
Lens mount C-mount or active Canon EF-mount, via optional lens adapter
Weight 268g
Dimensions WxHxD 60 x 70 x 55 mm
Cooling Fan
Last Updated: 20 July 2024, 04:00
