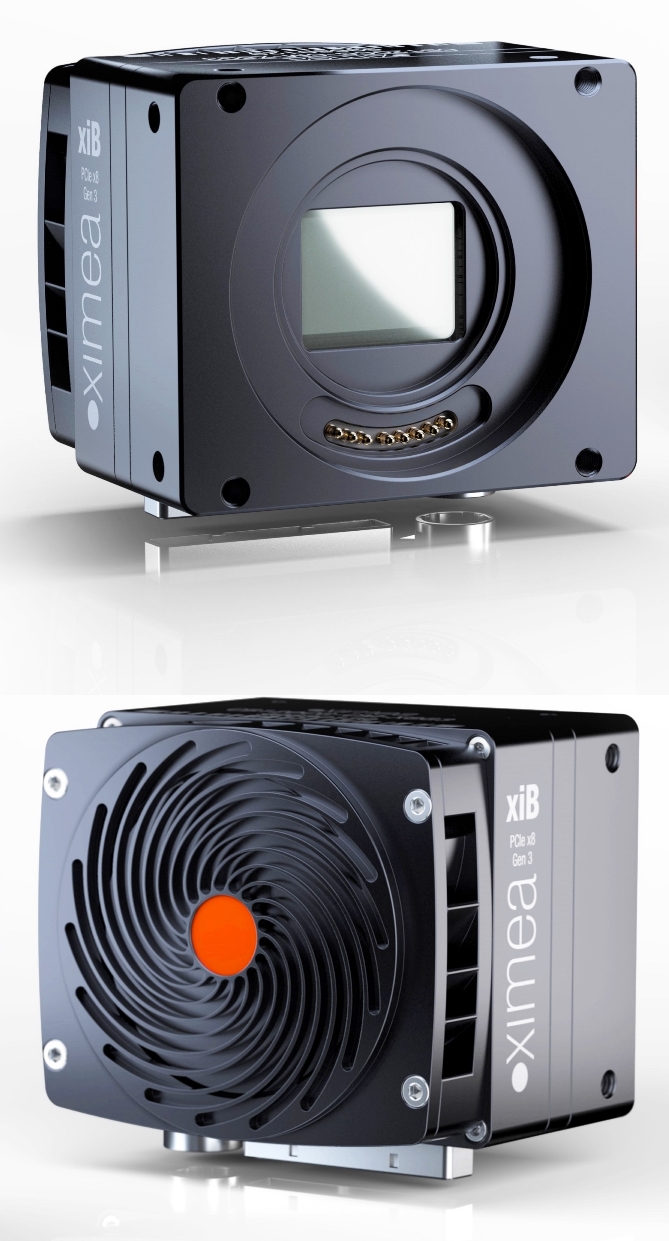

CB019CG-LX-X8G3

CB019CG-LX-X8G3
Assembled to order

  • 2 Megapixels Color CMOS camera with Luxima LUX19HS
  • PCIe Gen3 speed of 64 Gbit/s allows more than 2200 Fps at 10 bit



Full HD, High speed, compact, fast camera for: Vehicle Impact, Airbag Deployment and Safety Restraints Testing, Digital Image Correlation (DIC), Projectile, Explosives, Ballistics, Combustion and Missile Launch Tracking, Fluid and Flow Visualization, Sports Broadcasting, Commercial Film, Television and Studio Production, Fluidics and Particle Image Velocimetry (PIV), Flat panel inspection (FPD), printed circuit board (PCB) examination and more.

Brochure



Manual



Accessories



Support pages



CONTACT SALES


Specifications:
Part Number CB019CG-LX-X8G3
Resolution 2 MP 1920 × 1080 pixel
Frame rates 2263 Fps
Sensor type CMOS RGB Color
Sensor model Luxima LUX19HSC
Sensor size 4/3"
Sensor active area 19.2 × 10.8 mm (Diagonal 22 mm)
Readout Method Global shutter
Pixel size 10 μm
ADC -Bits per pixel 10
Data interface PCI Express (PCIe) Gen3
Dynamic range 60 dB
Full Well Capacity 15 000 e-
Exposure range 1µs – 1sec
Data I/O 2IN/2OUT
Power consumption 17 Watt
Lens mount Active EF-mount
Weight 268g
Dimensions WxHxD 60 x 70 x 55 mm
Cooling Fan
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
Last Updated: 21 October 2019, 14:41
