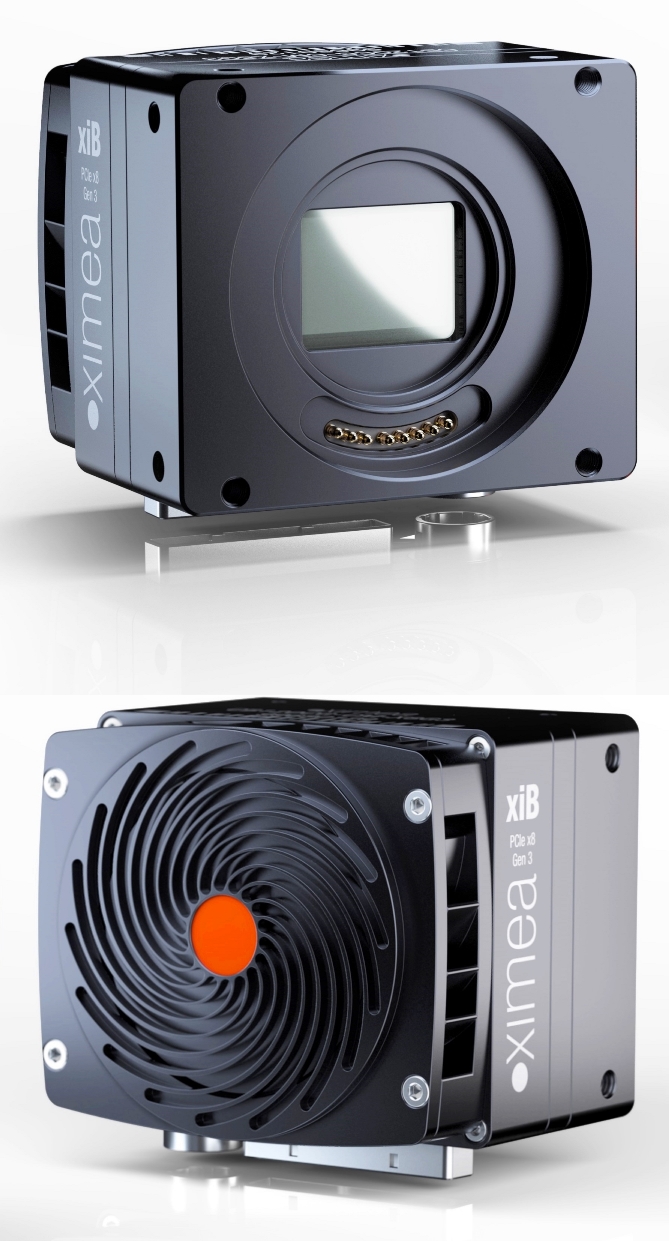

High resolution mono camera Gpixel GMAX0505

High resolution mono camera Gpixel GMAX0505
MTO - Made to order
  • 26 Mpix monochrome
  • 150FPS @10bit
  • Gpixel GMAX0505, 1.1" Global shutter
  • High resolution and fast speed CMOS camera
  • No Frame grabber with PCIe interface and 64 Gbps bandwidth
  • High Dynamic range, Low noise, minimal latency, DMA


5K, compact, high speed camera for:

Flat panel inspection (FPD), printed circuit board (PCB) examination, Pill sorting (laser 3D method),  solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports broadcast and entertainment, UAV and Autonomous, Unmanned vehicles, Photogrammetry, surveying, aerial or city mapping, 360 panorama and more.


Note: Check conditions for Taped Cover Glass sensor model







Camera family


Support page



Part Number CB262MG-GP-X8G3
Resolution 26.2 MP 5120 x 5120 pixels
Frame rates 150 fps @ 10 bit, 40 @ 12 bit
Sensor model GPixel GMAX0505
Sensor type CMOS Monochrome
Sensor size 1.1"
Sensor active area 12.8 x 12.8 (Diagonal 18.1 mm)
Readout method Global shutter
Pixel size 2.5 µm
Digitization 10 and 12 bits
Data interface PCIe Gen3 x8
Dynamic range 63 dB (at 12bits)
Full Well Capacity 6500 e-
Dark current 4 e- (at 12bits)
Signal to noise ratio 36 dB (at 12bits)
Exposure range 11 - 1050000 µs
I/O Ports GPIO 2IN, 2OUT, Serial Port
Power consumption 14 Watt maximum
Lens mount C-mount or Canon EF-mount, via optional adapter
Weight 250 grams
Dimensions WxHxD 60 x 70 x 36 mm
Cooling Fan
Last Updated: 18 July 2024, 11:08
