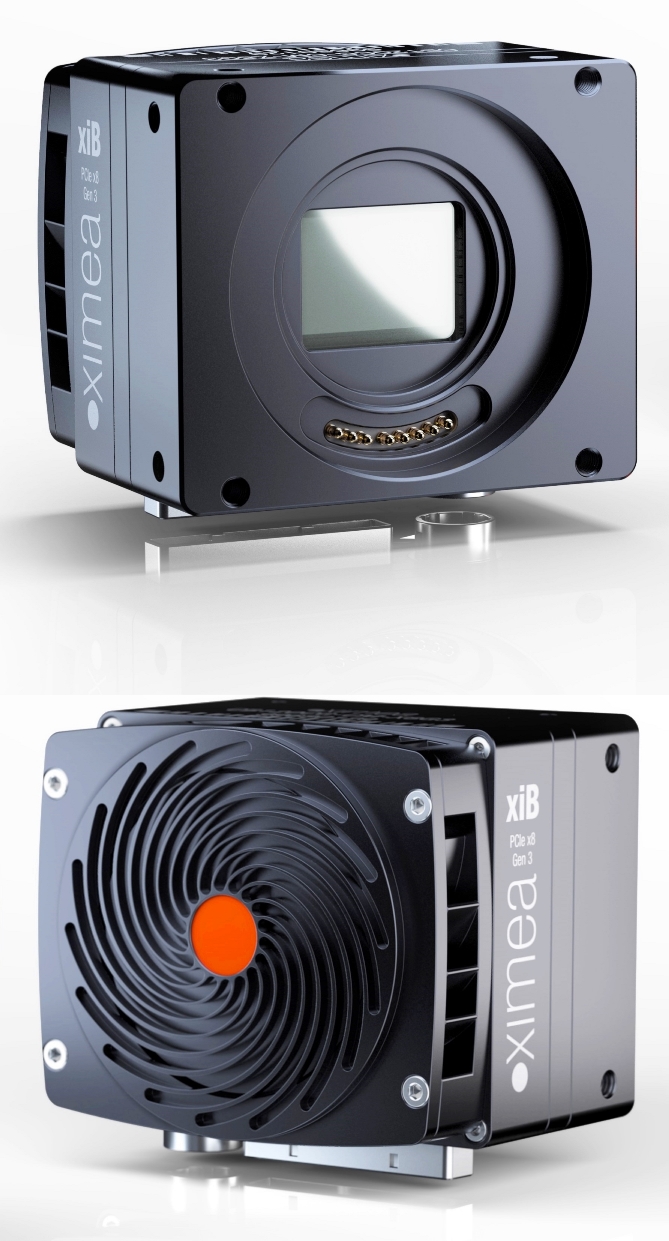

High resolution mono camera Gpixel GMAX3265

High resolution mono camera Gpixel GMAX3265
COMING SOON
  • 65 Megapixels, monochrome
  • Gpixel GMAX3265, 2.3" Global shutter
  • High resolution and fast speed CMOS camera
  • No Frame grabber with PCIe interface and 64 Gbps bandwidth
  • High Dynamic range, Low noise, minimal latency, DMA


Specifications are preliminary and subject to change


Compact camera for Industrial and Scientific applications:

Spinning disk confocal imaging, Genomics, High Speed Multicolor and Light Sheet Fluorescence, FRET, FRAP, FISH, TIRF, Cell Biology, Biochip reading, PALM, STORM, dSTORM, GSDIM, SPIM and Widefield Microscopy, Astronomy, Protein/Lipid Trafficking, Voltage Sensitive Dyes, Quantum Dots, Membrane Dynamics, Ion Transport Physiology, Photovoltaic inspection, Mineralogy, OCT, FCS, gSTED, CARS, Digital pathology, Ophthalmology, Electrophysiology, Biophysics, Phosphorescence, Photoluminescence Spectroscopy, Biometrics, Endoscopy and Biomedical, Nanoparticle, Intrinsic, Ratiometric, Calcium imaging.





3D Model on request



Part Number CB654MG-GP-X8G3
Resolution 65 MP 9344 x 7000 pixels
Frame rates 76 fps @ 10 bit, 71 fps @ 11 bit, 53 @ 12 bit
Sensor type CMOS Monochrome
Sensor model GPixel GMAX3265
Sensor size APS-C Format
Sensor active area 29.9 x 22.4 (Diagonal 37.4 mm)
Readout Method Global Shutter
Pixel size 3.2 µm
ADC -Bits per pixel 10, 11 and 12 bits
Data interface PCIe Gen3
Dynamic range 65 dB @ 12 bit / 58 @ 10 bit
Full Well Capacity 12 500 e-
Data I/O GPIO 2IN, 2OUT, Serial Port
Lens mount Active EF
Weight 268 grams
Dimensions WxHxD 60 x 70 x 40 mm
Cooling Fan
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
