Products Embedded vision and multi-camera setup - xiX Sony IMX250 fast color industrial camera

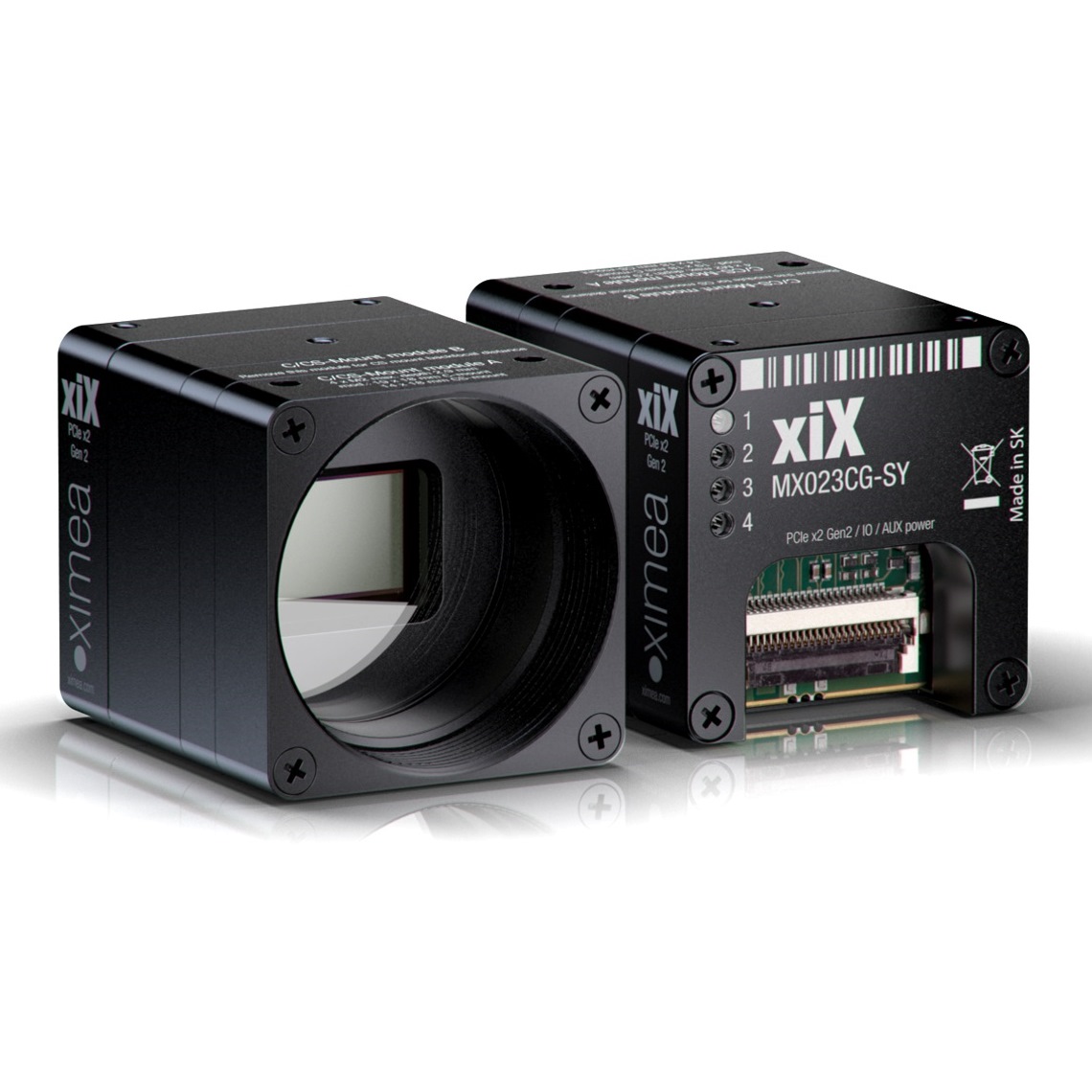

Sony IMX250 fast color industrial camera

Sony IMX250 fast color industrial camera
  • Small dimensions: 26 x 26 x 31 mm, 30 grams
  • 5 Mpix Color CMOS at 165 fps @8bit
  • Flat ribbon flex cable ideal for Multi camera setup and Embedded vision
  • PCI Express Gen2 Compliant



Applications: Ultra-fast 3D scanning, Miniature and accurate robotic arms, Industrial and Factory Automation, Machine Vision, High definition Motion capture, Cinematography and Entertainment, 360 Panorama, Face recognition, Eye Tracking, Body scanner, People counting, Broadcasting, Sports Automation & Motion Tracking, Rapid process capturing, e.g. golf club swings, baseball, tennis, hockey, VR and AR (virtual or augmented reality), Autonomous vehicles



NOTE: OEM status - Minimum order quantity and longer Leadtime may apply

Brochure



Embedded Zone



Manual



CONTACT SALES


Specifications:
Part Number MX050CG-SY
Resolution 5 MP 2464 x 2056
Frame rates 165 Fps
Sensor type CMOS RGB Bayer Matrix
Sensor model Sony IMX250
Sensor size 2/3"
Sensor active area 8.5 x 7.1 (Diagonal 11.1 mm)
Readout Method Global shutter
Pixel size 3.45 µm
ADC -Bits per pixel 8, 10, 12
Data interface PCI Express Gen2 (PCIe)
Dynamic range 70.8 dB
Full Well Capacity 9800 e-
On-chip binning 1x2, 2x2 (and Skipping)
Signal to noise ratio 40.3 dB
Exposure range 1µs to 30sec, in steps of 6.32µs
Data I/O GPIO IN, OUT
Power consumption 3.7 Watt
Lens mount C or CS Mount
Weight 30 grams
Dimensions WxHxD 26 x 26 x 31 mm
Operating temperature 50 °C
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
