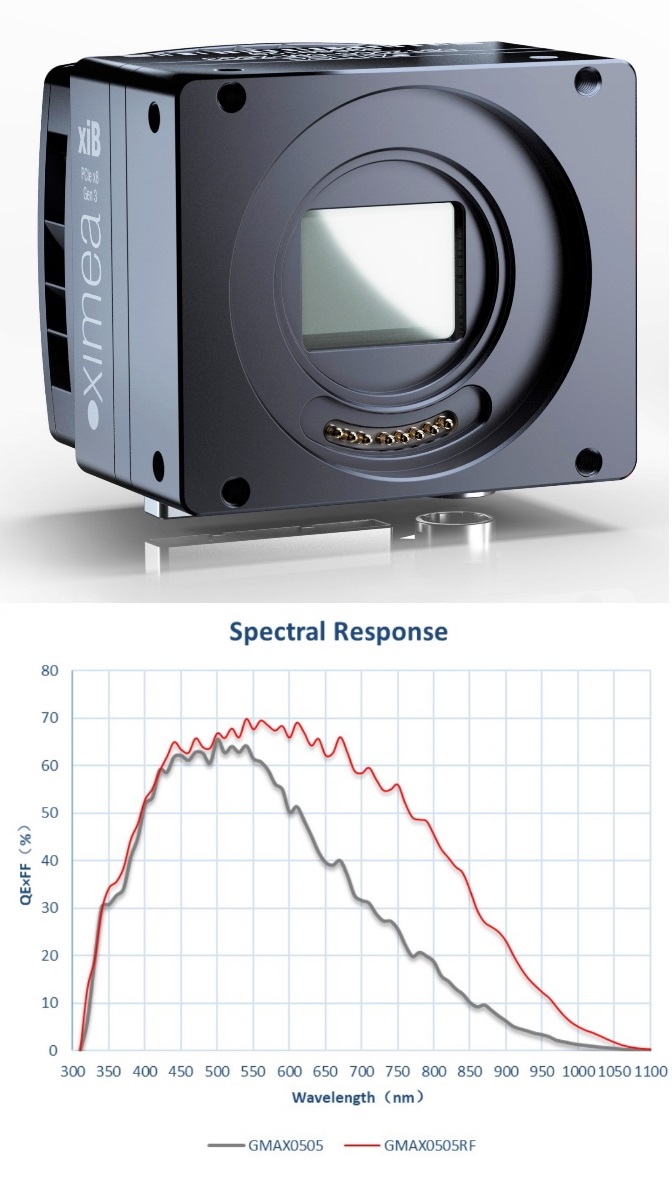

High speed camera with 26.2 Mpix NIR Gpixel GMAX0505 Red Fox sensor and PCIe Gen 3 interface - 1

High speed camera with 26.2 Mpix NIR Gpixel GMAX0505 Red Fox sensor and PCIe Gen 3 interface - 2

CB262RG-GP-X8G3

High speed camera with 26.2 Mpix NIR Gpixel GMAX0505 Red Fox sensor and PCIe Gen 3 interface

Name: GPIXEL GMAX0505 RED FOX PCIe b/w NIR xib-64 high speed camera
SKU: 2097

Product statusActive

Sensor vendorGpixel

Sensor modelGMAX0505 Red Fox

Sensor technologyCMOS

Shutter typeGlobal shutter

Frame rate150 FPS

Get a quote

Overview Variants Accessories Links and downloads Contact

Overview

Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.

Highlights

PRECISE

High resolution (up to 64 Mpix) global shutter sensors without motion artifacts.

FAST

High-speed interface with a bandwidth of 64 Gbit/s. Over 7 GB/s stream to storage or directly to GPU memory with selected PC configurations.

FUNCTIONAL

Active Canon EF-mount option for aperture and focus control through the camera.

LOW-LATENCY

Minimum latency and CPU load. PCIe interface comes with the lowest latency possible, delivering data directly to RAM (DMA) with no overhead from critical processing infrastructure.

Specification

Sensor properties
Resolution	26.2 MPix
Sensor resolution	5120 x 5120
Sensor vendor	Gpixel
Sensor model	GMAX0505 Red Fox
Sensor type	NIR
Sensor technology	CMOS
Sensor size	1.2"
Sensor active area	12 x 12 mm
Sensor diagonal	18.1 mm
Pixel size	2.5 µm
Shutter type	Global shutter

Camera properties
Frame rate	150 FPS
Bits	10, 12 bits
On-chip decimation	1x4
Interface	PCIe Gen 3
Data interface speed	63.04 Gbit/s
Data connector type	PCIe-iPass-X8G3
GPIO count	Inputs: 6, Outputs: 6
Exposure minimum	11 µs
Exposure maximum	1 s
Power consumption	13.6 Watt
Heat dissipation	Optional Heatsink, Fan air cooling
Sensor cooling	No
Special features	NIR
Internal memory	2 GB

EMVA 1288 results
Dynamic range	63.3 dB
Full well Capacity	6500 e-
Saturation Capacity	4575.4 e-
Readout noise	2.6 e-
Signal to noise ratio	35.6 dB
Peak QE	65%
Gain analog max	63 dB
Spectral Range	400 - 1000 nm

Mechanical properties
Lens mount	C-mount, EF-mount option
Enclosure type	Standard housing
Physical dimensions (WHD)	70 x 60 x 36 mm
Mass - weight	250 gram
Ambient operating temperature	0 - 50 °C
Storage Temperature	-25 - 60 °C

Common features

Feature set for xiB-64 family

Technology
Sensor technology	CMOS, Global shutter
Bandwidth	64 Gbits - highest in the industry
Acquisition Modes	Continuous, software and hardware trigger, limited fps, triggered exposure and burst, exposure controlled by trigger length
Digital Output	8, 10, 12 bit RAW pixel data digitization
Interface	iPass external PCIe connector Gen3 x8 standard cable connector
General purpose I/O	2x opto-isolated input, 2x opto-isolated output, and 4 non-isolated I/O, 4X user configurable LEDs
Synchronization	Hardware and software trigger input, exposure strobe output, busy output
Lens mount	C-mount or active EF mount with software control for Canon lenses - focus, aperture, iris and image stabilization

Processing
Partial image readout	ROI / AOI (region / area of interest); Skipping and Binning modes supported - model specific
Image processing	Host based de-Bayering; sharpening; Gamma; color matrix; true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction	On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments	Auto white balance; auto gain; auto exposure
Flat field corrections	Host assisted pixel level shading and lens corrections
Signal conditioning	Programmable debouncing time
Latency	Computer CPU is not involved in data transfer, latency from camera to memory is minimal

Software
SDK / API	Programmable with C++ and C#, Python
Software support	one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs	CamTool viewer
Firmware updates	Field firmware update through xiCOP tool

Computer
Operating systems	Windows 10 (x86 and x64), Linux Ubuntu, ARM, until MacOS 10.15 and newer, NVIDIA Jetson modules
Minimum host hardware	Intel i5 3.0GHz, +2GB RAM physical memory, Motherboard with PCIe x8 Gen3

Regulations
Environment side	Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity	CE, FCC, RoHS, GenICam/GenTL, PCI Express External Cabling Specifications compliant

Applications

Fast speed xiB-64 camera utilization Fields and Applications

High speed

Projectile, Explosives, Ballistics, Combustion and Missile Launch Tracking, Vehicle Impact, Airbag Deployment, Safety Restraints Testing.

Particle imaging

Flow visualization and flight, bullet, glass dynamics, Digital image correlation (DIC), Fluidics and Particle Image Velocimetry (PIV), Laser illumination, Schlieren.

Broadcasting

Cinematography, Entertainment, Instant replays for sports imaging - baseball, tennis, football, basketball, golf, ping pong and more. Print and Film scanning.

Aerial mapping

Photogrammetry, Videogrammetry - city street or outdoor 3D mapping and surveying with UAV / UAS drones or autonomous vehicles.

Scientific

Cell sorting, Microfluidics, Neurology, Animal behavior, flight kinematics, walking mechanics, force vector analysis, Fluorescence microscopy.

Quality inspection

Flat panel display (FPD), Printed circuit board (PCB), Photovoltaics, Metrology, Electroluminescence on Solar panels, Semiconductor wafer scanning.

Machine vision

Industrial and Factory Automation, Production line monitoring, Electronics bonding examination, assemblies defect detection, Gauging.
