Products Embedded vision and multi-camera setup - xiX Sony IMX532 HDR mono industrial camera

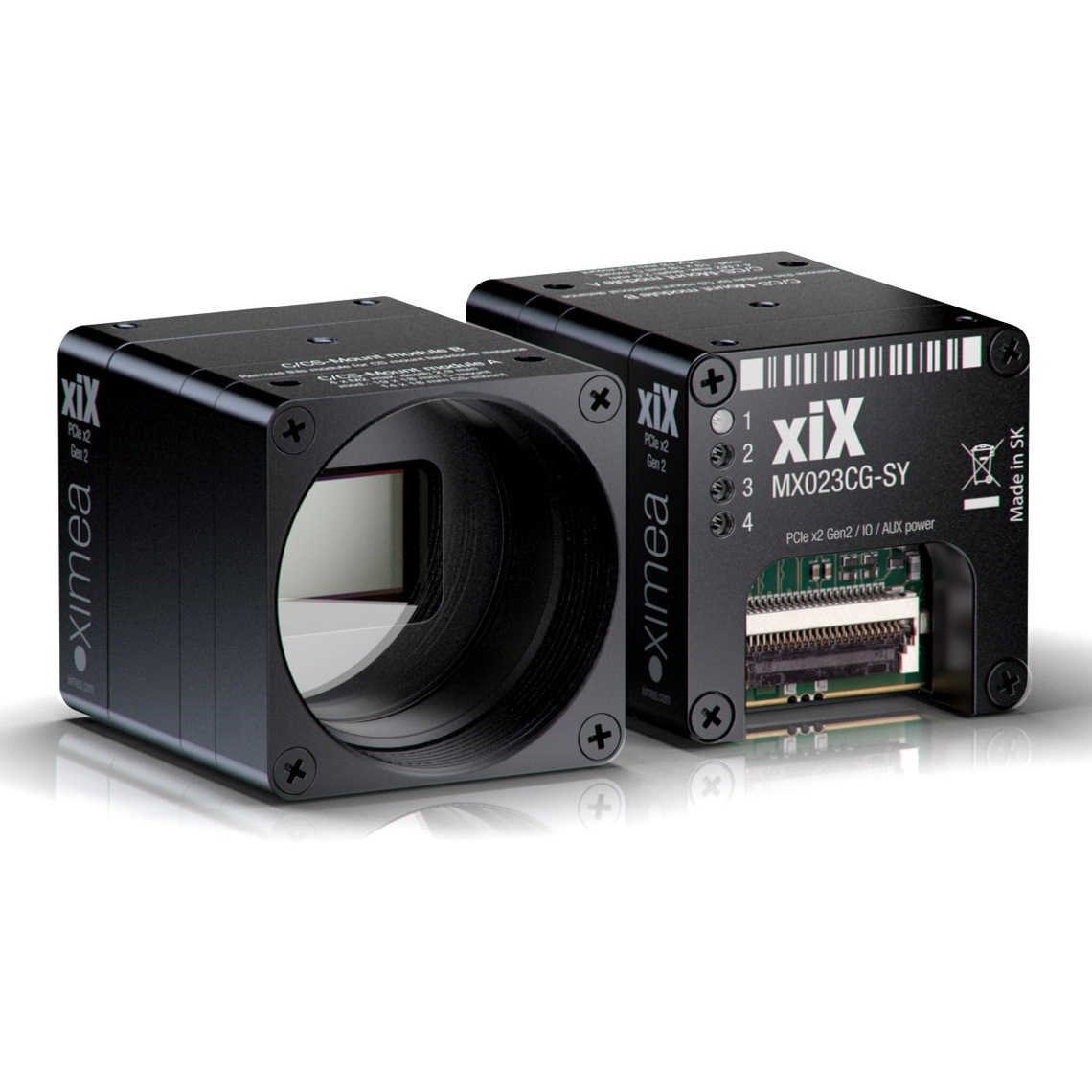

Sony IMX532 HDR mono industrial camera

Sony IMX532 HDR mono industrial camera
MTO - Made to order
  • Small dimensions: 26 x 26 x 31 mm
  • 16.1 MP Monochrome BSI - backside illuminated
  • 45 fps at full resolution
  • Sony CMOS Pregius S™ 4th Generation IMX532 B/W camera
  • With flat ribbon flex cable ideal for Embedded vision systems
  • Additional features like Dual ADC - HDR mode


High resolution camera Applications:

VR an AR, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Dental, Security, Biometrics and more






PCIe Zone


3D / 2D files






Part Number MX161MG-SY-X2G2-Fx-HDR
Resolution 16.1 MP 5320 x 3032
Frame rates 45 Fps (8bit), 38 Fps (10bit), 31 Fps (12bit)
Sensor model Sony Pregius-S IMX532
Chroma Monochrome, B/W
Sensor type CMOS, BSI - Backside illuminated
Sensor size 1.1"
Sensor active area 14.58 x 8.31 mm
Readout method Global Shutter
Pixel size 2.74 x 2.74 μm
Digitization 8, 10, 12 bit
Data interface PCI Express Gen2 (PCIe)
Dynamic range 70 dB
Full Well Capacity 9500 e-
On-chip binning 2x2
Readout noise typ. 2.1 e-
Signal to noise ratio 39.76 dB
Gain range 24 dB
Exposure range 16 µs to 30 s, step 13.66 μs
Power consumption 3.6 Watt
Lens mount C-Mount or CS-mount
Weight 38 grams
Dimensions WxHxD 26 x 26 x 31 mm
