Smallest industrial USB3 camera with 18 Mpix color sensor

Smallest industrial USB3 camera with 18 Mpix color sensor
  • 18 Mpix
  • Mini camera with Ultra small housing (15 x 15 x 13 mm)
  • ON Semiconductor AR1820HS Color CMOS sensor
  • Low power consumption - around 1 Watt
  • GenTL / GenICam supported

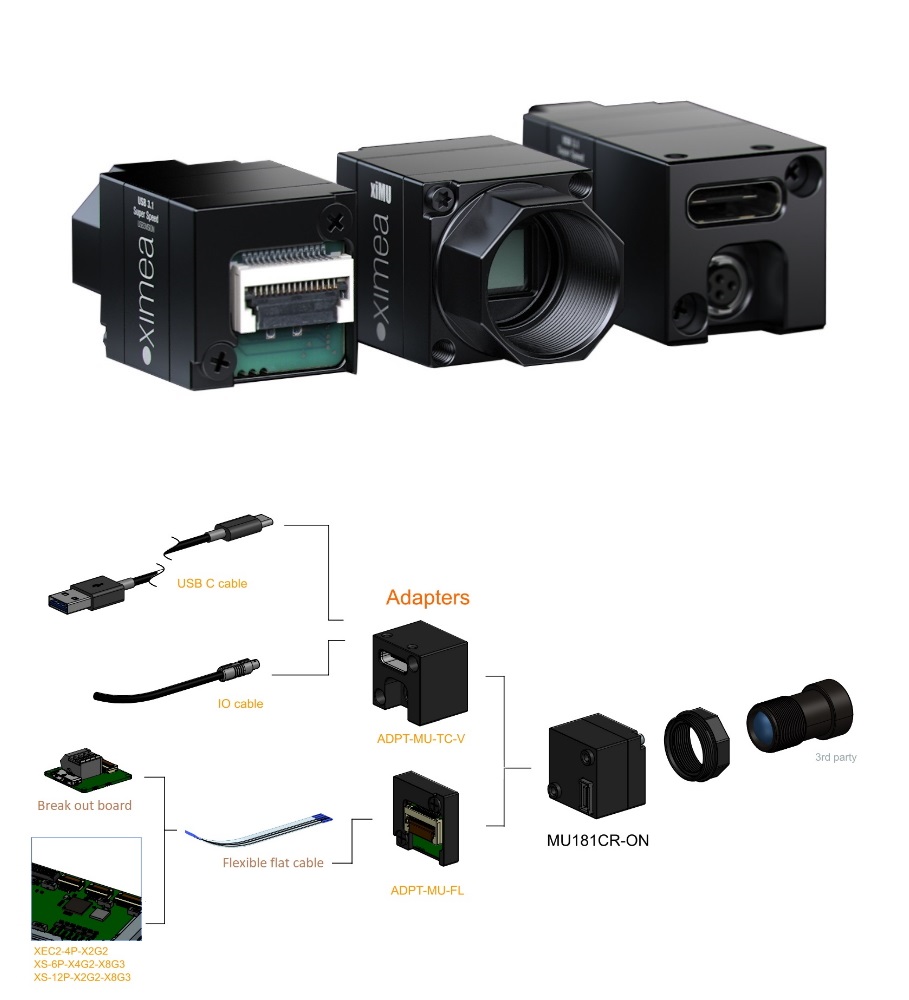

  • Micro Camera with USB Type-C or Flex ribbon connector
  • Able to reach over 20 Fps with USB3



4K camera Applications:

3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics, UAV, Photogrammetry, Surveying, Eye tracking

Brochure



Accessories



Manual



3D STEP



CONTACT SALES


Specifications:
Part Number MU181CR-ON
Resolution 18 MP 4896 x 3680 pixels
Frame rates 22 Fps (8 bit)
Sensor model ON Semiconductor AR1820HS color (Aptina)
Sensor type CMOS RGB Bayer Matrix
Sensor size 1/2.3"
Sensor active area 6.1 x 4.6 (Diagonal 7.6 mm)
Pixel size 1.25 μm
Digitization 8, 10, 12 Bits
Data interface USB3
Dynamic range 57.6 dB
Full Well Capacity 4500 e-
On-chip binning 2x2
Dark current 7.8 e-
Readout noise typ. 6 e-
Signal to noise ratio 36.3 dB
I/O Ports GPIO 3INOUT
Power consumption 1.4 Watt
Lens mount S-mount (M12), optional C-mount adapter
Weight 5 grams (10g with adapter)
Dimensions WxHxD 15 x 15 x 13 mm (25mm with adapter)
Last Updated: 07 June 2023, 00:07
