Sony IMX461 high resolution color BSI camera

Sony IMX461 high resolution color BSI camera
MTO - Make to order status

  • 101 Mpix camera with Sony IMX461 BSI
  • Medium Format, Type 3.4 Color CMOS - Backside illuminated
  • PCIe speed of 20 Gbit/s allows nearly 3 Fps at 16 bit
  • With flat ribbon flex cable ideal for Photogrammetry



Low noise, high resolution, compact camera for:

Photogrammetry, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.

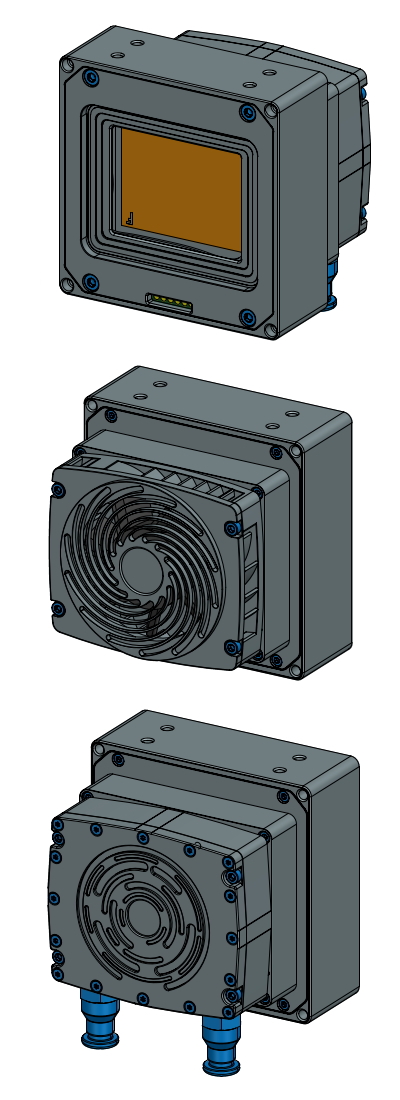

Check conditions for various types of Cooling - Liquid, Air or Heatsink.

Specifications are preliminary and subject to change



Brochure



Accessories page



2D drawing



3D Step



CONTACT SALES




Specifications:
Part Number MX1018CR-SY-X4G3
Resolution 101 MP 11648 x 8542
Frame rates 8.7 Fps at 12 bit, 6 Fps at 14 bit, 2.7 Fps at 16 bit
Sensor model Sony IMX461 AQR-C
Chroma Color RGB
Sensor type CMOS BSI - Backside illuminated
Sensor size Medium Format (Type 3.4 inch)
Sensor active area 43.8 x 32.87 mm (Diagonal 54.76 mm)
Readout method Rolling shutter
Pixel size 3.76 µm
Digitization 16, 14, 12, 11 bit
Data interface PCI Express Gen3 x4 (PCIe)
Dynamic range 80 dB
Full Well Capacity 50 000 e-
On-chip binning 2x2, 3x3
Readout noise typ. 1 e-
Signal to noise ratio 46 dB
Gain range 36 dB
Exposure range 77µs to 12s
I/O Ports 2IN/2OUT
Power consumption 15 Watt
Lens mount M72
Weight 490 grams
Dimensions WxHxD 80 x 80 x 65 mm
Cooling Fan or Water or Heatsink
