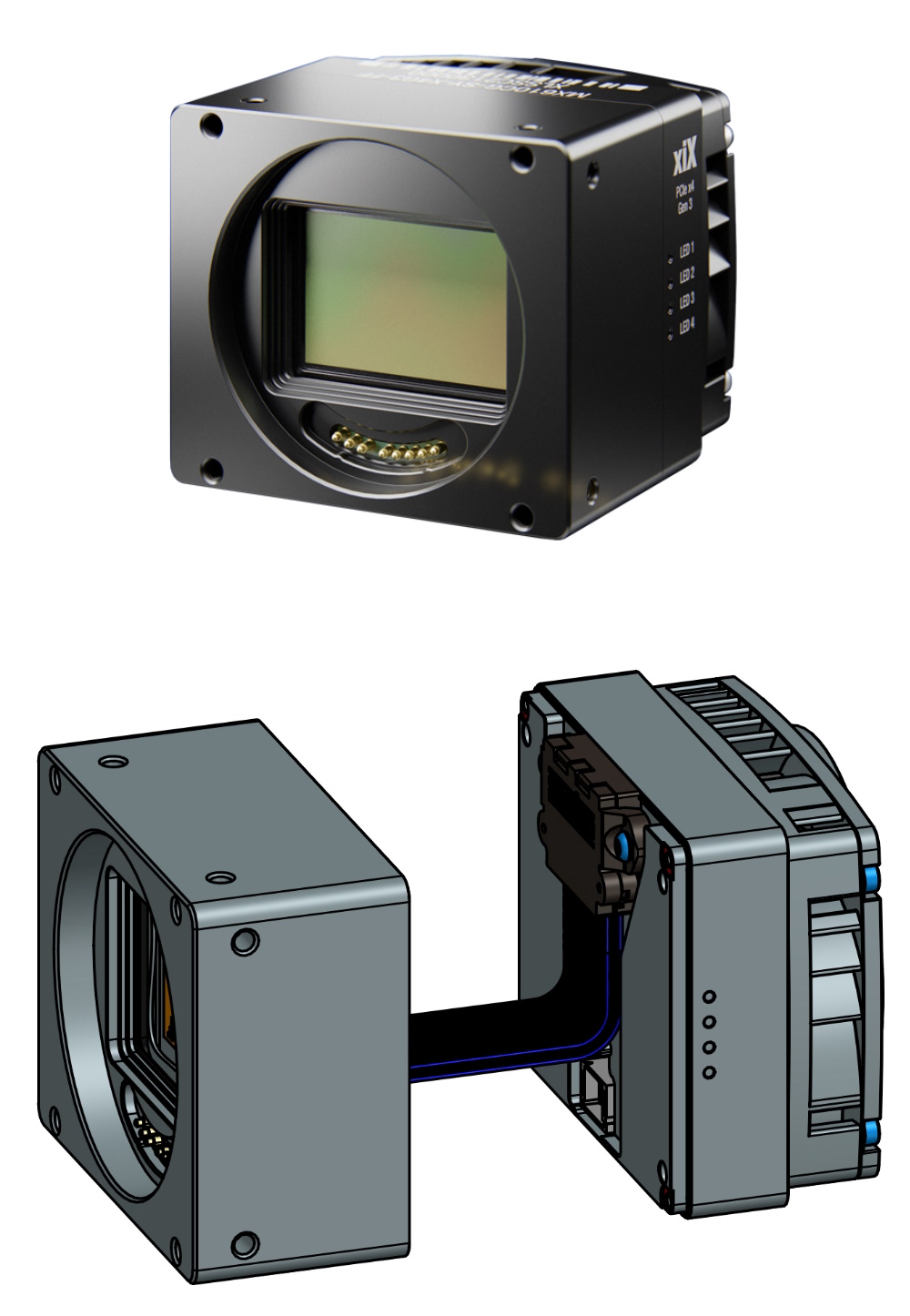

Sony IMX455 color high resolution BSI camera

Sony IMX455 color high resolution BSI camera
COMING SOON

  • 61 Mpix camera with Sony IMX455 BSI
  • Full frame Color CMOS - Backside illuminated
  • PCIe speed of 20 Gbit/s allows nearly 4 Fps at 16 bit
  • With flat ribbon flex cable ideal for Photogrammetry



8K, compact, high resolution camera for: Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, aerial or city mapping.



Check conditions for various types of Cooling - Liquid, Air or Heatsink.

Specifications are preliminary and subject to change

Brochure



Firefly connection



MTP connection



2D drawing



3D Step



CONTACT SALES


Specifications:
Part Number MX610CR-SY-X4G3
Resolution 61 MP 9568 x 6380
Frame rates 17.9 Fps at 12 bit, 10 Fps at 14 bit, 3.9 Fps at 16 bit
Sensor model Sony IMX455 AQK-C
Chroma Color RGB
Sensor type CMOS BSI - Backside illuminated
Sensor size 35mm Full frame
Sensor active area 35.98 x 23.99 mm (Diagonal 43.24 mm)
Readout method Rolling shutter
Pixel size 3.76 µm
Digitization 16, 14, 12, 11 bit
Data interface PCI Express Gen3 x4 (PCIe)
Dynamic range 80 dB
Full Well Capacity 51 000 e-
On-chip binning 2x2, 3x3
Readout noise typ. 1 e-
Signal to noise ratio 46 dB
Gain range 36 dB
Exposure range 86µs to 12s
I/O Ports 2IN/2OUT
Power consumption 15 Watt
Lens mount EF-mount
Weight 345 grams
Dimensions WxHxD 70 x 60 x 65 mm
Cooling Fan or Water or Heatsink
