FOR HIGH VOLUME PROJECTS ONLY

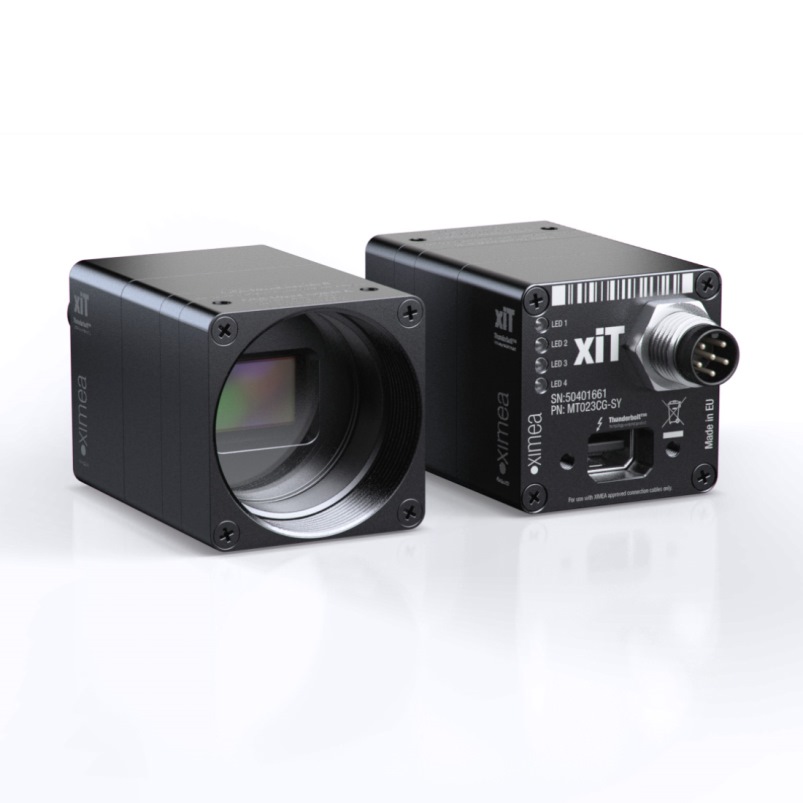

- 2.3 Mpix Color CMOS camera with Sony IMX174
- Thunderbolt™ bandwidth of 10 Gbit/s allows 165 Fps in full resolution
USB3 version of the model available in single unit quantity
Link to Thunderbolt™ certified products:
thunderbolttechnology.net/product/ximea-mt023-industrial-camera
Compact, high speed camera for: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testing, OCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics and aerial or city mapping (UAV).
API/SDK supports Windows 32/64 and Mac OS X.
Brochure
CONTACT SALES
Specifications: | |
| Part Number | MT023CG-SY |
| Resolution | 2.3 MP 1920 x 1200 pixel |
| Frame rates | 165 Fps |
| Sensor model | Sony IMX174 |
| Sensor type | RGB Bayer color |
| Sensor size | 1/1.2" |
| Sensor active area | 11.3 x 7.1 mm (Diagonal 13.3 mm) |
| Spectral range | 64% @450nm, 74% @525nm, 57% @600nm |
| Readout method | Global shutter |
| Pixel size | 5.86 µm |
| Digitization | 10 and 12 Bits |
| Data interface | Thunderbolt 10 Gbits |
| Dynamic range | 73 dB |
| Full Well Capacity | 30 500 e- |
| Readout noise typ. | < 7e- |
| Signal to noise ratio | 45 dB |
| Gain range | 0 … 24dB analog, 24 … 48dB analog + digital |
| Exposure range | 39 µs - 3.6 sec |
| I/O Ports | 1x input, 1x optput |
| Power consumption | 4.5 Watt |
| Lens mount | C and CS - mount |
| Weight | 46 grams |
| Dimensions WxHxD | 26 x 26 x 38 mm |
| Operating temperature | 0° … 50°C, RH 20% … 80% non condensing |
| Storage environment | -30° … 60°C, RH 20% … 90% non condesing |
